Vericom V-Sense Series User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
The Vericom V-Sense
TM
combination of sensor instrumentation and analysis software that offers significant flexibility for testing
nearly any moving object or vibration application. If you can find a way to attach the V-Sense POD to the
test object, you can quickly and easily collect the targeted data (for many applications, the heavy-duty
vacuum cup mounting system provided with the package is the perfect option for mounting the sensor
unit). The test files are then analyzed with the Vericom Profile X1 analysis software. Vericom Profile X1
is also very easy to use – yet very sophisticated and powerful. Optionally, you can elect to add up to 12
external analog sensors to the V-Sense POD for collection of a wide variety of data from almost any low
voltage analog sensor (0-5v).
What's Included
:
•
Wall Charger/Power Supply
•
12V DC Charger (Automobile)
•
Heavy Duty Vacuum Cup Mount
The V-Sense User Guide is at Vericom
Website, on the USB Drive, or found on
Profile X1 under the Tools menu screen.
V-Sense POD LED Panel – Power ON/OFF, Battery, Connected:
Press and hold the power button
the LED panel will illuminate when power is 'on.' The 4 LED lights on the right side of the LED panel
indicate the battery level of the V-Sense POD.
Connect a V-Sense POD to the Tablet or PC with wireless Bluetooth: The tablet is preloaded with the
Vericom V-Sense Director application. It is also preconfigured to connect to the V-Sense POD included
within the case. While 1 tablet can be configured to connect to multiple V-Sense PODs, it is recommended
that the tablet and POD that shipped together are repacked in the same case. To connect the tablet/PC
to the V-Sense POD with the Bluetooth, power on the POD and then open the Tools screen on the Vericom
V-Sense Director app (tablet) or Profile X1 (PC). From the drop-down box, select the POD for the
connection. Then click the 'Connect' button. Once the POD is connected, the connection box will show a
green check mark and the connect button will become a 'Disconnect' button.

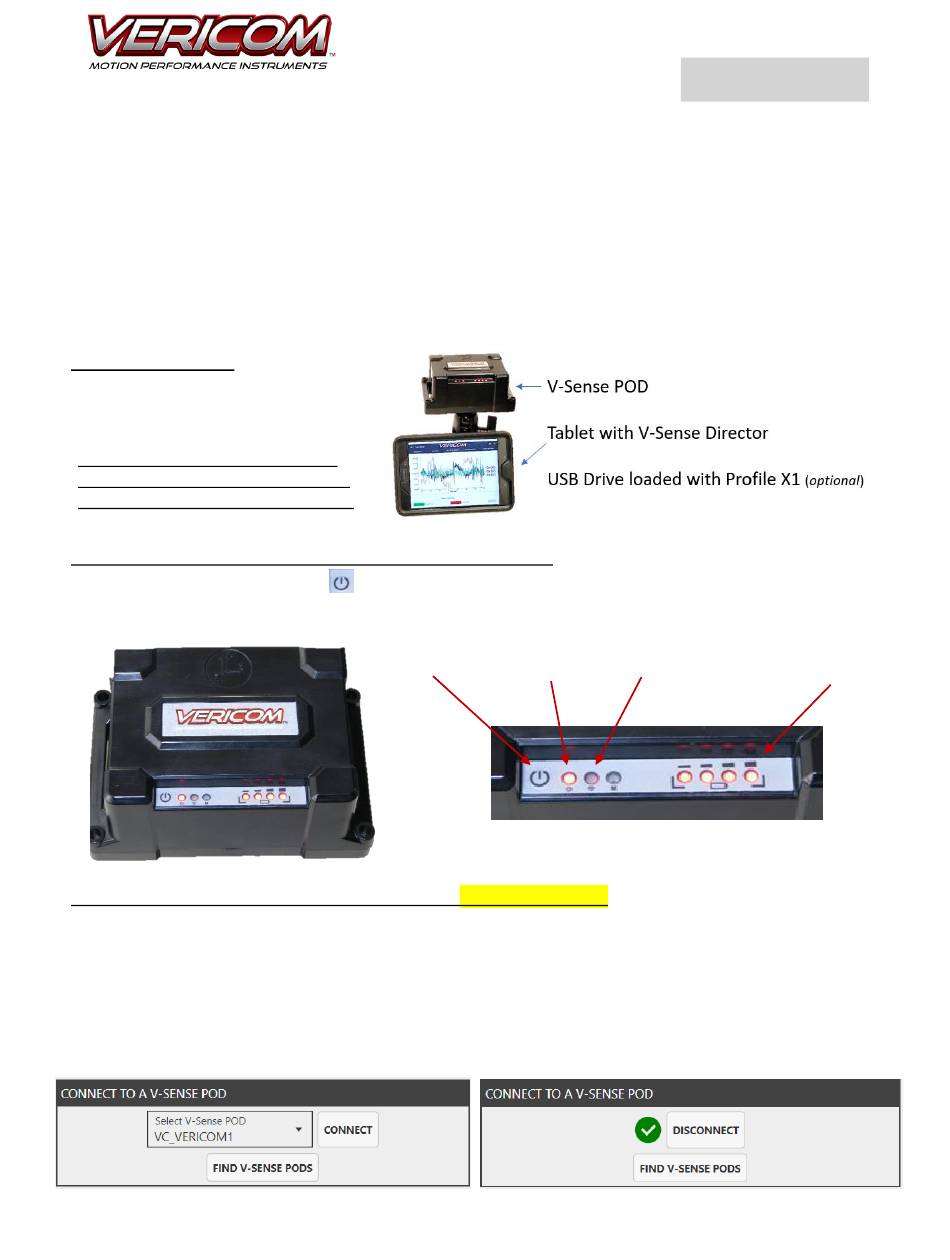

V-Sense
series of data acquisition instruments and Profile X1
(hold for ~3 seconds to power on or off). The light on the far left of
Power Button V-Sense is ON V-Sense Connected Light V-Sense POD Battery Level
Series + Profile X1
TM

User Guide

©
©
analysis software is a

Advertisement

loading
Need help?

Need help?

Do you have a question about the V-Sense Series and is the answer not in the manual?

Questions and answers

Related Manuals for Vericom V-Sense Series

Summary of Contents for Vericom V-Sense Series

  • Page 1: User Guide

    POD that shipped together are repacked in the same case. To connect the tablet/PC to the V-Sense POD with the Bluetooth, power on the POD and then open the Tools screen on the Vericom V-Sense Director app (tablet) or Profile X1 (PC). From the drop-down box, select the POD for the connection.
  • Page 2 V-Sense Series + Profile X1 © User Guide Connect a V-Sense POD to a PC: To connect a V-Sense POD to a PC with the USB cable, connect the cable and power the POD. When the POD is on and connected with the USB cable, Profile will automatically connect.

  • Page 3: File Setup

    V-Sense Series + Profile X1 © User Guide The Start Testing view includes common Sensor Setup options and is the screen from where all testing is initiated. This screen includes the ‘Send Test Setup’ button – which is used to send the test instructions to the V-Sense POD.

  • Page 4: Sensor Setup

    V-Sense Series + Profile X1 © User Guide Sensor Setup The Sensor Setup screen is where you define the sensors that are ‘ON/OFF’ for each specific test. In addition, this is where the Start/Stop Triggers and Alarms are defined. The Sensor Setup area is also used to identify the sensor data you want to view on the testing screen while a test is in progress (using the Monitored Sensors tab).
  • Page 5 V-Sense Series + Profile X1 © User Guide to load to your PC if the sample rate is set to 1000Hz. If you do have a large test file, it is recommended that you do NOT load the test file to the tablet for review with the V-Sense Director app (the computational processor on the tablet cannot efficiently handle the larger files).
  • Page 6 POD is mounted on the test object. In addition, as an example, the TRUE ZERO for all Vericom V-Sense POD is the flat surface located in the Vericom test facility used as the calibration surface. It is on that surface that every V-Sense POD is calibrated after the POD is fully assembled and ready for shipment to our customers.
  • Page 7 V-Sense Series + Profile X1 © User Guide Start/Stop Triggers: To set a Start/Stop trigger click the drop-down box and select from the options provided. If a sensor is used as a start/stop trigger, you will need to define from which direction the trigger is to be activated.
  • Page 8 V-Sense Series + Profile X1 © User Guide Monitored Sensors: The Monitored Sensors view provides a list of sensors that can be selected for viewing on the screen of the tablet/PC in ‘near-real-time’ as the test is in progress. Select a sensor data element and use the arrows to add/remove the sensor from the Monitored Sensors box.

  • Page 9: Test Analysis

    When using Profile for newly created tests, the test file must first be imported from the V-Sense POD to a computer that is running Vericom Profile X1. Connect a V-Sense POD via the USB cable or with the Bluetooth connection feature. Note: loading files is much faster using the USB cable. Once a V-Sense POD is connected, click the ‘V-Sense POD Tests’...
  • Page 10 V-Sense Series + Profile X1 © User Guide Graph View: Open a test file for analysis and the view will first show a graph of the Gx, Gy, and Gz data. The basic graph tools from the graph view include adding a Data Cursor and/or Average Cursors to the graph.
  • Page 11 V-Sense Series + Profile X1 © User Guide Sort data of a column from maximum-to- minimum or minimum-to-maximum by clicking on the top of the column for the intended data series. The rest of the data table will sort to align with the ‘sorted’ column.
  • Page 12 V-Sense Series + Profile X1 © User Guide Display Settings: The Display Settings view provides tools to edit the basics of data displayed on the graph. The ability to change the units between Imperial/Metric, adjust the acceleration units from Gs to distance/time, as well as adding a Title and editing the font size of the graph legend.
  • Page 13 V-Sense Series + Profile X1 © User Guide Map: To view the test data on a map of the test location, simply click on the Map tab. The map will show the start/stop of the test (Green Flag / Red Flag), the average cursors (shown as the + sign), and the data cursor (shown as the circle with center target).
  • Page 14 V-Sense Series + Profile X1 © User Guide Active Test View: After the File Setup and Sensor Setup are defined for a test, start the test from the Start Testing screen. Review the basic test setup information as shown on the Start Testing screen to verify the setup is correct.

This manual is also suitable for:

Profile x1
