- Page 1 IMPORTANT MANUAL Do Not Throw Away Save These Instructions Wardrobe valet Owners Manual Models CW-100- CW-200 Closet Conveyor WARNING: Read this Manual and follow all Warnings and Safety Instructions. Failure to do so can result in Injury.
- Page 2 YOUR WARDROBE VALET CONVEYOR DOES NOT HAVE ANY USER SERVICEABLE PARTS. YOUR WARDROBE VALET CONVEYOR SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL. For help with your conveyor, please call White Conveyors, Inc., Field Service Department toll-free, at: 1-800-524-0273...
-
Page 3: Table Of Contents
TABLE OF CONTENTS DESCRIPTION PAGE Important Safety Instructions Product Specifications Installation Instructions 8-17 Operation Instructions Troubleshooting Limited Warranty Contact Information ETL Certification FCC Certification and Guidelines... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING YOUR WARDROBE VALET CONVEYOR SAVE THESE INSTRUCTIONS Your Wardrobe valet Conveyor can be used as household appliance. Read this manual carefully. Be thoroughly familiar with the controls and the proper use of Wardrobe valet Conveyor. - Page 5 Do Not obstruct Conveyor chain movement. Do Not touch any Wardrobe valet Conveyor parts when conveyor is moving. Do Not allow anyone to hang or climb on Wardrobe valet Conveyor chain. Keep fingers out of the “pinch point” areas; the distance between sprocket and chain is necessary small, and the rollers riding over the tube.
- Page 6 GROUNDING INSTRUCTIONS Your Wardrobe valet Conveyor must be grounded. In the event of malfunction or breakdown, grounding provides a path of least resistance for electronic current to reduce the risk of electric shock. Your Wardrobe valet Conveyor is equipped with cord having an equipment grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
-
Page 7: Product Specifications
Overal Capacity Lengt Width Product 1-Tier Empty w/Garmen with Shipping Number Lengt (Ft.) garme Weigh CW-100 10 feet 4 Ft 6.00 4 Ft. CW-120 12 feet 6 Ft 8.00 4 FT. CW-140 14 feet 7 Ft 9.00 4 FT. CW-160... -
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS 1.) Open and inspect the package upon arrival The package should include the following components: • Conveyor with motor and chain frames assembled. • 2 legs • Leg clips • Plastic strip to cover holes in legs... - Page 9 2.) Carefully remove the conveyor from the packaging. This operation would normally be performed by two persons. CAUTION :. The conveyor is heavy and the machine is heavier on the sprocket side 3.) Remove the legs from the packaging. Also strip the plastic covering off the package.
- Page 10 4.) Stand up the legs and insert the top section in the bottom section. Insert the locking pins in both legs. Once the legs are positioned this will be released to raise the conveyor. 5.) Position the conveyor to be able to mount the legs.
- Page 11 Example of the proper positioning of the leg in the upper assembly and proper pin placement Side view of pin placement in the upper assembly.
- Page 12 Example: This is the lower view of the drive sprocket. 6. Conveyor should then be lifted by two men and both legs should be positioned and secured. WARNING: Conveyor must be installed so the distance from floor to the lowest point of conveyor chain must be 6 Ft or greater.
- Page 13 Example: View of the wheel and chain assembly on the conveyor. Example: Proper hanging position of the drop rods.
- Page 14 Example: Left Side view of proper locking pin placement Example: Right side view of proper locking pin placement Example: View of rear sway brace for machine. Should be positioned against the wall and secured with a lag screw.
- Page 15 View of drop rods being attached to the Wardrobe valet Attachment of lower garment rods...
-
Page 16: Operation Instructions

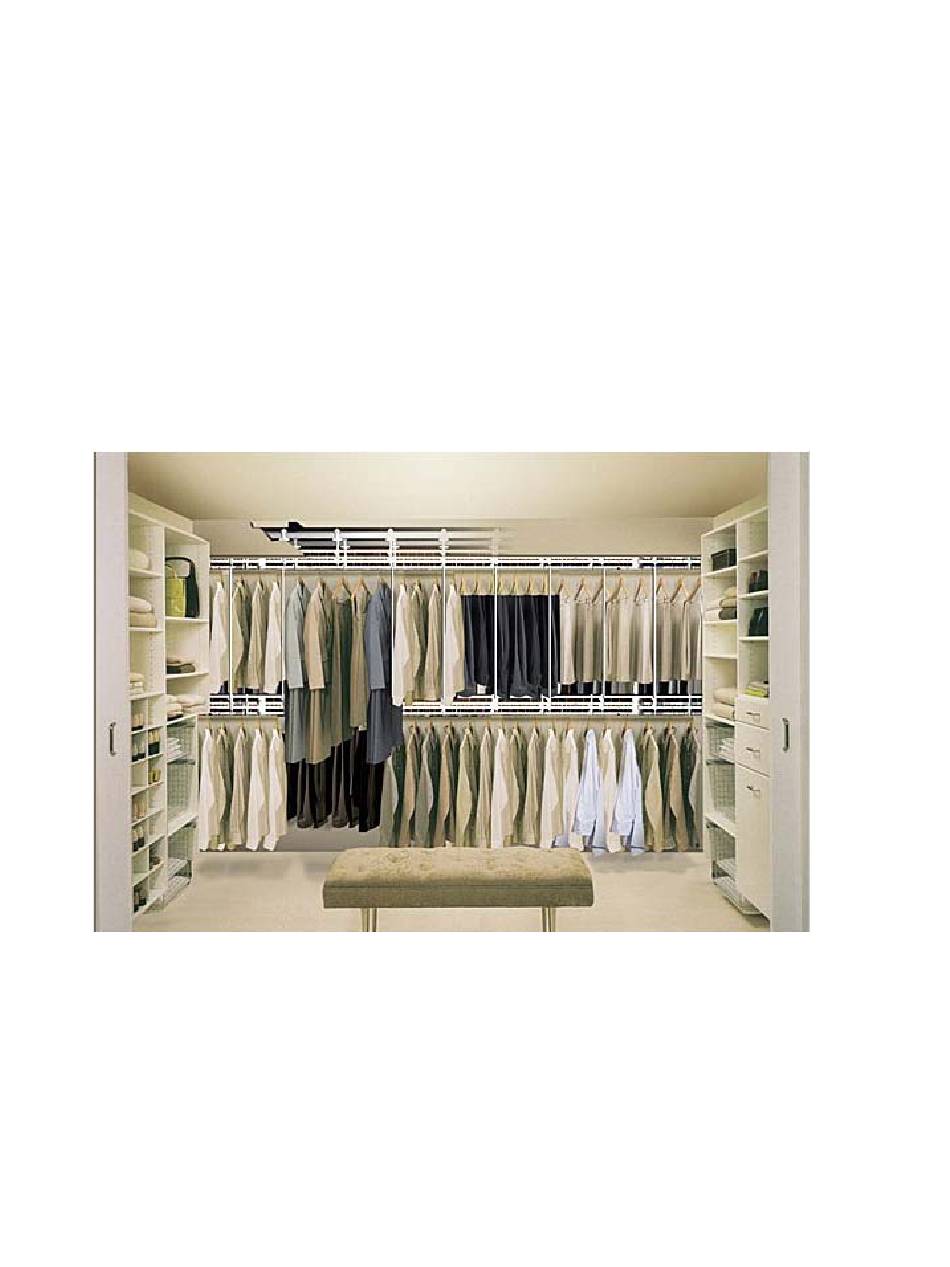

Finished conveyor OPERATION INSTRUCTIONS WARNING: Carefully review Important Safety Instructions in this Manual before operating your Wardrobe valet closet conveyor. To move conveyor chain, press the right hand button on your wireless control and the conveyor will rotate to the right. To stop release the button. To move the conveyor in the left direction, press and hold the left button. -
Page 17: Troubleshooting
TROUBLESHOOTING YOUR WARDROBE VALET CONVEYOR DOES NOT HAVE ANY USER SERVICEABLE PARTS. YOUR WARDROBE VALET CONVEYOR SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL If you Wardrobe valet Conveyor chain does not move: Make sure that conveyor chain and sprocket are not jammed by foreign objects. Make sure that there is power in your grounded outlet box Make sure that conveyor electrical grounded plug is connected to grounded outlet box. -
Page 18: Limited Warranty
WCI and customer. Contact Information Wardrobe valet c/o White Conveyors Inc. 10 Boright Avenue Kenilworth, NJ 07033 908-686-5700 1-800- info@wardrobevalet.com... - Page 20 FCC Guidelines Changes or modifications not expressly approved by White Conveyors, Inc. could void the user's authority to operate the equipment. This product has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules.
