Summary of Contents for BCP SKY4313

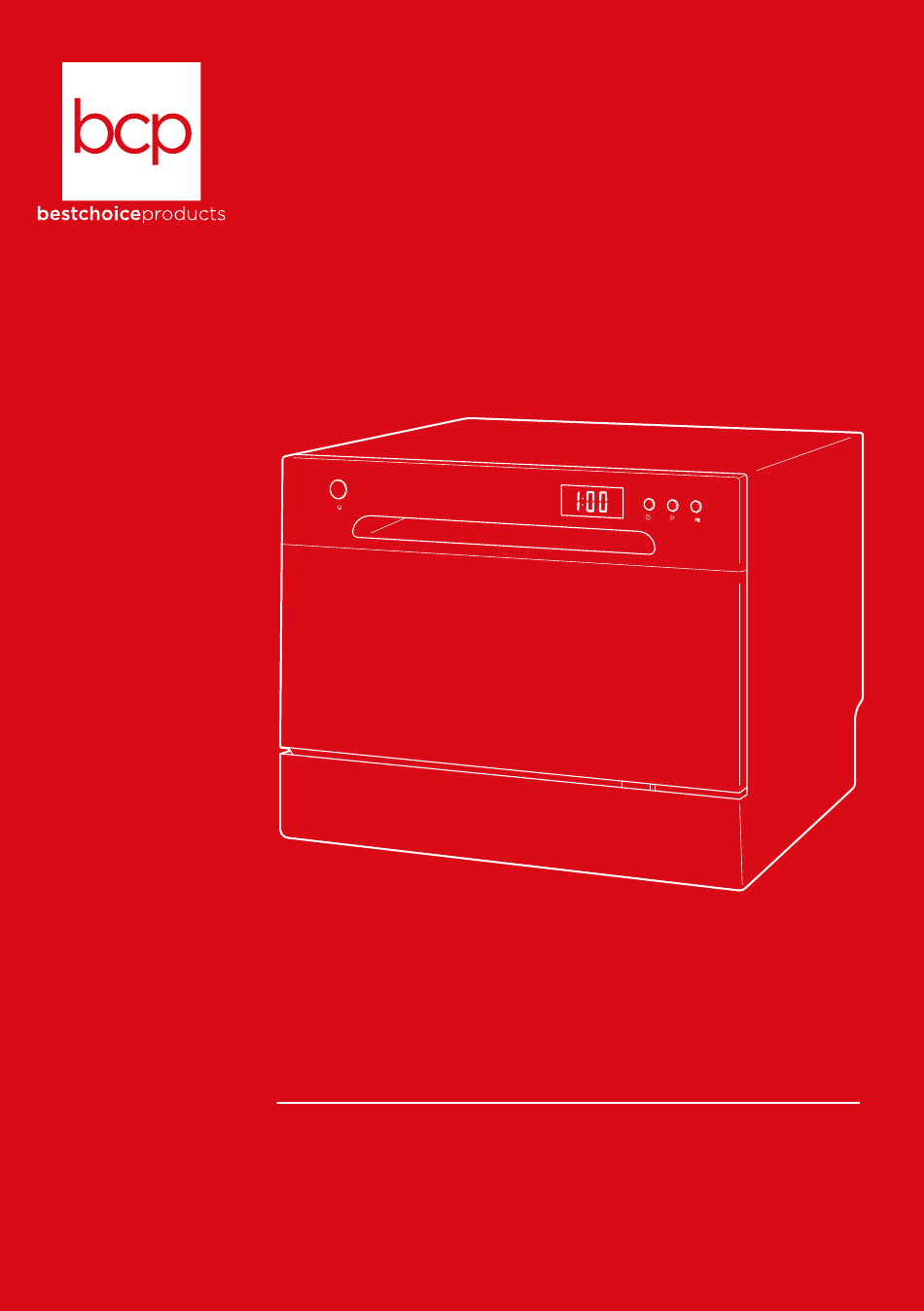

- Page 1 INSTRUCTION MANUAL Stainless Steel Compact Dishwasher SKY4313 Ver. 2...
- Page 2 Thank you for choosing us! Since 2002, Best Choice Products has been bringing customers high-quality products at the absolute lowest price. With everything ranging from instruments and toys to furniture and outdoor, we’ve got your everyday living essentials covered. We’re centered around a customer-first philosophy –...
-
Page 3: Usage Tips
NOTICE Please retain these instructions for future reference. • Do not allow children to operate this appliance. Keep appliance out of reach of children. • Close supervision is necessary when appliance is used near children. • Place on a stable and level surface. •... -
Page 4: Specifications
SPECIFICATIONS Min. Inlet Water Pressure 6 psi Max. Inlet Water Pressure 145 psi DIAGRAM UTENSIL BASKET CUP SHELF RACK SPRAY ARMS DETERGENT RINSE AID DISPENSER DESPENSER FILTER ASSEMBLY DRAIN OUTLET INLET POWER CORD... -
Page 5: Control Panel Diagram
CONTROL PANEL DIAGRAM POWER CONTROL PANEL START/PAUSE DELAY: WASHING PROGRAM: Delay start of washing Cycle through di erent program from 1 to 24 hours washing programs WASHING PROGRAMS (See page 11) PROGRAM ENDING RINSE AID INDICATOR: INDICATOR Turns on to indicate rinse aid level is low ACCESSORIES WATER INLET HOSE... -
Page 6: Installing Dishwasher
INSTALLING DISHWASHER Place the dishwasher on a stable and level surface near a wall outlet and water supply tap with drain (e.g. a kitchen sink). Screw the faucet adaptor onto the water supply tap. Make sure there are no leaks. - Page 7 INSTALLING DISHWASHER Connect the six-sided connection of the drain hose to the drain outlet on the back of the dishwasher. Do not over-tighten. Connect the star-shaped connection of the inlet hose to the inlet on the back of the dishwasher. Do not over-tighten.
- Page 8 INSTALLING DISHWASHER Connect the drain hose and inlet hose to the corresponding connection points on the quick connect adaptor. Attach the quick connect adaptor to the faucet adaptor. Pull down the locking collar, press the quick connect into the faucet adaptor, then release to lock. Make sure there are no leaks. NOTE: Water will drain periodically throughout the washing program.
-
Page 9: Adding Detergent
ADDING DETERGENT Open the detergent dispenser to reveal two detergent compartments. Deposit dishwasher detergent in the appropriate compartment, then close the lid. NOTE: For most loads, 1 tablespoon of detergent is adequate. LEFT COMPARTMENT (Capacity: 0.5 ounce) RIGHT COMPARTMENT (Capacity: 1 ounce) ADDING RINSE AID (OPTIONAL) Twist the cap counterclockwise to open. - Page 10 DISH LOADING TIPS • Scrape o leftover food before loading in dishwasher. • Load items such as cups, glasses, pots/pans, etc. face down. • Curved items, or those with recesses, should be loaded at a slant so water can run o . •...
- Page 11 SETTINGS PROGRAM DESCRIPTION SPECIFICATIONS DETERGENT TIME RINSE AID Pre-wash (2), For heavy Wash (2), 0.6 oz. 100 min. Rinse (2), soiled loads HEAVY Pre-wash (2), Wash, For normally 0.6 oz. 110min. Rinse (2), soiled loads NORMAL Pre-wash (2), For lightly Wash, 0.6 oz.
-
Page 12: Maintenance
MAINTENANCE Filter Assembly: COARSE FILTER FINE FILTER MAIN FILTER • Once a week, remove and clean the filter assembly. - Twist counterclockwise to remove the filter assembly. - Use a brush to remove food remnants and items caught in filters, then rinse with water. - Reinsert filter assembly and twist clockwise to lock in place. -
Page 13: Troubleshooting
TROUBLESHOOTING PROBLEM REASON SOLUTION Not properly plugged in Make sure properly plugged in Blown fuse/tripped Dishwasher not starting Replace fuse, reset circuit breaker circuit breaker Door not properly closed Fully close door Drain hose kinked Straighten drain hose Water not pumped Filter blocked Clean inlet from dishwasher... - Page 14 Earn points while you shop. Join today! Give your friends 15% o their first order! For each successful referral you’ll receive 100 points. bestchoiceproducts.com...
- Page 15 Check out more great products: bestchoiceproducts.com...
-
Page 16: Help Center
HELP CENTER Question about your product? We're here to help. Visit us at: help.bestchoiceproducts.com CHAT Chat Support Product Inquiry Orders FAQ Product Assembly Returns & Refunds PRODUCT WARRANTY INFORMATION All items can be returned for any reason within 60 days of the receipt and will receive a full refund as long as the item is returned in its original product packaging and all accessories from its original shipment are included.
