400, du Parc, Saint-Eustache, Québec Canada, J7R 0A1
Tel:
+1.450.491.5671
Fax:
+1.450.491.3788
Table of Content
Loading and Photometric Information Summary..................................................................................................................2
Loading................................................................................................................................................ 3
Refer to the wiring configuration that suits your project
Twisted Pair Extension......................................................................................................................................................3
BX Extension...................................................................................................................................................................... 5
Straight Pair Extension.................................................................................................................................................... 7
Single Wire Loop................................................................................................................................................................9
Single Wire Loop with Return.......................................................................................................................................11
Twisted Pair with Single Wire Loop..............................................................................................................................13
Twisted Pair with Single Wire Loop With Return......................................................................................................15
Installation....................................................................................................................................... 20
Installation Instructions.................................................................................................................................................20
Beam Orientation.......................................................................................................................................21
Location Definitions....................................................................................................................................................... 21
Power Supply Electrical Connection in Dry or Damp Locations..............................................................................22
Power Supply Electrical Connection in Wet Locations.............................................................................................23
On-Site Installation.........................................................................................................................................................24
Warnings....................................................................................................................................................................................... 25
Contact us.....................................................................................................................................................................................25
+1.800.665.1166
www.heicolighting.com
Polyoptik
Technical Bulletin #34
Polyoptik
TM

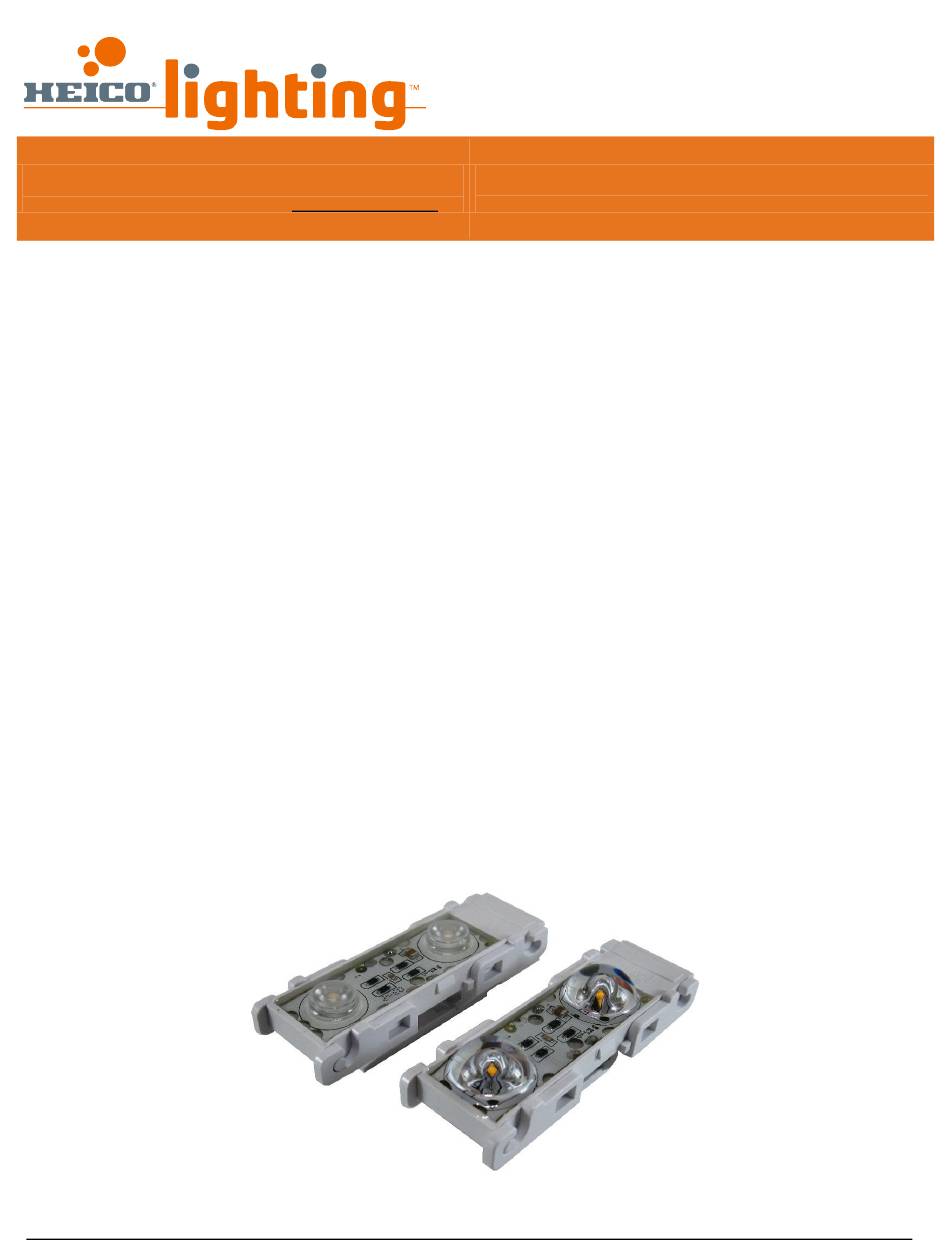

Architectural Lighting Applications Installation Guide
TM
1/25
Advertisement
Table of Contents
Summary of Contents for HEICO lighting Polyoptik
-
Page 1: Table Of Contents
Polyoptik 400, du Parc, Saint-Eustache, Québec Canada, J7R 0A1 Technical Bulletin #34 Tel: +1.450.491.5671 +1.800.665.1166 Polyoptik Architectural Lighting Applications Installation Guide Fax: +1.450.491.3788 www.heicolighting.com Table of Content Loading and Photometric Information Summary……………………………………………………………………………………………………2 Loading……………………………………………………………………………………………………………………………… 3 Refer to the wiring configuration that suits your project Twisted Pair Extension……………………………………………………………………………………………………………………………………3... -
Page 2: Loading And Photometric Information Summary
* All values are for the maximum allowable number of modules per foot ** Photometric data is subject to change, LM-79 data and IES files are available for 3500K modules. Specifications are subject to change without notice. (Technical bulletin #34) © HEICO lighting 2013 – All rights reserved. Made in Canada. 2/25... -
Page 3: Twisted Pair Extension
Example (target distance of 88 feet with LMPS-750) (88 – 75) (0.69 – 0.73) Target Distance factor = + 0.73 = 0.71 (100 – 75) Specifications are subject to change without notice. (Technical bulletin #34) © HEICO lighting 2013 – All rights reserved. Made in Canada. 3/25... - Page 4 All calculations are theoretical. Measurements made on the real life installations can differ from the calculations. EXAMPLE Modules : 95 Polyoptik 20˚X20˚ 3000K & 20 Polyoptik 180˚X180˚ 3500K Power supply : LMPS-750 (75W) Twisted pair extension : 50 ft Distance factor at 50 ft: 0.77...
-
Page 5: Bx Extension
Example (target distance of 88 feet with LMPS-750) (88 – 75) (0.63 – 0.69) Target Distance factor = + 0.69 = 0.66 (100 – 75) Specifications are subject to change without notice. (Technical bulletin #34) © HEICO lighting 2013 – All rights reserved. Made in Canada. 5/25... - Page 6 All calculations are theoretical. Measurements made on the real life installations can differ from the calculations. EXAMPLE Modules : 95 Polyoptik 20˚X20˚ 3000K & 20 Polyoptik 180˚X180˚ 3500K Power supply : LMPS-750 (75W) BX extension : 50 ft Distance factor at 50 ft: 0.73...
-
Page 7: Straight Pair Extension
Example (target distance of 88 feet with LMPS-750, 14 AWG) (88 – 75) (0.54 – 0.61) Target Distance factor = + 0.69 = 0.65 (100 – 75) Specifications are subject to change without notice. (Technical bulletin #34) © HEICO lighting 2013 – All rights reserved. Made in Canada. 7/25... - Page 8 All calculations are theoretical. Measurements made on the real life installations can differ from the calculations. EXAMPLE Modules : 95 Polyoptik 20˚X20˚ 3000K & 20 Polyoptik 180˚X180˚ 3500K Power supply : LMPS-750 (75W) Twisted pair extension : 50 ft Distance factor at 50 ft: 0.69...
-
Page 9: Single Wire Loop
Example (target distance of 88 feet with LMPS-750, 14 AWG) (88 – 75) (0.32 – 0.65) Target distance factor = + 0.65 = 0.48 (100 – 75) Specifications are subject to change without notice. (Technical bulletin #34) © HEICO lighting 2013 – All rights reserved. Made in Canada. 9/25... - Page 10 All calculations are theoretical. Measurements made on the real life installation can differ from the calculations. EXAMPLE Modules : 95 Polyoptik 20˚X20˚ 3000K & 20 Polyoptik 180˚X180˚ 3500K Power supply : LMPS-750 (75W) Twisted pair extension : 50 ft...
-
Page 11: Single Wire Loop With Return
Example (target distance = 88 feet) (88 – 75) (0.65 – 0.73) Target Distance factor = + 0.73 = 0.69 (100 – 75) Specifications are subject to change without notice. (Technical bulletin #34) © HEICO lighting 2013 – All rights reserved. Made in Canada. 11/25... - Page 12 All calculations are theoretical. Measurements made on the real life installations can differ from the calculations. EXAMPLE Modules : 95 Polyoptik 20˚X20˚ 3000K & 20 Polyoptik 180˚X180˚ 3500K Power supply : LMPS-750 (75W) Twisted pair extension : 50 ft Distance factor at 50 ft: 0.77...
-
Page 13: Twisted Pair With Single Wire Loop
Example (target distance of 88 feet with LMPS-750) (30 – 25) (0.50 – 0.69) Target Distance factor = + 0.69 = 0.65 (50 – 25) Specifications are subject to change without notice. (Technical bulletin #34) © HEICO lighting 2013 – All rights reserved. Made in Canada. 13/25... - Page 14 All calculations are theoretical. Measurements made on the real life installations can differ from the calculations. EXAMPLE Modules : 95 Polyoptik 20˚X20˚ 3000K & 20 Polyoptik 180˚X180˚ 3500K Power supply : LMPS-750 (75W) Twisted pair extension : 50 ft ; Single wire loop: 50 ft Distance factor : 0.50...
-
Page 15: Twisted Pair With Single Wire Loop With Return
Example (target distance = 88 feet) (88 – 75) (0.42 – 0.54) Target Distance factor = + 0.54 = 0.48 (100 – 75) Specifications are subject to change without notice. (Technical bulletin #34) © HEICO lighting 2013 – All rights reserved. Made in Canada. 15/25... - Page 16 All calculations are theoretical. Measurements made on the real life installations can differ from the calculations. EXAMPLE Modules : 95 Polyoptik 20˚X20˚ 3000K & 20 Polyoptik 180˚X180˚ 3500K Power supply : LMPS-750 (75W) Twisted pair extension : 50 ft Distance factor at 50 ft: 0.65...
- Page 17 Polyoptik Architectural Lighting Applications Installation Guide HEICO lighting Contactless LED System Figure 8.1: LMPS-350 system power consumption Specifications are subject to change without notice. (Technical bulletin #34) © HEICO lighting 2013 – All rights reserved. Made in Canada. 17/25...
- Page 18 Polyoptik Architectural Lighting Applications Installation Guide HEICO lighting Contactless LED System Figure 8.2: LMPS-750 system power consumption Specifications are subject to change without notice. (Technical bulletin #34) © HEICO lighting 2013 – All rights reserved. Made in Canada. 18/25...
- Page 19 Architectural Lighting Applications Installation Guide HEICO lighting Contactless LED System Figure 9.1: LMPS system efficiency Figure 9.2: LMPS system efficiency Specifications are subject to change without notice. (Technical bulletin #34) © HEICO lighting 2013 – All rights reserved. Made in Canada. 19/25...
-
Page 20: Installation
7. Due to maximum voltage limitations for Class 2 circuits in wet locations, only the LMPS-350 can be used if the modules are installed in a wet location. 8. HEICO lighting™ luminaires cannot be in contact with water, ice or snow in a manner that would not respect the limits of Ingress Protection IP67. -
Page 21: Polyoptik Tm Beam Orientation
Conductors exposed to direct sunlight shall bear the mark “SUN RESISTANT”, “SR”, or similar or be listed as being sun resistant if they don’t bear such marking. Specifications are subject to change without notice. (Technical bulletin #34) © HEICO lighting 2013 – All rights reserved. Made in Canada. 21/25... -
Page 22: Power Supply Electrical Connection In Dry Or Damp Locations
Figure 11: Electrical connections for installation in dry and damp locations (twisted pair extension and LMPS-350 shown, others are similar) Specifications are subject to change without notice. (Technical bulletin #34) © HEICO lighting 2013 – All rights reserved. Made in Canada. 22/25... -
Page 23: Power Supply Electrical Connection In Wet Locations
Figure 12: Electrical connections for installation in wet locations (twisted pair extension and LMPS-350 shown, others are similar) Specifications are subject to change without notice. (Technical bulletin #34) © HEICO lighting 2013 – All rights reserved. Made in Canada. 23/25... -
Page 24: On-Site Installation
5. All sections on the same power supply shall be wired in series (figure 13). 6. Refer to technical bulletin #5 for troubleshooting details. Figure 13: Typical installation Specifications are subject to change without notice. (Technical bulletin #34) © HEICO lighting 2013 – All rights reserved. Made in Canada. 24/25... -
Page 25: Warnings
The modules installed in the same area should have the same bin letter. For other LED colors, configurations and general information about layouts please contact HEICO lighting Refer to the product sheet for more information about the LMPS-350, LMPS-DC350, LMPS-750 power supplies and the Virgolite modules.
