Summary of Contents for Digiever DIGIARRAY DA-4000E
-

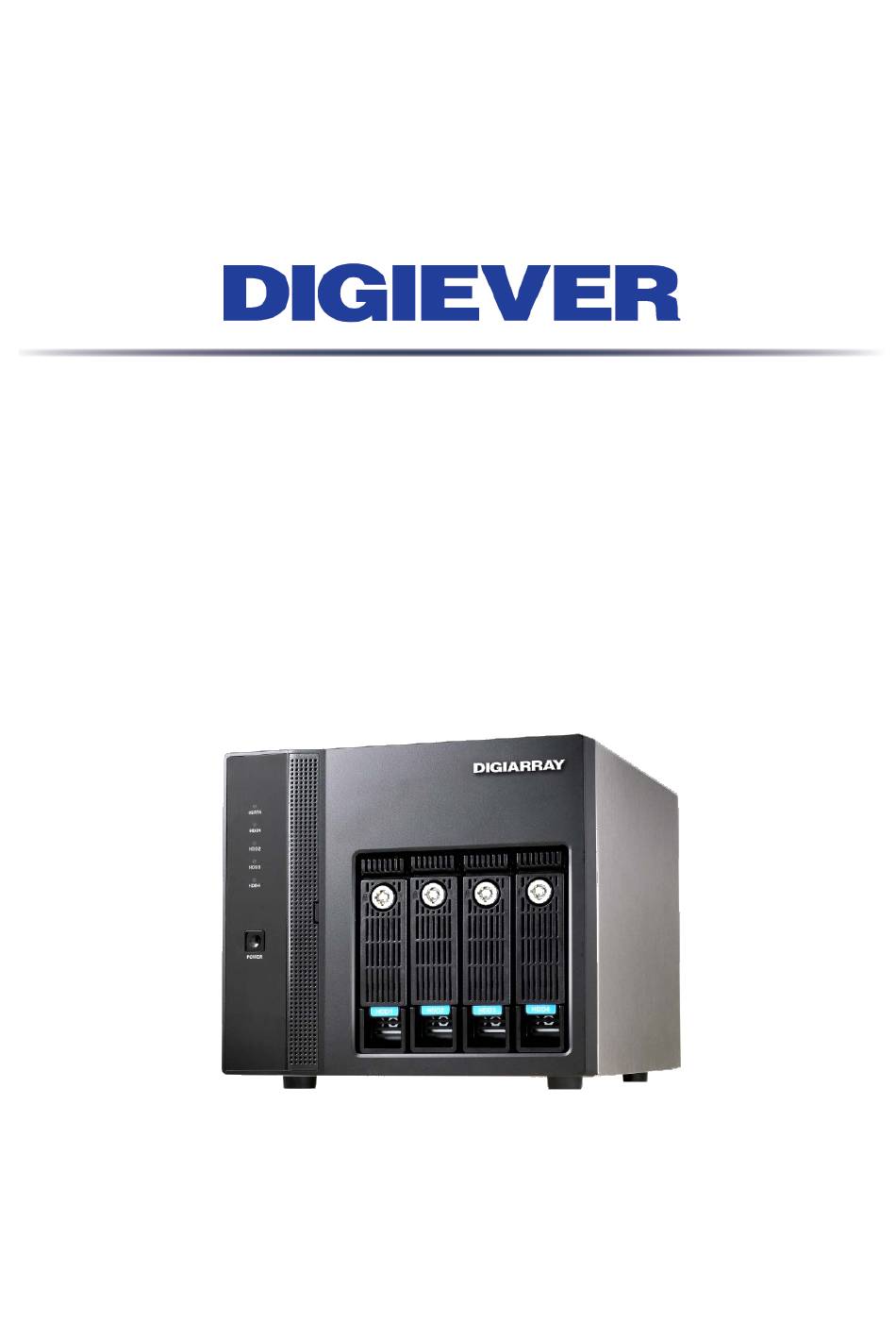

Page 1: Quick Installation Guide
Quick Installation Guide DIGIARRAY DA-4000E 1.0.0.2 Information in this document is subject to change without notice. © Copyright 2015, DIGIEVER Corporation. All rights reserved. - Page 2 Quick Installation Guide Thank you for choosing DIGIARRAY DA-4000E. The following quick guide will lead you to complete the installation and configuration of the DIGIARRAY. Please read the following description carefully. Create RAID of DIGIARRAY Note: Please do connect DIGIARRAY to DIGIEVER NVR when setting RAID type.
-
Page 3: Connect Digiarray To Digiever Nvr
Note: User can use the paper clip in the accessory box to press the reset button. Connect DIGIARRAY to DIGIEVER NVR Please connect your DIGIARRAY to a DIGIEVER NVR via eSATA cable. DIGIARRAY is equipped with an eSATA hook to fix eSATA cable in order to prevent loosing eSATA cable. - Page 4 LED Indicators Status LED indicator helps users to check HDD status and eSATA connection status. LED on Front Panel LED Color & Status Indicate No data transmission eSATA Orange blinking The eSATA device is being accessed Hard disk drive device is not established HDD1 HDD2 Green...
-
Page 5: Add New Volume Into Storage Volume Pool
Add New Volume into Storage Volume Pool Please make sure NVR and DIGIARRAY are power on with a complete RAID type, before you start to connect DIGIARRAY to NVR. Go to Disk Management page on NVR configuration page: Choose the volume which one you want to add into the volume pool and press “Format”... - Page 6 RAID configuration is done. DIGIARRAY now is ready to connect to NVR. Note: Before change DIGIARRAY’s RAID type, please make sure 1. eSATA cable is unplugged to DIGIEVER NVR 2. DIGIARRAY has been removed from NVR’s storage volume pool.
- Page 7 Appendix: Package Contents DIGIARRAY DA-4000E Power adapter Screw bag eSATA cable CD-ROM Paper clip...
-
Page 8: Hardware Description
II. Hardware Description Front View Rear View Power button LED indicators: HDD x 4 LED indicators: eSATA eSATA hook Dip Switch Reset button eSATA x 1 Power connector Note: DIGIARRAY has a built-in buzzer which will start alarm when DIGIARRAY encounters hardware error. For instance, if RAID failures, the buzzer will alarm and LED indicator will turn to red light. -
Page 9: Raid Introduction
III. RAID Introduction The introduction of disk configuration is in the below table. Linear Linear is a collection of hard disk drives and does not provide any (JBOD) RAID protection. The data are written to the disks continuously. RAID 0 RAID0 is one larger volume with 2 or more hard disk drives.
