ergoline MCS III plus Planning Manual

Planning Manual
Contents
Device descripition. . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Technical Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Accessories supplied . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Connection diagram for Open Sun, Classic. . . . . . . 3
Connection diagram for Excellence, Evolution,
Advantage, Ambition, Lounge. . . . . . . . . . . . . . . . . . 3
Hand-held remote control MCS III plus
*
)
The circuit board performance MCS is the interface between
the hand-held remote control and the professional sunbed
devices from Ergoline without inherent electronics
(Ergoline 200/300, Classic 200/300).

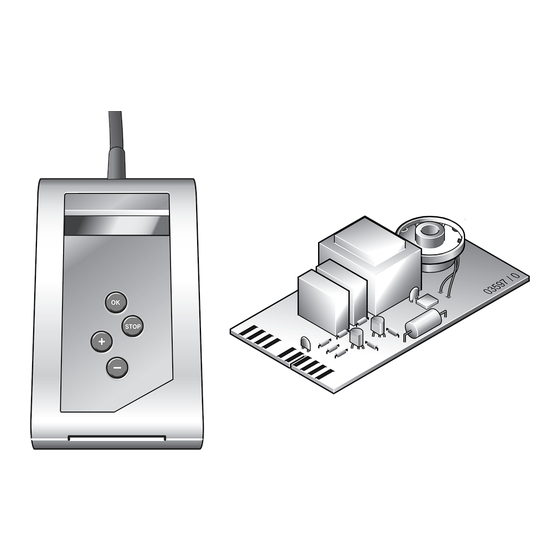

without performance circuit board
with performance circuit board*
Hand-held remote control MCS III plus – 1
Article No.: 3401060
Article No.: 3401070
)
