Insite 7" Touchscreen
Quick Start Guide (ST-IET7)
Welcome
Thank you for purchasing the Insite 7"
touchscreen.
This Quick Start Guide will give you an
overview of the proper installation and
initial programming of the touchscreen.
For further assistance, please refer to our
web site or contact us directly:
Web: interactive-online.com
Email: support@interactive-online.com
Phone: 1-678-455-9019
(Press 2 for Support)
What's in the box
• Insite 7" Touchscreen
• Wall Mounting Bracket
• Mounting Bracket Screws (4x)
• Set Screw
• Hex Wrench
• Pluggable Terminal Block

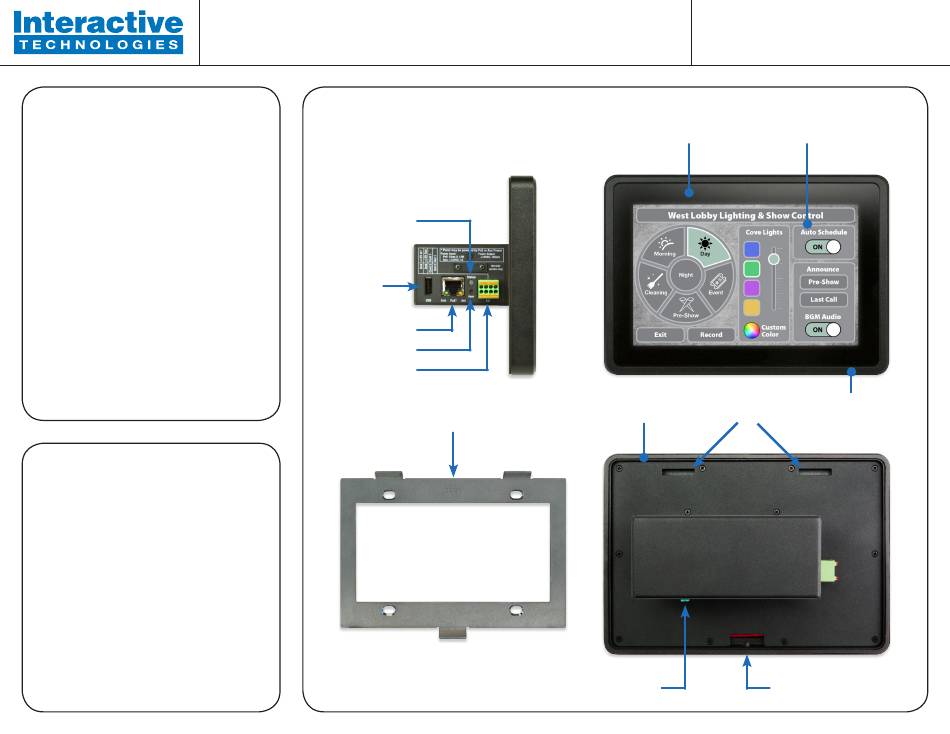

Hardware Overview
USB
Ethernet w/PoE
Reset Button
Terminal Block
Top of Bracket
Wall Mounting Bracket
(for 3-Gang Electrical Box)
Interactive Technologies, Inc.
5295 Lake Pointe Center Drive, Suite 100
Cumming, GA 30041 USA
678-455-9019 (Phone)
www.interactive-online.com
5-Point Capacitive
Ultra High-Resolution
Multitouch Surface
Wall
Wall Bracket
Gasket
Slots
Optional
Grounding Lug
True Color Display
Solid Aluminum
Machined Bezel
Hidden Locking
Hex Set Screw
Advertisement
Table of Contents
Summary of Contents for Interactive Technologies Insite
- Page 1 Insite 7” Touchscreen Interactive Technologies, Inc. 5295 Lake Pointe Center Drive, Suite 100 Cumming, GA 30041 USA Quick Start Guide (ST-IET7) 678-455-9019 (Phone) www.interactive-online.com Welcome Hardware Overview 5-Point Capacitive Ultra High-Resolution Multitouch Surface True Color Display Thank you for purchasing the Insite 7” touchscreen. This Quick Start Guide will give you an overview of the proper installation and initial programming of the touchscreen. Status LED For further assistance, please refer to our web site or contact us directly: Web: interactive-online.com Email: support@interactive-online.com Ethernet w/PoE Phone: 1-678-455-9019 Reset Button (Press 2 for Support) Terminal Block Wall...
-
Page 2: Status Led
Step 1: Connect to Network and Power Terminal Block Wiring If using Power-over-Ethernet, simply attach the powered network cable. The pluggable terminal block can optionally be used to provide DC power or to connect external If using an external DC power supply, attach a 12VDC 12W source to the accessories to the touchscreen. terminal block. Also attach the network cable. The Status LED light will illuminate Green when the touchscreen receives power. Output 2 LED 2 Output 1 LED 1 Step 2: Configuration Optional 12VDC Input When the touchscreen is powered for the first time, the Panel Setup screen Contact 2 will appear automatically. Switch 2 Contact 1 Network Configuration Switch 1...
