Summary of Contents for Pacifica M5 Mirage 3

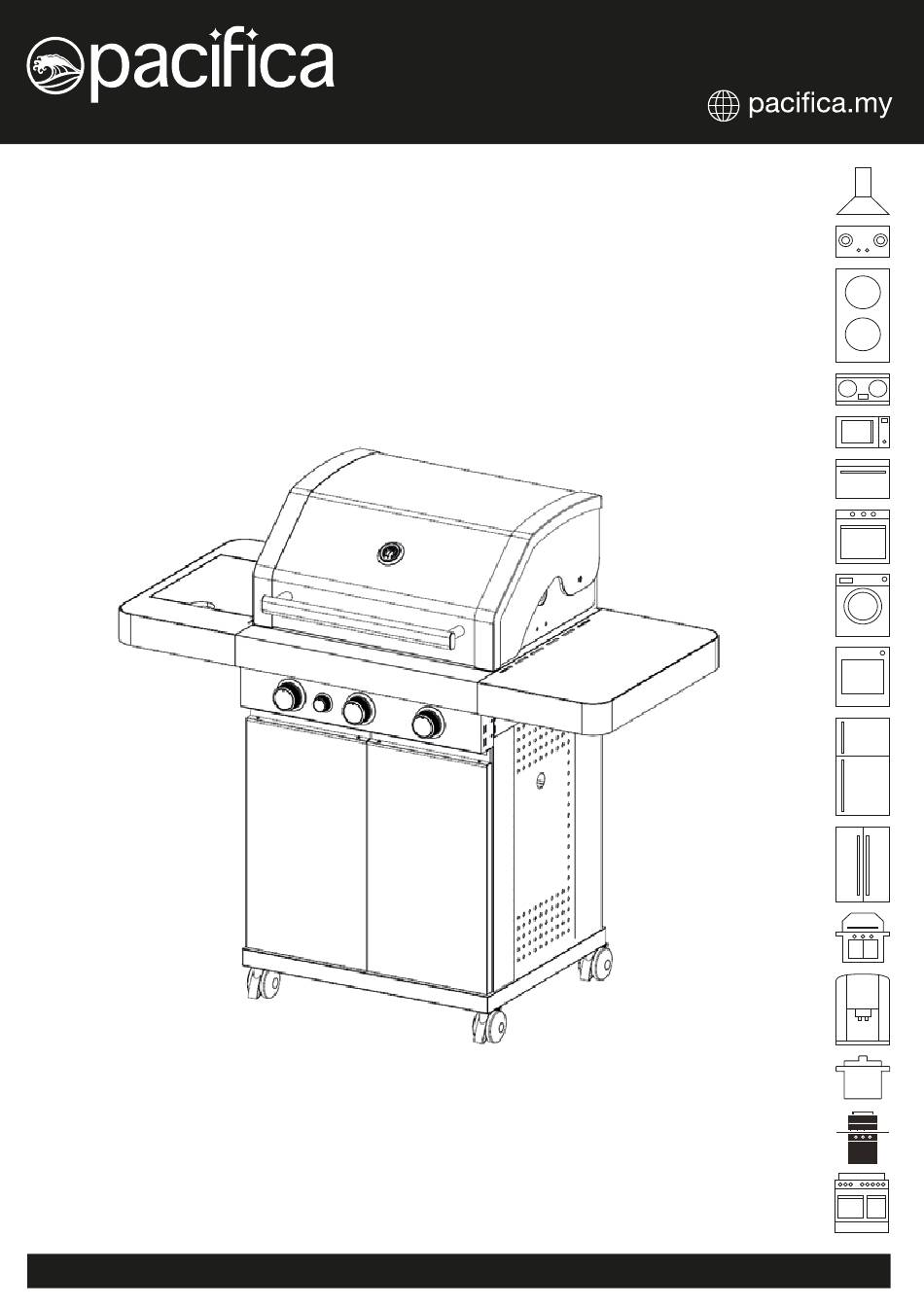

- Page 1 M5 Mirage 3 Barbecue gas grill | Griglia barbecue a gas Please read the instructions carefully before any operation...
- Page 3 IMPORTANT: READ ALL INSTRUCTIONS AND OPERATIONS BEFORE OPERATING THIS UNIT. FOLLOW ALL STEPS IN ORDER. NEVER ALLOW CHILDREN TO OPERATE THIS UNIT. Warnings: Only to be used outdoors. Read the instructions before using the appliance. Accessible parts maybe very hot, keep young children away. Do not move the appliance during use.
- Page 4 2. Exploded View 3. Single part list seq. appellation qty seq. NO. appellation thermometer warming rack cast iron cooking grids heat distribution panel firebox assembly main burner tube assembly right side table reinforce bar reinforce bar control panel assembly Cart attachment bracket control knob grease tray grease cup assembly...
- Page 5 side low panel rear side low panel bottom panel assembly swivel caster door assembly side burner nozzle base side burner cover side burner cooking grid side burner assembly side burner insert tray 4. Fixing elements 5. Mounting steps Make sure your grill is assembled properly. Detailed assembly instructions are packed with each grill giving specific assembly procedures for each model.
- Page 6 Figure 2...
- Page 7 Figure 3...
- Page 8 Figure 4 Figure 5...
- Page 9 Figure 6...
- Page 10 Figure 7...
- Page 11 Figure 8...
- Page 12 Figure 9 Figure 10...
- Page 13 Figure 11 Figure 12...
- Page 14 Figure 13...
- Page 15 Figure 14 Figure 15...
- Page 16 MODEL M5 - Mirage 3 6. Preparation You will need to purchase a5kg LPG gas bottle and the pressure regulator should correspond to the pressure and gas category of the appliance, which can be obtained from your nearest Gas Retailer. The regulator should be comply with EN12864 or EN16129 with current version and national regulation.
- Page 17 Energy saving tips: a) Reduce the opening time of the lid. b) Turn the grill off as soon as cooking is completed. c) Preheat the gas grill for 10 to 15 minutes only. (Except for the first use) d) Do not preheat longer then recommended. e) Do not use a higher setting than required.
- Page 18 8. Warning and safety points Please read the following points before using your gas grill: a) Read the instructions before using the appliance. Please follow all assembly instructions in this manual; if instructions are not followed it may cause problems in use.
- Page 19 m) We would recommend that this gas grill be serviced by your local gas retail outlet at least once a year by a competent engineer. Do not attempt to service this appliance yourself. n) Any modification of the appliance may be dangerous. Do not attempt any unauthorized interference of the main controls on this gas grill, i.e.
- Page 20 10. Lighting instructions Caution: The lid must be open when lighting the burner! Do not stand with your face directly over the gas grill when lighting it. Your gas grill will have following method of ignition: Pilot Gas Control Ignition: With all gas controls on the Gas grill in the “OFF”...
-
Page 21: Cleaning Instructions
Figure 20 11. Storage Your Gas Bottle must be stored outdoors in a well ventilated area and must be disconnected from your gas grill when not being used. Ensure that you are outdoors and away from any sources of ignition before attempting to disconnect your gas bottle from your gas grill. - Page 22 Obstructions in gas jets or hose. Clean jets and hose Windy conditions. Use BBQ in a more sheltered spot Gas valve knob difficult to turn. Gas valve jammed Replace gas valve If your problem is not resolved from the information above, please call the Gas grill helpline.
- Page 23 • Always put a lid on the pan. • Suggestions use Ø pans in 20-24cm. 15．electric energy; Products used in 4X1.5V cells to light the LDE, use the 1X1.5V battery to start Rear burner。 Battery type: AA 1.5V; Remarks:Some models have lights, some with no lights and Rear burner。 Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU.
- Page 24 Ge Green Sdn. Bhd. Lot 18.2, 18th Floor, Menara Lien Hoe, 8, Persiaran Tropicana, 47410 Petaling Jaya, Selangor, Malaysia.
