E36

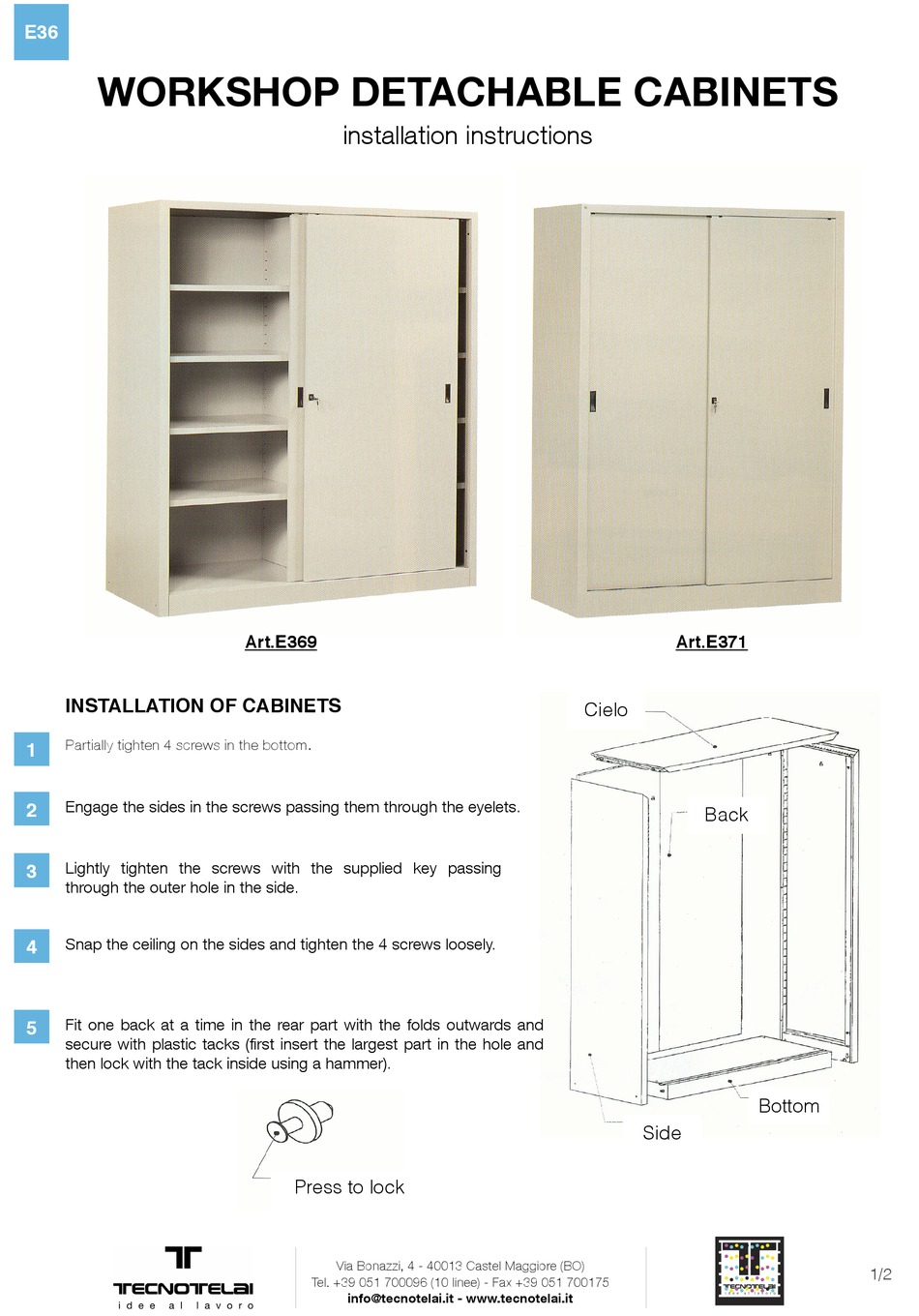

WORKSHOP DETACHABLE CABINETS
INSTALLATION OF CABINETS
Partially tighten 4 screws in the bottom.
1
2
Engage the sides in the screws passing them through the eyelets.
Lightly tighten the screws with the supplied key passing
3
through the outer hole in the side.
Snap the ceiling on the sides and tighten the 4 screws loosely.
4
Fit one back at a time in the rear part with the folds outwards and
5
secure with plastic tacks (first insert the largest part in the hole and
then lock with the tack inside using a hammer).
installation instructions
Art.E369
Press to lock
Via Bonazzi, 4 - 40013 Castel Maggiore (BO)
Tel. +39 051 700096 (10 linee) - Fax +39 051 700175
info@tecnotelai.it - www.tecnotelai.it
Art.E371
Cielo
Back
Bottom
Side
! /! 1 2
