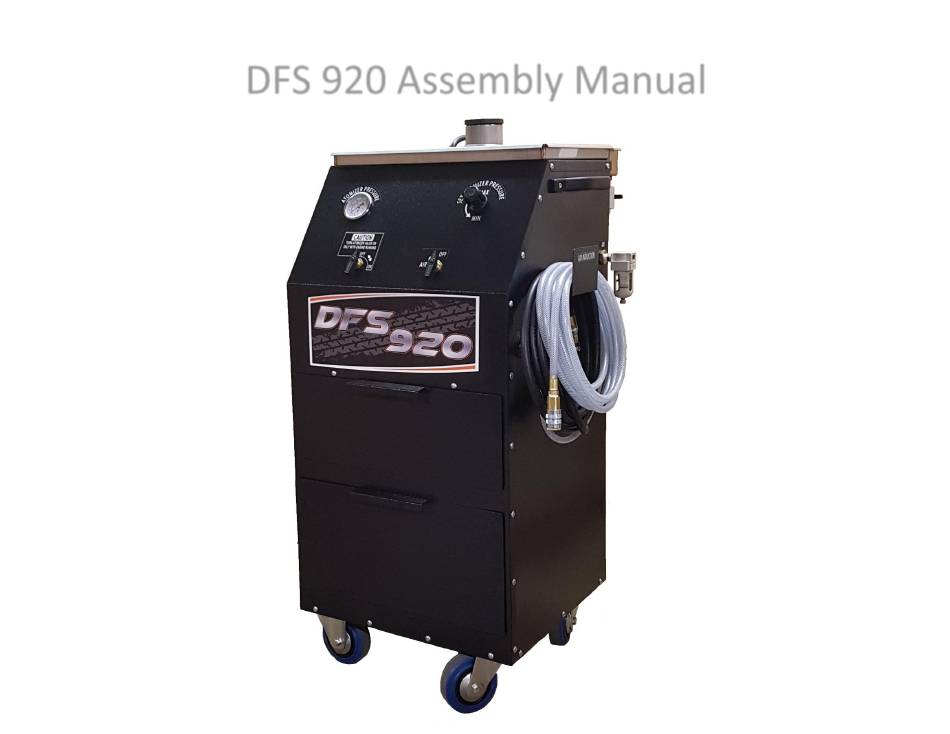

- Page 1 DFS 920 Assembly Manual pg. 1...
- Page 2 #6046 #6000 #4029 #4024 #6021 #6046 #6005 6046 #6085 #6005 #6005 #4042 #2015-1 pg. 2...
- Page 3 #6023 #6024 #3017 #2003 #6046 #4022 #3018 #6046 #6024 #6073 #6024 #7007 - Assembled #6005 #6086 #6046 #6025 #6070 pg. 3...
- Page 4 Hose - #4099 - 14 Ft Long Brass - #6046 Coupler - #6054 Complete Assembled Hose - #7045 Hose - #4008 - 14 Ft Long Brass - #6046 pg. 4 Coupler - #6049 Complete Assembled Hose - #7046...
- Page 5 #3043 #3010 #6007 #DFS 910-13 #DFS 910-12 #4008– 2’ pg. 5...
- Page 6 #6042 #6046 #6059 #6095 #6069 #4010 – 7” #6043 #2001 – Both castors on the right side are the same castor pg. 6 #2000 -Both castors on the left side are the same castor...
- Page 7 #3010 pg. 7 #4008...
- Page 8 DFS 920 Assembly Manual Parts List Hardware 2000 4" Rigid Caster 2001 4" Swivel Caster 2003 Pull Handle Plastic DFS/DFX - Aluminum Cap with O- 2015-1 Ring pg. 8...
- Page 9 Metal 3010 DFS 920 Metal Tank 3017 DFS 920 Metal Tray 3018 DFS/RCS Hose Hanger Brackets 3043 EGR Tank Cap for DFS Machines DFS 910-12 EGR Tank Ring Holder DFS910-13 EGR Tank Ring pg. 9...
- Page 10 Plumbing 4008 1/4" 300 PSI Black Push-On Hose 3/8" id Kuri Tech Polyurethane 4010 Tubing 4022 Air Filter Water Separator 4024 Regulator pg. 10...
- Page 11 2" Dial 1/4" cbm, slide on clamp, 4029 brass, dry, 0-160 psi 4042 3 Way 90-degree Ball Valve 4099 1/4" 250 PSI Vinylene Food Grade pg. 11...
- Page 12 Brass Fittings 6000 Brass Female NPT Hose Barb Brass 90 deg. Male NPT Hose 6005 Barb Brass 45 deg. Male NPT Hose 6007 Barb 6021 Brass Street Tee 6023 Brass Hex Nipple 6024 Steel Bulkhead Bushing pg. 12...
- Page 13 6025 Spring Loaded Check Valve 6042 Brass Pipe Hex Nipple 6043 Brass Male NPT Hose Barb 6046 Brass Male NPT Hose Barb Industrial Interchange Coupler for 6049 BFS, DFS Industrial Interchange Coupler / 6054 Quick Connect with Viton Seals 6059 Mini Valve 1/8"...
- Page 14 Brass Male NPT 3/8" Hose Barb 6070 1/4" Pipe Thread 6073 Brass NPT Reducing Adapter 1/4" 3 Way 90-degree Ball Valve 6085 W/1/4FPT (3) 6086 Brass 90' Male Pipe Elbow Air Brake Compression 90' Male 6095 NPT Connector pg. 14...
- Page 15 Assembled Parts DFS Check Valve Hose 7007 Attachment 1/4" Clear Push-On Hose 7045 Complete Assembly 1/4" Black Push-On Hose 7046 Complete Assembly pg. 15...
- Page 16 pg. 16...
