Fuelab 72001 Operating And Installation Instructions

Operating and Installation Instructions
This product is to be installed only by persons knowledgeable in the repair and modification of vehicle fuel systems
and general vehicle systems modification. Only a qualified technician or mechanic who is aware of applicable
safety procedures and fabrication skills should perform the installation of this product.
GASOLINE AND OTHER FUELS ARE FLAMMABLE AND CAN BE EXPLOSIVE!
Perform the installation in a well ventilated location only to minimize the build up of fuel vapors. NO open flames,
smoking or other sources of ignition are to be present during installation, to prevent fire or explosion that can cause
serious injury or death. Grinding, cutting, and drilling must be performed with care to prevent ignition. Draining and
removal of all fuel and ventilation of vapors in vehicle and fuel system is recommended when performing such
procedures. Proper eye and personal protection is required at all times during installation.
The Vehicle's fuel system may be under pressure! Do not loosen any fuel connections until relieving all fuel system
pressure. Consult an applicable service manual for instructions to relieve fuel system pressure safely.
This product is intended for racing, off-road, or marine use only. This fuel system component may not be legal for
sale or use on emission controlled motor vehicles; consult local, state and national laws.

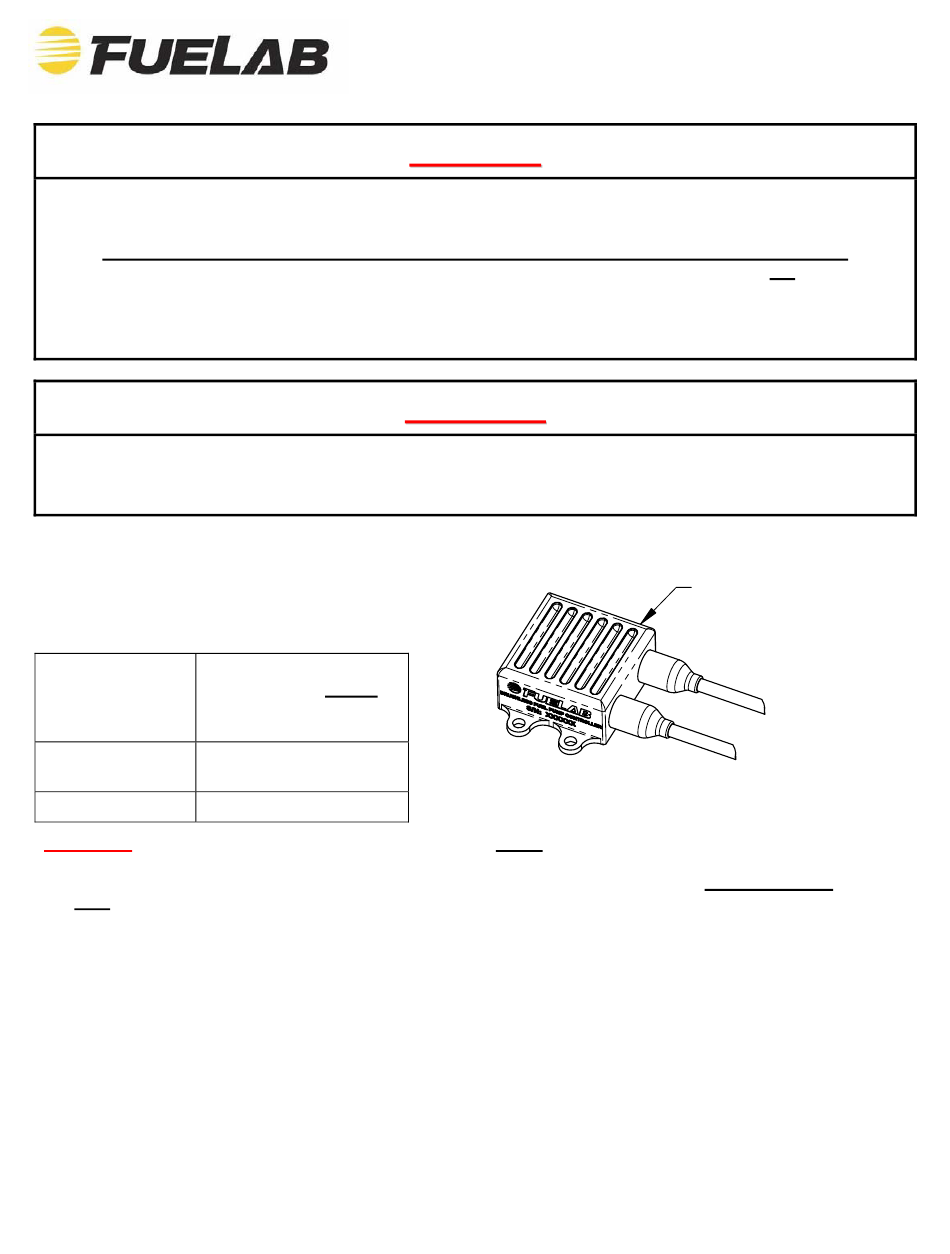

Product Contents:
Check the diagram and list of components (right)
to ensure that no components are missing from
box. Contact your Fuelab distributor immediately
for replacement.
72001 Features and Performance Ratings:
Pump Compatibility 3 Phase DC Brushless
Maximum Current
Draw
Operating Voltage
WARNING! This DC Brushless Fuel Pump Controller is ONLY compatible with 3 Phase DC Brushless Fuel
Pumps without an internal electronic controller. 3 Phase Brushless Fuel Pumps feature three wires that
are directly attached to the internal motor's stator windings. This controller is INCOMPATIBLE with
ANY two-wire systems.
Before Installation, Plan Entire Fuel System:
A complete design plan of the entire fuel system must be created for the specific application. These instructions are
a guide to help design this plan with respects to integrating this model of external fuel pump controller only. Consult
other sources of information and manufacturers instructions for the various components of the fuel system. These
instructions are limited to general topics of Fuel Pump Controller installation and may not include specific
information pertaining to your specific application. Visit our company website (www.fuelab.com) for specific details
pertaining to example fuel systems and other solution ideas. Additional information including advanced
troubleshooting, any special alerts and FAQ's pertaining to this and other products is also available. A good design
plan for the fuel system must contain consideration for: Pressure and flow rate through various components, quality
of components, operating environment (temperature, vibration, shock, general exposure to elements) and local area
laws. Begin installation of External DC Brushless Fuel Pump Controller only after a complete plan is established to
help avoid fuel system component failure, costly rework, and excessive installation time.
External DC Brushless Fuel Pump Controller
W
W
Fuel Pumps ONLY!
(without an internal
electronic controller)
20 Amperes
8-18 Volts
Model Number 72001
C A U T I O N !
C A U T I O N !
A R N I N G !
A R N I N G !
Fuel Pump Controller
120020125-1, No Rev. Page 1 of 4
