Solar Powered
Auto Darkening Welding Helmet
Instruction Manual
Need help?
Call our customer service hotline at 1-800-386-0191
For up-to-date product information, accessories and for Spanish or French
versions of this manual, please visit our website at: www.titan-us.com and click
on the literature link or scan the QR Code at left with your smart phone.
SAVE THESE INSTRUCTIONS
Advertisement
Table of Contents
Summary of Contents for Shop Iron 41260
- Page 1 Solar Powered Auto Darkening Welding Helmet Instruction Manual Need help? Call our customer service hotline at 1-800-386-0191 For up-to-date product information, accessories and for Spanish or French versions of this manual, please visit our website at: www.titan-us.com and click on the literature link or scan the QR Code at left with your smart phone. SAVE THESE INSTRUCTIONS...
-
Page 2: Read Before Using
READ BEFORE USING It is the owner and/or operator’s responsibility to study all WARNINGS, operating, and maintenance instructions contained on the product label and instruction manual prior to use of this product. The owner/operator shall retain product instructions for future reference. The owner and/or operator are responsible for maintenance, maintaining all decals or warning labels and while in use, maintaining the unit in good working order. -
Page 3: Unpacking And Inspection

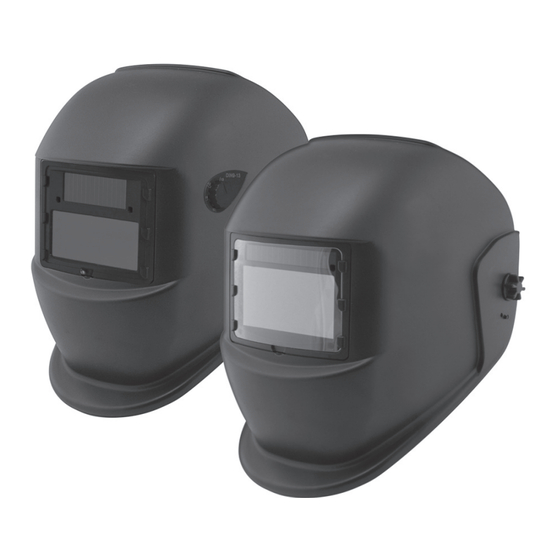

UNPACKING & INSPECTION After opening the carton, unpack your new tool and related parts & accessories. Please inspect it carefully for any damage that may have occurred during transit. Please check it against the photograph on carton. If any parts are missing, please call customer service at: 1-800-386-0191. Package contents: 1 Helmet 1 Instruction Manual... - Page 4 SAFETY RULES FOR WELDERS ARC Welding can be hazardous. Protect yourself and others from possible serious injury or death. Keep children away. Pacemaker wearers should consult with their doctor before operating. Read and understand all instructions. Failure to follow all instructions included with this product could result in serious personal injury and/or property damage.
- Page 5 SAFETY RULES FOR WELDERS (CONTINUED) FUMES AND GASES can be hazardous! Welding produces fumes and gases that are hazardous to your health. • Keep your head out of the fumes. Do not breathe the fumes. • If inside, ventilate the area and/or use exhaust at the arc to remove welding fumes and gases.
- Page 6 SAFETY RULES FOR WELDERS (CONTINUED) HOT PARTS can cause severe burns! • Never touch hot parts bare handed. • Allow adequate cooling period before touching work piece. MAGNETIC FIELDS can affect pacemakers! Electromagnetic fields (EMF) are generated around electric welding cables and welding machines.
- Page 7 55°C). HELMET SPECIFICATIONS ANSI standard #: ANSI Z 87.1-2010 Viewing Area**: **Model 41254/41260 Only: 3.85" x 1.70" (98mm x 43mm) Viewing Area: 3.86" x 2.17" (98 x 55mm) Cartridge dimensions: 4.33" x 3.54" x 0.35" (110mm x 90mm x 9mm)
-
Page 8: Preparation For Use
PREPARATION FOR USE 1. Inspect all parts for signs of damage. Any damaged parts should be replaced prior to use. 2. Make sure front Protection Plates, Outer (3) and Inner (9) are securely in place. 3. Remove protective film from Protection Plates. 4. - Page 9 WELDING HELMET PARTS AND COMPONENTS Solar cell power supply Auto Darkening Lens Filter Outer Protection Plate, Repl. part # 41264 (for Model #41254/41260, part# 41261) Headband nut Angle adjustment stud DIN Shade adjustment knob Outside sensitivity adjustment knob Front Left View...
- Page 10 Rear View (head band omitted for clarity) Welding/Grinding function switch Dark-to-clear time delay switch 10. Inner Protection Plate - Repl. part # 41264 (Model #41254/41260, Repl. part# 41261) Head band (Replacement Part# 41263) 11. Headband crown adjustment band 12. Headband longitudinal adjustment knob 13.
-
Page 11: Care And Maintenance
CARE AND MAINTENANCE 1. Regularly inspect the helmet and lens filter. Scratches or foreign matter on the lens protective plates can impair vision and should be cleaned or replaced as necessary before using. Replacement lens protective plates are available - Part number 41264 2. -
Page 12: One-Year Limited Warranty
ONE YEAR LIMITED WARRANTY Star Asia-USA, LLC (hereinafter “seller”) warrants to the original purchaser only, that this product will be free from defects in material or workmanship for a period of one year from date of purchase. Warranty Performance Warranty coverage is conditioned upon purchaser furnishing seller or its authorized service center with adequate written proof of the original purchase date.
