INSTALLATION AND USE INSTRUCTIONS FOR THE
SCOTT SEMS
TO PROGRAM SEMS II RFID TAGS FOR USE WITH PROPERLY EQUIPPED
SCOTT AIR-PAK® SELF-CONTAINED BREATHING APPARATUS
DESCRIPTION
These instructions cover the software program on SCOTT software disk P/N 31001686.
RFID TAG PROGRAMMER FOR SCOTT SEMS II ACCOUNTABILITY SYSTEM AND
PERSONAL DISTRESS ALARM
The SEMS II Accountability System and Personal Distress Alarm can be quickly programmed with

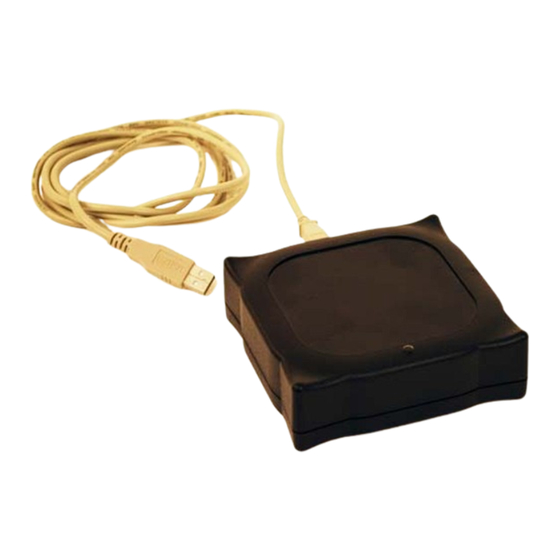

the identification of the SCBA user using the SEMS II RFID Tag. Use the Tag Writer P/N 200734 to
add unique identification information to the user's RFID Tag. This identification number can be
programmed to a combination of up to eight characters (letters and/or numbers) using the SCOTT
RFID Tag Writer Software, P/N 31001686, on a personal computer with the same Tag Programmer
computer interface. The SCOTT PAK-TRACKER Locator System integrated into a SCOTT PAK-
ALERT Distress Alarm also uses the same ID number, so this software can be used to reprogram
the ID for respirators equipped with that function as well.
COMPUTER REQUIREMENTS
The SCOTT
RFID Tag Writer
or higher and a 486 MHz or faster processor with approximately ten (10) megabytes of free disc
space. The Interface Unit plugs into a USB 2.0 port on the computer from which it gets its power.
THE INTERFACE UNIT GETS ITS POWER FROM THE USB PORT ON THE COMPUTER. WHEN USED
WITH A BATTERY POWERED LAP TOP COMPUTER, ALWAYS UNPLUG THE USB CABLE AFTER
USE TO PREVENT DRAINING THE POWER FROM THE BATTERY.
WINDOWS
®
and Microsoft
®
are registered copyrights of Microsoft, Inc.
®
COMPUTER INTERFACE
software is PC based and requires a minimum of WINDOWS
CAUTION
Page 1 of 8
INSTALLATION AND USE INSTRUCTIONS
II RFID TAG WRITER
DRAFT COPY
®
2000
P/N 595177-01 Rev A 9/08
Advertisement
Table of Contents
Summary of Contents for Scott SEMS II
- Page 1 The SEMS II Accountability System and Personal Distress Alarm can be quickly programmed with the identification of the SCBA user using the SEMS II RFID Tag. Use the Tag Writer P/N 200734 to add unique identification information to the user’s RFID Tag. This identification number can be...
- Page 2 Before the RFID Tag Writer Computer Interface can be used with your computer, the USB Driver must be installed. Install the USB Driver according to the following steps: 1. Insert the CD disk, SCOTT P/N 31001686, in you computer. Installer screen will appear. See FIGURE 1.
- Page 3 DRAFT COPY 3. When the USB Driver has been installed successfully, return to the Installer main screen. 4. Next to “COM Port,” click the “Refresh” button to display the COM Port that has been assigned to the USB Connection. See FIGURE 3. FIGURE 3 5.
- Page 4 TO INSTALL SEMS II RFID TAG WRITER SOFTWARE 1. Select “SEMS II RFID Tag Writer” to install the Tag Writer Software for the SEMS II Distress Alarm. Follow the instructions on the screen. You may need to close all other applications to install this program.
- Page 5 Select the COM Port that was set in Installation. See FIGURE 6. FIGURE 6 TO UPDATE THE ID OF A SCOTT SEMS II RFID TAG 1. Select “Write Tag ID.” After a few seconds, the screen will display the screen shown in FIGURE 7.
-
Page 6: Testing The Equipment
5. Mark the new ID number on the SCOTT SEMS II RFID Tag in some indelible manner. 6. To program another RFID Tag, repeat the steps above. 7. To close down the SCOTT RFID Tag Writer software, click the “X” in the upper right hand corner of the window. -
Page 7: Safety Listings
QUESTIONS OR CONCERNS If you have any questions or concerns regarding use of this equipment, contact your authorized SCOTT distributor, or contact SCOTT at 1-800-247-7257 (or 704-291-8300 outside the continental United States) or visit our web site at www.scotthealthsafety.com. Page 7 of 8... - Page 8 DRAFT COPY Copyright © 2008, SCOTT, All Rights Reserved Health & Safety Products Monroe Corporate Center PO Box 569 Monroe, NC 28111 Telephone 1-800-247-7257 FAX (704) 291-8330 www.scotthealthsafety.com Printed in USA P/N 595177-01 Rev A 9/08 Page 8 of 8...
