Kichler Lighting DC7206 User Manual

User's Manual

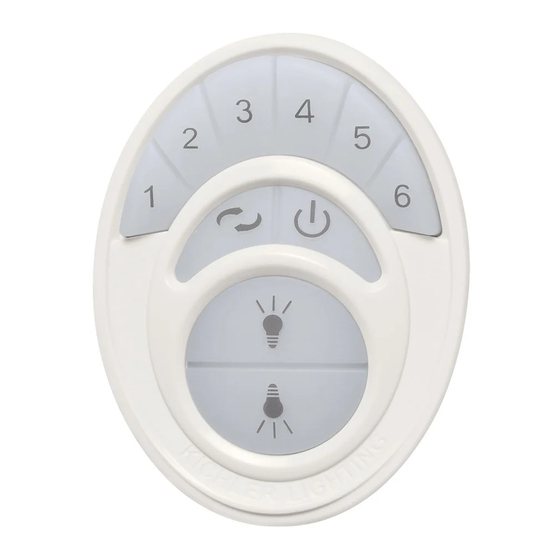

DC7206-remote control
General：
The remote is wholly used for matching brushless DC no sensor DC-18 ceiling fans
use. LCD, 3 V battery-powered, simple operation, stable performance, reliable
quality.
Type：
Type：DC-7206。
Main function：
Used for matching DC brushless no-sensor DC-18 use, through nine keys on the
remote, it is easy to operate after opening the back of the battery cover to install
battery.
Structure chart：
See attached fig1.：
1 、Start key 1;
2 、Start key 2;
3 、Start key 3;
4 、Start key 4；
5 、Start key 5；
6 、Forward/ reverse control key；
7 、Power off；
8 、Up lamp :Power off /on ;
9 、Down lamp :Power off /on;
10、6 V battery.

Specifications:

1, the working voltage: DC-6V;
2, static current: less than 20 uA;
3, working current: less than 20 mA;
4, effective assorting space with the receiver in the same series: not less than 12
meters;
Instruction：
1、Start key 1：Pressure the key,DC-18 start at the first gear;
2、Start key 2：Pressure the key,DC-18 start at the second gear;
3、Start key 3：Pressure the key,DC-18 start at the third gear;
