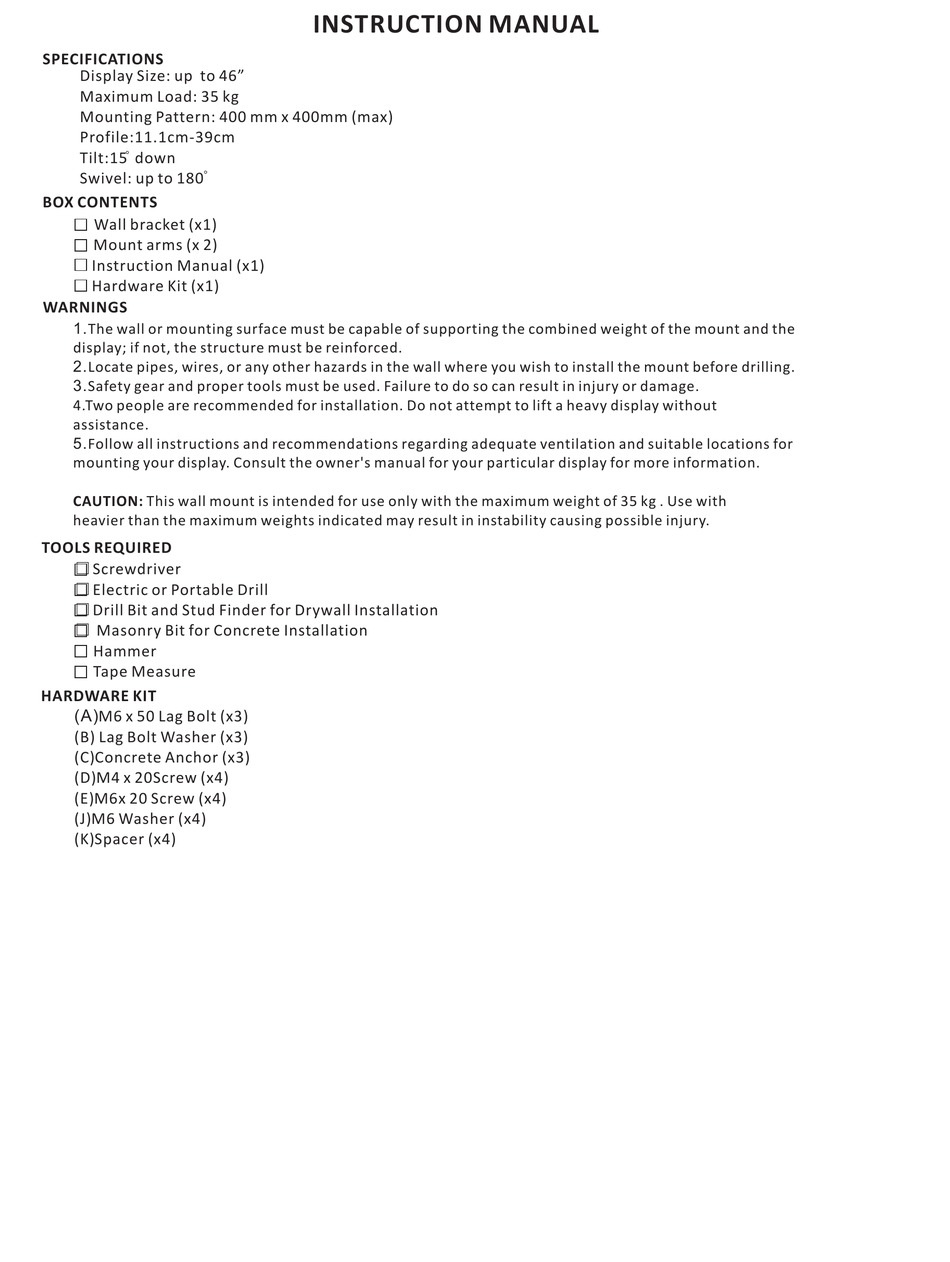

Rubymount A4601-1 Instruction Manual

SPECIFICATIONS

Display Size: up to 46"
Maximum Load: 35 kg
Mounting Pattern: 400 mm x 400mm (max)
Profile:11.1cm-39cm
Tilt:15 down
Swivel: up to 180

BOX CONTENTS

Wall bracket (x1)
Mount arms (x 2)
Instruction Manual (x1)
Hardware Kit (x1)

WARNINGS

1.The wall or mounting surface must be capable of supporting the combined weight of the mount and the
display; if not, the structure must be reinforced.
2.Locate pipes, wires, or any other hazards in the wall where you wish to install the mount before drilling.
3.Safety gear and proper tools must be used. Failure to do so can result in injury or damage.
4.Two people are recommended for installation. Do not attempt to lift a heavy display without
assistance.
5.Follow all instructions and recommendations regarding adequate ventilation and suitable locations for
mounting your display. Consult the owner's manual for your particular display for more information.
CAUTION: This wall mount is intended for use only with the maximum weight of 35 kg . Use with
heavier than the maximum weights indicated may result in instability causing possible injury.

TOOLS REQUIRED

Screwdriver
Electric or Portable Drill
Drill Bit and Stud Finder for Drywall Installation
 Masonry Bit for Concrete Installation
Hammer
Tape Measure

HARDWARE KIT

(A)M6 x 50 Lag Bolt (x3)
(B) Lag Bolt Washer (x3)
(C)Concrete Anchor (x3)
(D)M4 x 20Screw (x4)
(E)M6x 20 Screw (x4)
(J)M6 Washer (x4)
(K)Spacer (x4)
INSTRUCTION MANUAL
