Summary of Contents for CMX MSC 7320

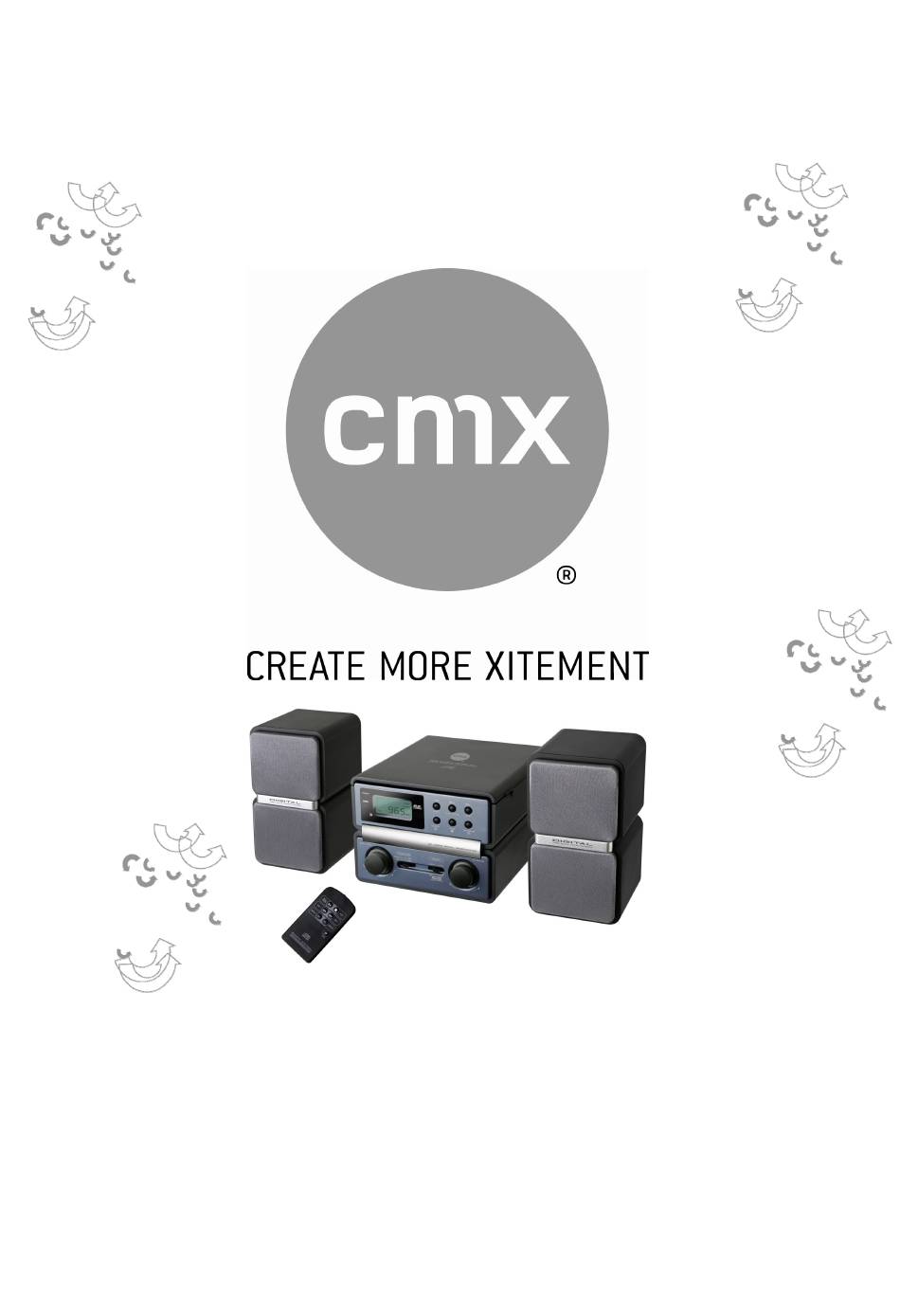

- Page 1 USER MANUAL MSC 7320 MINI SYSTEM CENTER...
- Page 2 Safety Informations Dear customer! First of all thank you very much, that you have decided for the cmx® MSC 7320! Please read all information’s carefully before you start running the cmx® MSC 7320. Our company reserves the right to improve the product. That changes to specifications and design, also without notice.
-
Page 3: Table Of Contents
5.3. ..................... 12 REPEAT 5.4. DBBS ) ................. 12 ASS OOSTER YSTEM 5.5. .................... 12 ROGRAMMING RADIO ....................... 14 SPECIFICATIONS .................. 15 Version 1 cmx® MSC 7320 Seite 3 von 16... -
Page 4: Safety Informations
AC plug must match the slot in receptacle “wall socket”. Invisible laser radiation when open and interlocks defeated. Avoid exposure to beam. CLASS 1 LASER PRODUCT Version 1 cmx® MSC 7320 Seite 4 von 16... -
Page 5: Location Of Controls
11. Display OFF) 12. CD “BACK” key 5. Radio band switch 13. CD “PLAY/PAUSE” key (AM/FM) & DBBS 14. CD “NEXT” key OFF/ON switch 15. CD “PROGRAM” key 6. Radio tuning knob Version 1 cmx® MSC 7320 Seite 5 von 16... -
Page 6: Rear Side
Location of controls 2.2. Rear side 1 2 2 3 1. Headphone socket 3. AUX input socket 2. Speaker output sockets 4. AC-cord & plug (left & right) 5. FM-antenna wire Version 1 cmx® MSC 7320 Seite 6 von 16... -
Page 7: Remote Control
Remove the protective transparent cover which wraps the outside of the remote control. Remove (gently pull out) the plastic “TAB” from the battery compartment at the rear of the remote control. Version 1 cmx® MSC 7320 Seite 7 von 16... -
Page 8: Included In Delivery
Included in delivery 3. Included in delivery User’s manual Warranty card Remote control Version 1 cmx® MSC 7320 Seite 8 von 16... -
Page 9: Connections
To connect the external device please use a standard stereo headphone (3,5 mm to 3,5 mm plugs) cable to connect the “headphone-out or audio line-out” of the device to the AUX-input socket of this unit. Version 1 cmx® MSC 7320 Seite 9 von 16... -
Page 10: Headphone
4.4. Headphone To connect the headphones or earphones insert the cable into socket on the rear of main unit (see point 1 – location of controls / rear side). Version 1 cmx® MSC 7320 Seite 10 von 16... -
Page 11: Cd Player
(track). At anytime during playback, press “PLAY/PAUSE” to stop the operation of the unit. Press “PLAY/PAUSE” to resume the operation at the same track and position. Version 1 cmx® MSC 7320 Seite 11 von 16... -
Page 12: Cd Repeat
Anytime during playback, slide the DBBS ON/OFF switch as required. 5.5. Programming The CD player can be programmed to play any sequence of up to 20 tracks, as desired. Always press ”STOP” before starting programming. Version 1 cmx® MSC 7320 Seite 12 von 16... -
Page 13: Cmx® Msc
To clear (cancel) the entire program which is stored in the memory, simply press “STOP”, or switch off the set. Version 1 cmx® MSC 7320 Seite 13 von 16... -
Page 14: Radio
AM (MW) radio reception: rotate or re-position the main unit Rotate tuning knob to tune-in the desired station, as displayed in the LCD digital display. Adjust the volume to desired level. Version 1 cmx® MSC 7320 Seite 14 von 16... -
Page 15: Specifications
To be completely disconnected the power input. The mains plug of the apparatus shall be disconnected from the mains completely. The mains plug should not be obstructed or should be easily accessed during intended use. Version 1 cmx® MSC 7320 Seite 15 von 16... - Page 16 In such a case, please reset the unit (by disconnecting and reconnecting AC power source) to revert the unit to normal operation. CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Version 1 cmx® MSC 7320 Seite 16 von 16...
