Summary of Contents for Digital Wireless Corporation DB-1000
-
Page 1: User Manual

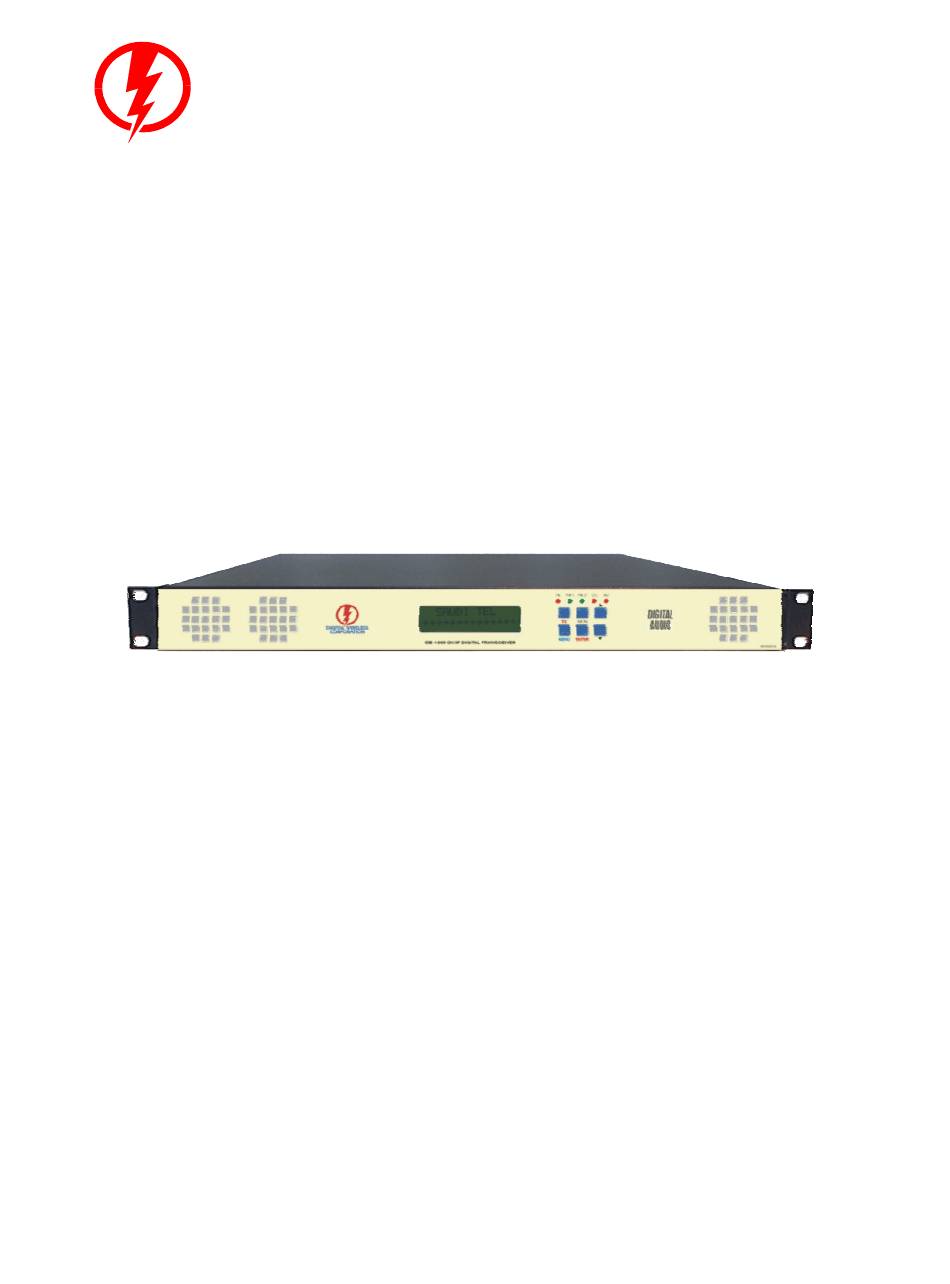

DB-1000 Digital Station DIGITAL WIRELESS CORPORATION 406-470 MHz 25 watts User Manual 09-05-0002-00... - Page 2 Instruction Manual may not be copied or reproduced in any manner without the express written consent of Digital Wireless Corporation, a Delaware corporation. The purchase of the product described in this Instruction Manual shall not...
- Page 3 The product described in this Instruction Manual was manufactured in the United States of America. This document is copyrighted as of March 1, 2006. i2way is a registered trademark of Digital Wireless Corporation. Publication PN 09-05-0002-00 (c) 2006 Digital Wireless Corporation Page iii Version -03 04 MAY 06...
-
Page 4: Installation
MHz bands. This station may be used in government and international service down to 380 MHz. 2 Installation The DB-1000 station is designed to be installed indoors, typically in an electronic equipment rack. DWC manufactures equipment cabinets specifically for this purpose although a large number of commercially available “rack cabinets” are suitable. -
Page 5: Digital Audio I/O
RS-232 serial port carrying digital audio, payload data & control data TEST PORT RS-232 serial port for connection to a PC computer Publication PN 09-05-0002-01 (c) 2006 Digital Wireless Corporation Page 2 Version -03 04 MAY 06 File: Base Station Manual.lwp... - Page 6 (which has internal fans). Publication PN 09-05-0002-01 (c) 2006 Digital Wireless Corporation Page 3 Version -03 04 MAY 06...
- Page 7 (with no intake of outdoor air). 2.5 Radiation Hazards The DB-1000 Digital Station is a “base station repeater” and is intended to have its antenna installed on a radio tower or other antenna support such that the center of radiation (the antenna) is not near humans.
-
Page 8: Operation
2.9 Grounding Connection of the station to a good quality ground is necessary for safety and to protect the station from the environment. If you install more that one DB-1000 station, each station should be independently grounded. A 6-32 “grounding screw”... - Page 9 DB-1000 Station - Instruction Manual Typically the DB-1000 Digital Station operates unattended, often at remote, inaccessible locations. There are minimal operating controls, and sophisticated test and diagnostic controls. No user intervention is needed for normal operation as the Base Station is fully automatic.
- Page 10 The RF Power Amplifier cooling fan will turn on when the station transmits. Caution: The DB-1000 Station should never be operated without an antenna or 50 ohm test load attached. 3.4 Automatic Station ID The DV/IP Base Station has a built-in automatic Morse Code generator that may be programmed to periodically transmit the assigned call sign of the base station with a frequency modulated carrier wave, if required or desired.
- Page 11 The receiver temperature controlled crystal oscillator should be checked by a factory trained service technician using service procedures recommended by the factory. Publication PN 09-05-0002-01 (c) 2006 Digital Wireless Corporation Page 8 Version -03 04 MAY 06 File: Base Station Manual.lwp...
- Page 12 Additional tests should be performed as recommended by the factory by a factory trained service technician using service procedures recommended by the factory. -END- Publication PN 09-05-0002-01 (c) 2006 Digital Wireless Corporation Page 9 Version -03 04 MAY 06 File: Base Station Manual.lwp...
