Summary of Contents for Icare S Series

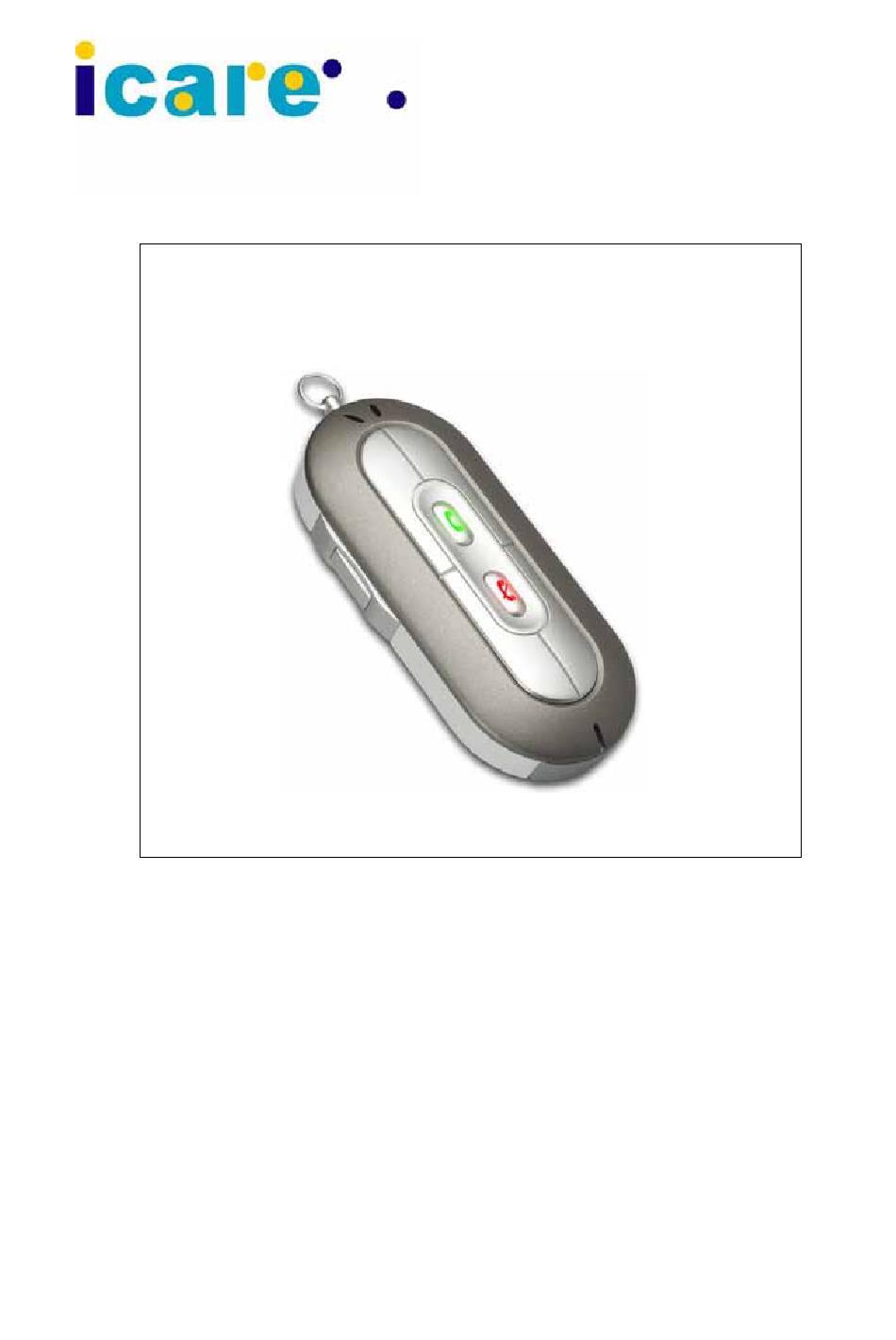

- Page 1 S Series Security Mobile Phone Model: S 3300 User Manual...
- Page 2 SERIES Security Phone 3. Please read this user manual thoroughly and follow the instructions for phone setup Please read through this manual before using S SERIES Security Phone • Keep the phone in clean area • Do not immerse the phone to liquid, wet or moisture environment •...
- Page 3 -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment.
-
Page 4: Table Of Contents
Table of Content Chapter 1 Identification ....................5 1-1 Key components of Security Phone..............5 1-2 S SERIES Security Phone accessories ....錯誤! 尚未定義書籤。 1-3 User Instruction ....................8 1-3-1 SOS group setup................8 1-3-2 SMS setup ..................8 1-3-3 SMS delay ..................7 1-3-4 Password....................7 1-3-4-1 Original password ................7... - Page 5 SOS Group iniforming................17 4-4-1 Setup SOS receivers ................18 4-4-2 Setup SOS message.................19 4-5 Earphone.....................19 4-6 Speaker Volume ..................19 4-8 Switching to vibrate/ring mode ..............20 4-9 Change Ring Volume ..................20 4-10 Setup confirmation ...................20 4-11 One way communication ................21 4-12 Password....................22 4-12-1 Change password...................22 4-12-2 Forget password ..................22 Chapter 5 Battery Management ..................23...
-
Page 6: Chapter 1 Identification
Chapter 1: Identification Chain Holder Signal LED Speed Dial 1 Speed Dial 2 SOS button Call SOS button End Call/Power On-Off Speed Dial 3 Speed Dial 4 Speaker Battery cover Cover release button... -
Page 7: S Series Security Phone Accessories
1-2 S SERIES Security Phone accessories It is suggested that use only S SERIES accessories for S SERIES Security Phone! Safety neck chain Power charger Li-ion battery Optional belt clip Optional car charger... -
Page 8: Sos Group Setup
Damage derived from disclose of password is not the liability of S SERIES Co. 1-3-5 Maintenance Do not use any other accessories than S SERIES originals. Failure to do so may result in loss of performance and will void the warranty. -
Page 9: Other Parts Maintenance
Do not use the phone to steal others privacy. Violation of privacy law is not the liability of S SERIES Co. 1-3-6-3 SIM card password Use mobile phone with display to unlock SIM card password before use it in S SERIES Security Phone. -
Page 10: General
Four speed dial keypads are able to send pre-programmed message (see sec 4-3-2). 2-3 Speed Dial Keypads S SERIES Security Phone provides four speed dial keypads. The dial out number is to be pre-programmed via message setting. S SERIES Security Phone is specially designed for the children;... -
Page 11: One-Way Communication
This is to prevent discontinue of operation during low battery. 2-8 One-way Communication Special feature is available to monitor the live sounds of S SERIES Security Phone surrounding environment (see sec 4-10). Chapter 3: Getting Start 3-1 Install Battery Place the battery in the direction of the arrow as shown in the picture to ensure the safety of S SERIES Security Phone. -
Page 12: Led Indicator
3-3 LED indicator In normal operating status, the LED light will be flashing in green; if there is no network, it shows a steady green. When there is an incoming call, LED light will be flashing rapidly. When the battery is low, LED light will be flashing in red. If the battery is required to be charged, it shows a steady red light. - Page 13 SPEED DIAL 4 PHONE NUMBER SOS 1 MOBILE NUMBER SOS 2 MOBILE NUMBER SOS 3 MOBILE NUMBER SIM RECOGNITION CODE #*66#* TEXT MESSAGE 1 MESSAGE CONTENT TEXT MESSAGE 2 MESSAGE CONTENT TEXT MESSAGE 3 MESSAGE CONTENT TEXT MESSAGE 4 MESSAGE CONTENT SOS TEXT MESSAGE MESSAGE CONTENT 5.
-
Page 14: Receiving/End Calls
Step two: For example, if your password is 0000 and the first receiver number is 0915111111. Then you enter “*0000*21*0915111111#” Step three: Send the message to S SERIES Security Phone. When the LED light is on, setup is completed. A confirmation message will send to the pre-programmed first receiver in a few seconds. -
Page 15: Making Calls
Step two: For example, if your password is 0000 and the dial out number is 0930123456. Enter “*0000*11*0930123456#” Step three: Send the message to S SERIES Security Phone. When the LED light is on, dial out number setup is completed. A confirmation message will send to the pre-programmed first receiver in a few seconds. -
Page 16: Setup Short Message Service
Step two: For example, if your password is 0000 and the dial out number is 0910123456. Enter “*0000*12*0910123456#” Step three: Send the message to S SERIES Security Phone. When the LED light is on, dial out number setup is completed. A confirmation message will send to the pre-programmed first receiver in a few seconds. - Page 17 Step two: For example, if your password is 0000 and the SMS is “Daddy, I love you”. Then you enter “*0000*T1*Daddy, I love you#” Step three: Send the message to S SERIES Security Phone. When the LED light is on, setup is completed.
-
Page 18: Change Message Text
Step three: Send the message to S SERIES Security Phone. When the LED light is on, setup is completed. How to use: Press third speed keypad for three seconds until the red and blue light is on, and then the message is sent. - Page 19 S SERIES Security Phone will auto dial to the first receiver if the receiver answer the phone so that the receiver can monitor the life sounds surrounding S SERIES Security Phone. SOS Button SOS Button 4-4-1 Setup SOS receivers Press SOS Button on both sides, text message will be sent to the preprogrammed three receivers.
-
Page 20: Earphone
Step two: For example, if your password is 0000 and the first receiver number is 0915111111. Then you enter “*0000*22*0916111111#” Step three: Send the message to S SERIES Security Phone. When the LED light is on, setup is completed. A confirmation message will send to the pre-programmed first receiver in a few seconds. -
Page 21: Switching To Vibrate/Ring Mode
“*password*30*number#”. (Original password is 0000). Step two: For example, if your password is 0000and your phone number is 87654321 then you enter “*0000*30*87654321#” Step three: Send the message to S SERIES Security Phone. When the LED light is on, setup... -
Page 22: One Way Communication
Step two: For example, if your password is 0000 and the dialing number is 0916999999, then you enter “*0000*40*0916999999#” Step three: Send the message to S SERIES Security Phone. When the LED light is on, setup is completed. Step four: S SERIES Security Phone will auto call back to the dialing number allowing one-way communication to monitor the live sounds of S SERIES Security Phone surrounding environment. -
Page 23: Forget Password
5-2 Charge the battery when power off Step one: All light indicators are off at this moment Step two: As shown in the diagram, insert the charger to the re-charge hole of the S SERIES Security Phone and connect the other end to the power outlet. -
Page 24: Chapter 6 Specification
Please read through this manual before using S SERIES Security Phone Suggestions • S SERIES Security Phone is designed for children age of three or above • Keep the phone in clean area • Do not expose the phone to liquid, wet or moisture environment •... - Page 25 Efficient Use Hold the S SERIES Security Phone as you would for any other phone. Do not hold the antenna when the phone is in use. Holding the antenna affects call quality, may cause the phone to operate at a higher power level than needed and shorten talk and standby times.
- Page 26 Electronic Devices Mobile phone may affect the operation of some implanted cardiac pacemakers or other medically implanted equipment. Do not place the phone over the pacemaker such as in your breast pocket. When using the phone, place it at your ear opposite the pacemaker. If a minimum distance of 15cm (16inches) is kept between the phone and the pacemaker, the risk of interference is limited.
- Page 27 and cause danger ● Keep the battery away from liquid ● Keep the battery metal away from other metal objects that may damage and short circuit the battery. ● Do not disassemble or modify the battery ● Do not store battery to temperatures in excess of (140 ) ℉...
