IMPORTANT SERVICE INFORMATION
Read this manual before attempting to setup or use this instrument. It contains important
information regarding safe installation and use. Keep this manual for future reference.
Also save the carton, packing and proof of purchase to simplify and accelerate any needed
action. If you need assistance or service, call (800) 888-8990 between 8:00 a.m. and 4:30
p.m. Pacific Standard Time, Monday through Friday. You can also visit our web site at:
http://www.nwbphones.com for technical support and information on our other products.
WARNING
To prevent fire or shock hazard, do not expose this product to rain or any type of excess
moisture. If accidentally dropped into water, the AC adaptor should immediately be
unplugged from the wall along with the telephone line cord.
THIS SYMBOL IS INTENDED TO ALERT THE USER OF
THE PRESENCE OF IMPORTANT OPERATING AND
MAINTENANCE (SERVICING) INSTRUCTIONS IN THE
OWNER'S MANUAL

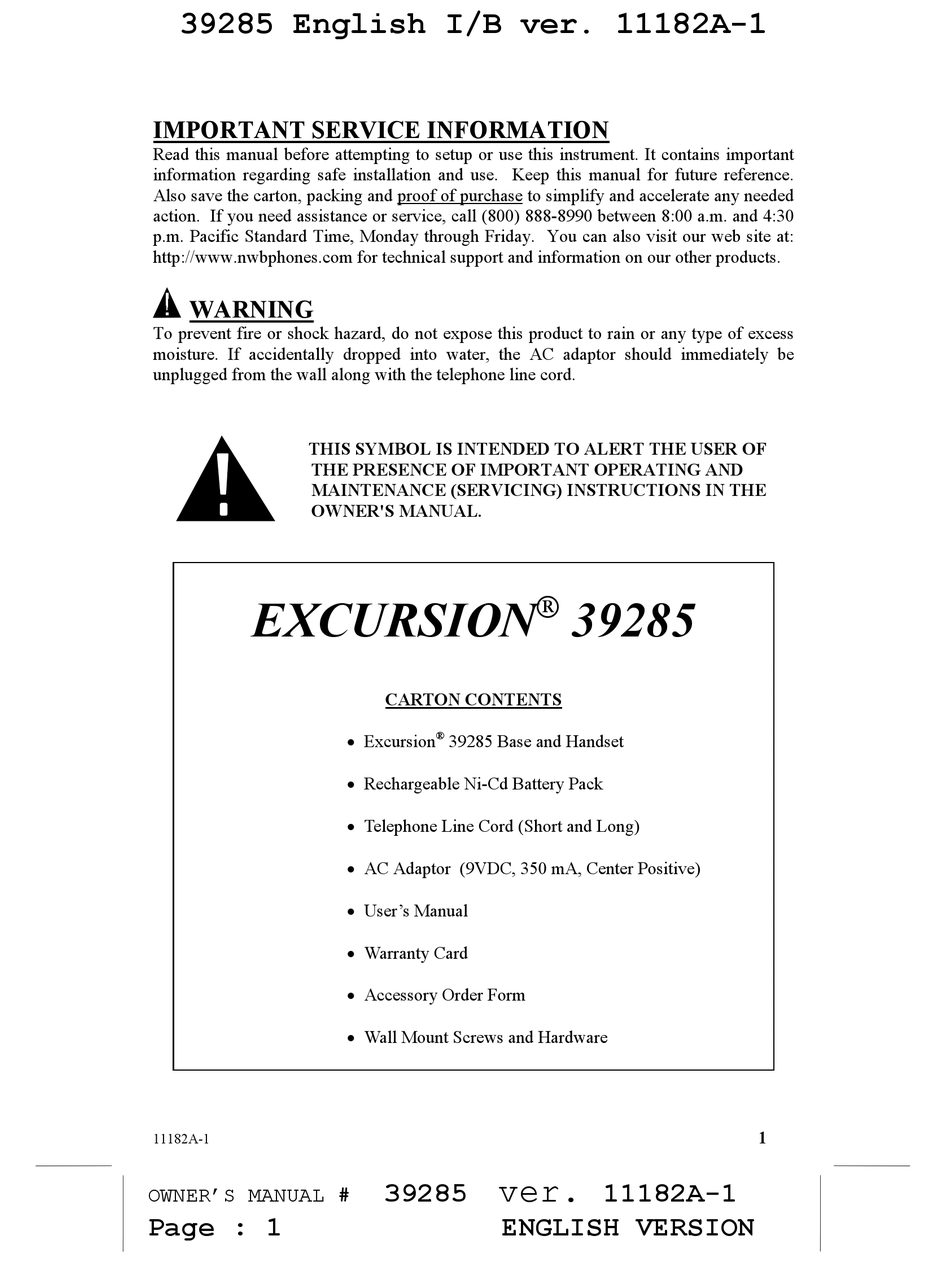

EXCURSION
11182A-1
OWNER'S MANUAL #
Page : 1
.
CARTON CONTENTS
®
• Excursion
39285 Base and Handset
• Rechargeable Ni-Cd Battery Pack
• Telephone Line Cord (Short and Long)
• AC Adaptor (9VDC, 350 mA, Center Positive)
• User's Manual
• Warranty Card
• Accessory Order Form
• Wall Mount Screws and Hardware
ver.
39285
ENGLISH VERSION
39285
11182A-1
1
Advertisement
Table of Contents
Related Manuals for Bell Phones EXCURSION 39285
Summary of Contents for Bell Phones EXCURSION 39285
-
Page 1: Important Service Information
39285 English I/B ver. 11182A-1 IMPORTANT SERVICE INFORMATION Read this manual before attempting to setup or use this instrument. It contains important information regarding safe installation and use. Keep this manual for future reference. Also save the carton, packing and proof of purchase to simplify and accelerate any needed action. -
Page 2: Table Of Contents
39285 English I/B ver. 11182A-1 TABLE OF CONTENTS Important Service Information......................1 Warning ..............................1 Carton Contents ..........................1 Important Safety Instructions......................3 Installation Precautions ........................4 Maintenance ............................4 Battery Cautionary Instruction ......................4 FCC Notice ............................4 Controls Diagram..........................6 Descriptions ............................7 Installation ............................8 Battery Installation........................8 Belt Clip Installation........................8 Wall Mounting ..........................8 Uninstalling the Wall Mount Bracket ..................9 Power Connection ..........................10... -
Page 3: Important Safety Instructions
39285 English I/B ver. 11182A-1 9. Do not overload wall outlets and SAVE THESE INSTRUCTIONS extension cords as this can result in IMPORTANT SAFETY the risk of fire or electric shock. INSTRUCTIONS 10. Never push objects of any kind into this product through cabinet slots as When using your telephone equipment, basic they may touch dangerous voltage... -
Page 4: Installation Precautions
39285 English I/B ver. 11182A-1 13. Avoid using a telephone (other than a codes for possible special disposal cordless type) during an electrical instructions. storm. There may be a remote risk of 3. Do not open or mutilate the battery. electric shock from lightning. - Page 5 Changes or modifications not expressly approved in writing by Northwestern Bell Phones may void the user’s authority to operate this equipment. Some cordless phones operate at frequencies that may cause interference to nearby TVs and VCRs;...
-
Page 6: Controls Diagram
39285 English I/B ver. 11182A-1 ® EXCURSION 39285 CONTROLS DIAGRAM Handset Antenna Talk Button In Use/Batt Low Scan Button Led Indicator INTCOM Button RE/PA Button Flash Button Volume Control Headset Jack Switch Ringer ON/OFF Tone Button Switch Memo Button Charge Terminals INT(Intercom) Flash Button... -
Page 7: Descriptions
39285 English I/B ver. 11182A-1 Charge Contacts – For charging the DESCRIPTIONS Battery Pack inside the handset. We HANDSET CONTROLS: recommend cleaning the Charge Contacts Handset Antenna - A fixed antenna. periodically with a damp cloth. In Use Batt Low LED Indicator – Lights BASE UNIT CONTROLS: up when the handset is in the talk mode. -
Page 8: Installation
39285 English I/B ver. 11182A-1 Volume Control Down Button – Press to 3. Insert the Ni-Cd battery pack into the decrease the volume level of the base unit battery compartment. 4. Replace the battery compartment speaker. cover by sliding it up towards the Volume Control UP Button –... -
Page 9: Uninstalling The Wall Mount Bracket
39285 English I/B ver. 11182A-1 1. Drill two holes with a vertical distance between the two marked positions of 3 Figure 3 " (100mm) as shown in Figure 8. 15/16 " 15/16 (100mm) Figure 5 (Figure 8) Drive a screw into each of the holes. Tighten them to the end of the screw lines, only leaving the smooth part of the screw Figure 6... -
Page 10: Power Connection
39285 English I/B ver. 11182A-1 (Figure 12) POWER CONNECTION CAUTION: You must use a Class II, 120 Volt AC / 9 Volt DC adaptor that delivers at least 350 mA. The center tip must be positive and the plug must correctly fit the unit’s DC 9V jack. -
Page 11: Receiving A Call
39285 English I/B ver. 11182A-1 Using the Base unit unit and the ringer switch is set to • “OFF”, the handset will not ring but Press the SPK-PHONE button on the the In Use LED Indicator will blink. base unit. The Speakerphone LED Set switch to “ON”... -
Page 12: Intercom Function
39285 English I/B ver. 11182A-1 • Press the SPK-PHONE button. Transferring Calls from the Handset to • Listen for a dial tone. Base Unit • Press RE/PA button to automatically • During a phone conversation through dial the last telephone number you the handset, press the INTCOM called using the base unit. -
Page 13: Memory Dialing
39285 English I/B ver. 11182A-1 • the call from the base unit to the Press the MEMO button again. handset. • Dial the index number, from 0 to 9 • If the handset is out of the base unit either from the handset or the base charge cradle, press the INT button on unit, where you want to store that the base unit. -
Page 14: Security
39285 English I/B ver. 11182A-1 • Multi-Channel Access Press the SPK-PHONE button. • Press the MEMO button. Your cordless telephone lets you select a • Press the index number for the number channel from the 40 frequencies you have stored using the base unit. available to transmit signals between the The stored number will be dialed Base Unit and Handset. -
Page 15: Improving Cordless Reception
39285 English I/B ver. 11182A-1 Interference (RFI) is sometimes Improving Cordless Reception generated by these appliances, which Follow these guidelines to improve cordless can cause degradation in cordless sound quality: reception. • Keep the handset batteries charged as • It is closest to the center of your home much as possible. - Page 16 39285 English I/B ver. 11182A-1 Received signal • Make sure that the Battery Pack in the handset is fully charge. Flutters or fades • The handset is not too far from the base unit. • No link between You may have taken the handset at a distance away from the base that is the base and beyond its normal operating range.
- Page 17 39285 English I/B ver. 11182A-1 07252A-1 ver. 36287 07252A-1 OWNER’S MANUAL # Page: 17 ENGLISH VERSION...
