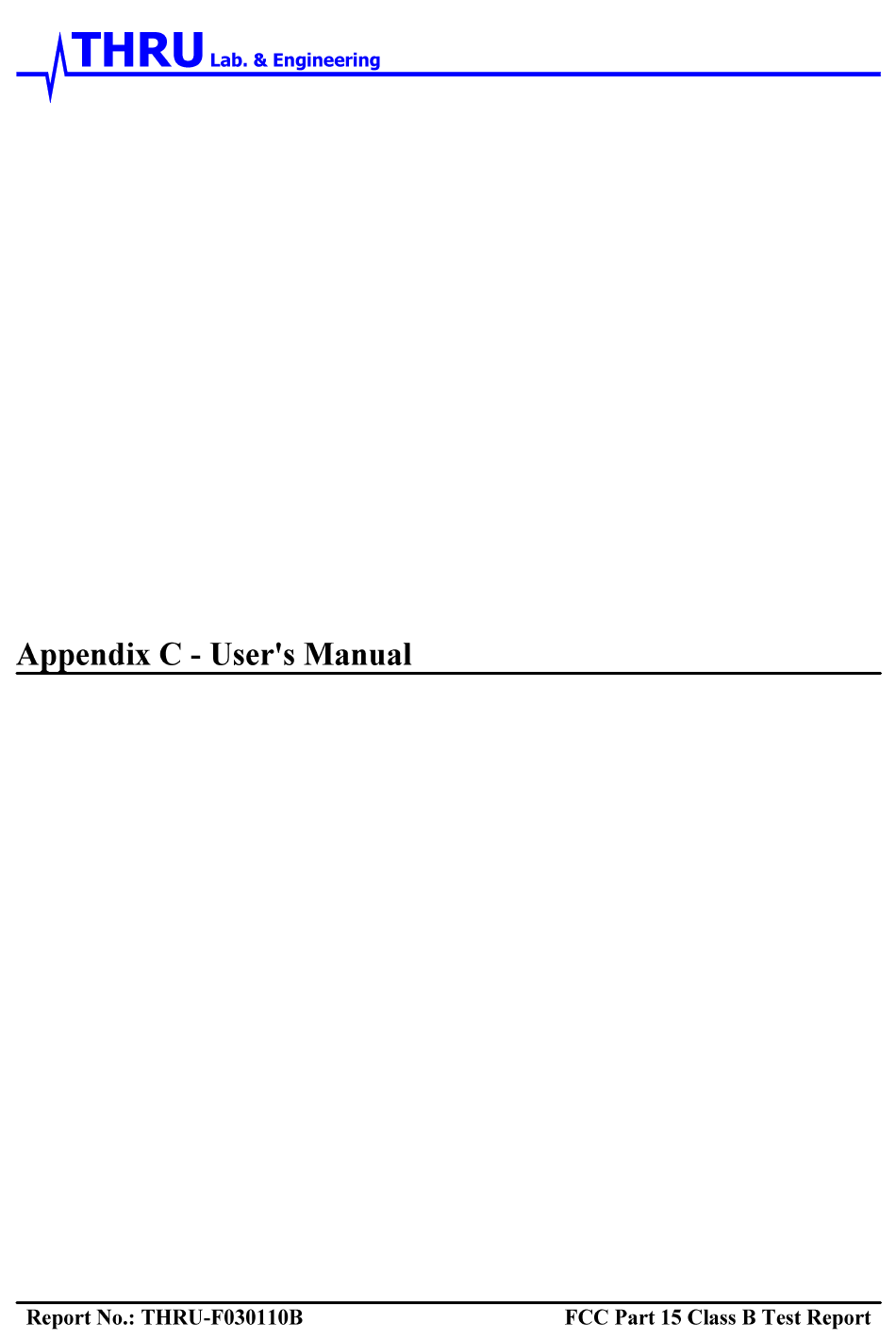

  • Page 2 wv~lyGvmGh{{vyul€G G G G wv~lyGvmGh{{vyul€ wv~lyGvmGh{{vyul€ wv~lyGvmGh{{vyul€ DATE : Dec. 27. 2002 Federal Communications Commission Authorization and Evaluation Division 7435 Oskland Mills Road Columbia, MD 21046 To Whom It May Concern : We the undersigned, hereby authorize THRU Lab & Engineering on our behalf, to apply to the FEDERAL COMMUNICATIONS COMMISSION on our equipment.
  • Page 3 mjjGuv{pjlG G G G mjjGuv{pjl mjjGuv{pjl mjjGuv{pjl / / / / / / / / / / / / / / / / / / / / {opz {opzGkl}pjlGjvtwsplzG~p{oGwhy{GX\GvmG{olGmjjGy|slzUG G {opz {opz Gkl}pjlGjvtwsplzG~p{oGwhy{GX\GvmG{olGmjjGy|slzUG G Gkl}pjlGjvtwsplzG~p{oGwhy{GX\GvmG{olGmjjGy|slzUG G Gkl}pjlGjvtwsplzG~p{oGwhy{GX\GvmG{olGmjjGy|slzUG G / / / / / / / / vwlyh{pvuGpzGz|iqlj{G{vG{olGmvssv~punG{~vGjvukp{pvuza vwlyh{pvuGpzGz|iqlj{G{vG{olGmvssv~punG{~vGjvukp{pvuzaG G G G...

  • Page 4: Digital Voice Recorder

    USER’S GUIDE Digital Voice Recorder MP3 PLAYABLE (TDR-2128M)
  • Page 5 - Contents - Features ------------------------------------------------------------------------------------ Locations of Function and Control Button ------------------------------------------ LCD Description --------------------------------------------------------------------------- Battery Installation ------------------------------------------------------------------------ Battery Life Time -------------------------------------------------------------------------- Power On & Off ---------------------------------------------------------------------------- Recording ------------------------------------------------------------------------------------ Playback ------------------------------------------------------------------------------------- Erasing --------------------------------------------------------------------------------------- Adjusting Volume -------------------------------------------------------------------------- Selecting the File number ------------------------------------------------------------------ Hold Function ------------------------------------------------------------------------------- Setting the VOS Mode ------------------------------------------------------------------- Setting Mic Sensitivity --------------------------------------------------------------------...
  • Page 6 Features Preengaged Recording Enables to record at any time when you want. Alarm Sound Function You can hear the alarm sound at any time when you want. Recording up to 3 groups Enables to record 99 messages into each group. Automatic Power Off The unit will be automatically turned off when not in use.

  • Page 7: Locations Of Function And Control Buttons

    Locations of Function and Control Buttons HAND STRAP HOLE USB PORT BUILT-IN MIC Left Side Front Right Side FF/INDEX REC/PLAY LED MICROPHONE JACK PLAY/STOP EARPHONE JACK LCD DISPLAY REWIND HOLD VOLUME (+, -) ERASE REC/STOP FOLD/REPEAT MODE/PAUSE Back SPEAKER...

  • Page 8: Lcd Description

    LCD Description Folder Message Number Alarm Amount of Recorded Time and Recording Time Left Preengaged Record MIC Sensitivity All Repeat One Folder Repeat Recording Mode Hold Operation Graphic Section Repeat MP3 Folder Remaining Battery Capacity Equalizer mode...

  • Page 9: Battery Installation

    Battery Installation Be sure to replace batteries at stop mode. 1.Open the battery cover. Press and slide the battery cover off. 2. Install two(2) AAA size batteries and slide the cover back into place. * Battery should be LR03 or equivalent(AAA Size or UM-4) 3.
  • Page 10 1. Power On & Off - Set the HOLD switch to “Off” mode and press the REC/STOP button for about one second. Then, LCD is displayed, which means power on. - Automatic power off : the unit will be automatically turned off within one minute when not in use without pressing any button.
  • Page 11 3. Playback - Release the HOLD button and select your desired message number by moving upwards(zz) or downwards( ) the button located on the top/side of unit. - If you press the z/? button to vertical direction, the LED lights in Green color to playback the recorded message.

  • Page 12: Adjusting Volume

    4. Erasing 1) Erasing one message - Select the recorded number you want to erase. - Press the ERASE button. - The number of recorded message will blink and the recorded message is heard for 3 seconds. - Press the ERASE button again. - To cancel the erasing, press any button except for the ERASE button.
  • Page 13 9. Repeating the Playback - Press the MODE/PAUSE button 3 times and then, LCD displays “REP” letter. - At that time, select one of the “OFF”, “FOLD” or “ALL” by the Volume button and press the FOLD/REPEAT button. . In order to repeat the recorded massages in one folder, please select “FOLD”. .

  • Page 14: Connecting External Equipments (Optional)

    13. Connecting External Equipments (Optional) Recording from the external equipments into the voice recorder You can record by connecting an external cable between the MIC jack of the voice recorder and the earphone jack of an external equipment. Recording from the voice recorder into the external equipments - Connect an external cable between the EAR JACK of the voice recorder and the MIC IN, or the external input jack of an external equipment.
  • Page 15 14. USING MP3 Player 1. Getting to start MP3 Player # & 2. Playing MP3 File - Release the HOLD button and select your desired music file by moving the upward(zz) or downward( ) button. - If you press the z/? button to vertical direction, the LED lights in Green color to playback the music.
  • Page 16 6. Repeating the section playback - During playback, press the FOLD/REPEAT button which means the repeat function is being started “ ”. Then, if press the FOLD/REPEAT button again after a certain section, the repeat function is completed “ ” which means the repeating section is set-up and the unit will repeat in the selected section.

  • Page 17: Installation Of Manager Program

    Installation of Manager Program System Requirement Computer : Pentium or IBM compatible system with USB support Memory : 64MB or higher OS : Windows 98/ME/2000/XP Hard Disk : At least 100 MB free disk space Playback : Soundcard, Speaker Recording : Sound Card, Microphone Insert the Manager program CD into CD-ROM drive.
  • Page 18 - Fill the blanks and click “Next”. - Choose your Destination Location and click “Next”. - Click “Next” on Start Copying Files Window. - Click “Finish” on InstallShield Wizard Complete Window.
  • Page 19 Click “Yes, I want to restart my computer now” on reboot windows Click “Finish” then, Driver installation is completed.

  • Page 20: Using Manager Program

    Using Manager Program 1. Composition PLAY Volume Control PAUSE Time Recording & Playback Status Display STOP Menu Play Bar Channel Computer’s Computer’s Folder File List Voice Recorder / MP3 Folder List Download Icon Upload Icon Voice Recorder / MP3 File List Displays both whole memory and Remaining memory of the recorder / MP3 2.
  • Page 21 4. To Download files - Select a folder of the computer folder list. - Select a file (voice, data or MP3 file) of your computer file list. (If you play the data file in the voice recorder, LCD displays “FlLE”) - Click the Download Icon.

  • Page 22: Troubleshooting

    Troubleshooting Check following items first if you find any functional matter. In case of no LCD display Did you check the battery capacity? Replace batteries. Are both polarities of the battery loading in right way? Load batteries in each correct + / - position. In case of no recording Isn’t it at Hold position? Set Hold switch off.
  • Page 23 Cautions General - Dropping and other shock or pressure to the cabinet can cause damage. - Pressure to the LCD may cause permanent damage to the performance of the LCD. - Always avoid high heat from any source. Leaving the unit in direct sunlight or in a hot car (as in Summer) can damage the unit.

  • Page 24: Specifications

    Specifications Model TDR-2128M Voice Recording Time About 37 hours 128MB Number of Message 3 Folders 99 messages & MP3 Folder Frequency Range for 300Mz ~ 3,500Mz Recording / Playback Out Power 100mW (T.H.D 10%) Input Audio Analog In (-60dB), 3.57 Output Earphone(Mini Plug/Stereo) IMP Over 16 Ohms, 3.57...

  • Page 25: Fcc Notice

    FCC NOTICE THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED OPERATION. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 26 GUARANTEE DIGITAL MODEL TDR-2128M PRODUCT RECORDER SALES DATE ADDRESS CUSTOMER NAME SINCERELY ADDRESS SALES AGENCY AGENCY NAME SIGN...
