Summary of Contents for Eli ADF-WG-A53
-
Page 1: User Guide

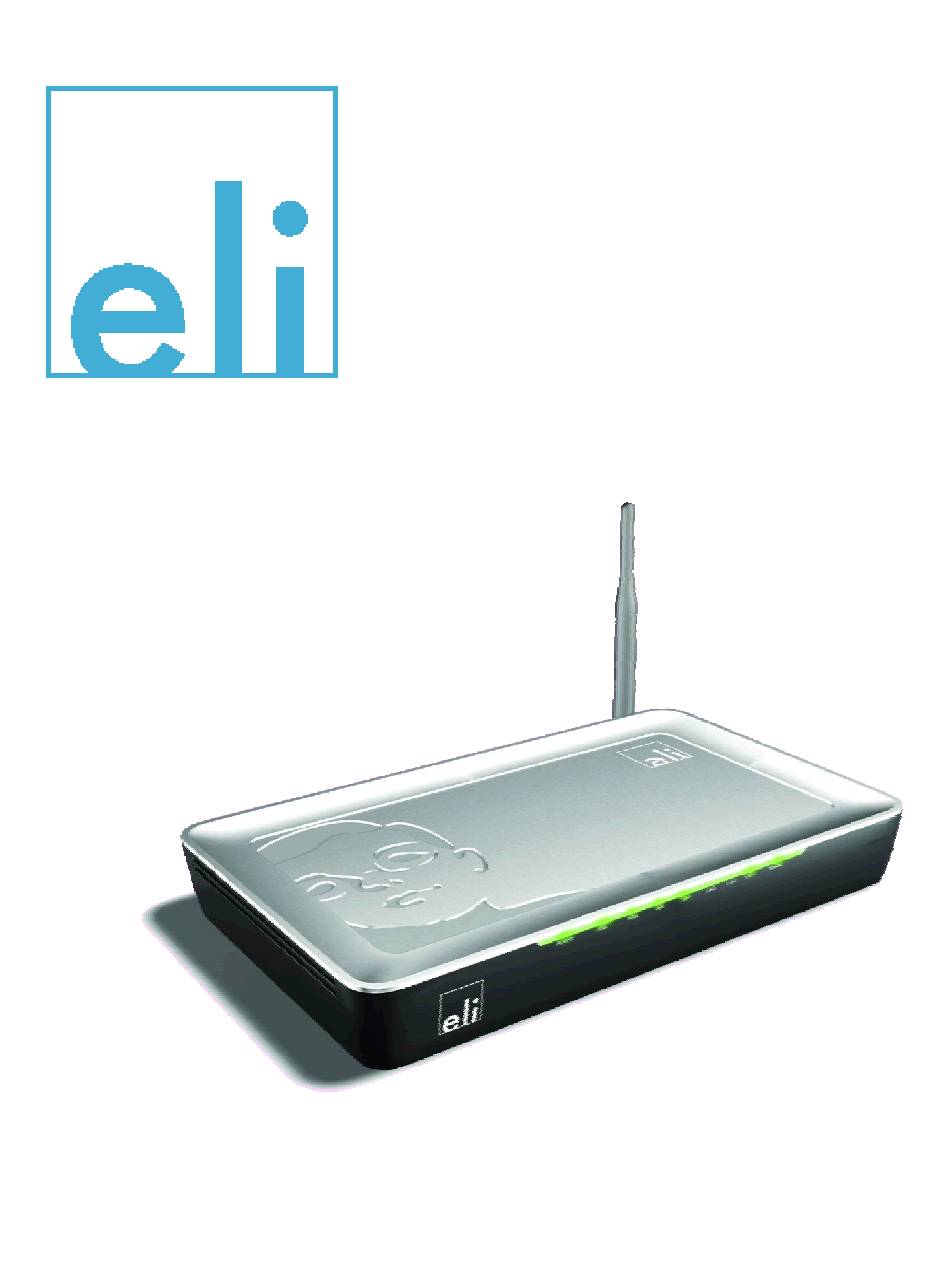

Ultimate Home Broadband Security appliance. User Guide... -
Page 2: Content Filtering
DSL/Cable Modem, Wireless Gateway and 4-Port Switch Fully integrated wireless and wired Gateway – Eli combines DSL or Cable modem or WAN port with an 802.11G wireless gateway and 4-Port switch to offer users the greatest number of connectivity options without the need for expensive additional hardware. -
Page 3: Getting To Know Eli
Eli User Guide Getting to know Eli Eli’s ports, including all cables connections, are located on the rear panel of the unit. Back panel Eli’s ports and switches Standby Enables traffic to flow through WAN (Wide Area Network – the... -
Page 4: Front Panel
On when there is an upgrade in progress. There is no connection to the Internet when an upgrade is in progress. Do not switch off Eli while an upgrade is in progress! If the upgrade light is on for longer than 10 minutes, please call the helpdesk. -
Page 5: Installing Eli
If you want to connect more than one PC, repeat this step for your other PCs. You can connect up to 4 PCs to the internal switch on Eli. d) Connect the power adapter to the Power port on the rear panel of Eli, then plug the power adapter into a power outlet. -
Page 6: Set Up Your Internet Connection
Eli User Guide Set up your internet connection. Now that your PCs will connect to the Internet via Eli, Eli will provide them with individual IP addresses. You will now configure your PCs to accept the IP addresses that Eli will provide. - Page 7 Click Close in the Local Area Connection Status window. Close the Network Connections window. You have now successfully configured your PC! If you want to use additional PCs to connect to the Internet with Eli, repeat these steps with each of the PCs. TEST.doc...
- Page 8 Eli User Guide Configure Eli Once you have configured your PC to connect to Eli, you can configure your connection to the Internet. Please make sure you have your Internet connection information provided by your ISP ready. You can enter them into the table below for convenience.
-
Page 9: Using Pppoe With Eli
On the following screen, enter your username and password provided by your ISP. Re-enter your password to verify. Click OK. Click on change the settings of the external interface of your Eli and check if the radio button PPPoE is selected. If not, click Toggle Mode to select it. Click OK. -
Page 10: Using Dhcp With Eli
You can now access the Internet using Eli! c. Using a static IP address with Eli To use a static IP address with Eli, click on change the settings of the external interface of your Eli. On the following screen, click on Mode. The mode will change from automatic to manual. You can now enter your IP address information into the fields IP Address, Network Mask, and Default Router. -
Page 11: Change The Configuration Of Eli
To configure Eli, open your browser and enter http://my.trusteli.com into the address bar. Enter your username and password on the screen. Once you successfully logged in, you get the following welcome screen. The menu on the left gives you access to all configuration options for Eli: General Logout, Change your password. -
Page 12: Wlan Settings
In this section you can configure your Wireless LAN (WLAN) options and set up a secure connection to another Eli over the Internet by creating a VPN (Virtual Private Network). Click on Router in the menu on the left. The menu will expand to show the following options: WLAN-Settings and VPN-Settings. - Page 13 When you have finished configuring your wireless network, click Save. Your settings will be saved to Eli. You can now configure your wireless clients to use your wireless network. For instructions on how to configure a Windows XP PC, please see page X in this manual.
-
Page 14: Vpn Settings
Eli User Guide VPN-Settings To configure a VPN between this Eli and another Eli you manage, click on VPN-Settings. The following screen appears: To start setting up your VPN, check the checkbox Activate VPN Support. Then click [Create VPN]. The following screen appears: Enter a name and a description for your network. - Page 15 To add another Eli to your VPN, follow these steps: 1. Enter the Customer ID for the other Eli. 2. Enter the Password. 3. Enter a Description for this Eli. The name must not contain any spaces. 4. Click Add. The Eli is added to your VPN.
-
Page 16: Spam Protection
Eli and configuring Eli to scan your emails and email attachments for viruses. If a virus is found, Eli will notify you and send you the header of the message. The mail and any attachments will be deleted. -
Page 17: Virus Protection
Each policy will open a number of ports on Eli to allow you to access the Internet. You will be completely hidden behind Eli, invisible to anyone on the Internet who might be looking for a way to do harm. - Page 18 Eli User Guide None of the policies permit the implementation of a server behind Eli. Click on Firewall. The menu expands to show the following option: System Policies. You are now in the firewall policy section of your configuration settings.
-
Page 19: Parental Control
Eli User Guide Parental Control In this section you can configure your URL filtering settings. You have a choice of 60 different content categories to which you can block access. Click on Parental Control. The menu expands to show the following option: URL Filtering. -
Page 20: Setting Up A Wireless Network With Eli
Eli User Guide Setting up a wireless network with Eli You can use Eli to set up a wireless network at home and give Internet access to wireless devices in your home. Configuring Eli as a wireless network access point Step 1: Configure Eli For a detailed description of the WLAN configuration on Eli, refer to page X in this manual. - Page 21 6. In the next window, select Set up a new wireless network. Click Next. 7. In the ensuing window, enter the ESSID you entered on your Eli, if you have entered one. Select Manually assign a network key. Click Next.
- Page 22 Eli User Guide 8. In the next window, enter the key that Eli generated for you when you set up the wireless network on Eli. You can copy and paste it from Notepad if you saved the key in a text file.
-
Page 23: Contacting Technical Support
Eli User Guide Contacting Technical Support Eli Technical Support over the Telephone: Addr: 15000 Commerce Parkway, Suite U Mount Laurel, New Jersey 08054 Phone: +1-856-222-4222 Fax: +1-856-222-0102 E-mail: rsmith@trusteli.com Eli Technical Support over the Internet: http://www.trusteli.com. Warranty The identification of the product:... - Page 24 The identification of the product: Product Name : ELI-ADSL - 54Mbps Wireless ADSL Firewall Router Model : ADF-WG-A53 / ADF-WG-B53 / ADF-WG-A54 / ADF-WG-B54 Technical Support in the US: ELECTRONIC LIFESTYLE INTEGRATION, INC. Address 15000 Commerce Parkway, Suite U Mount Laurel, New Jersey 08054...
