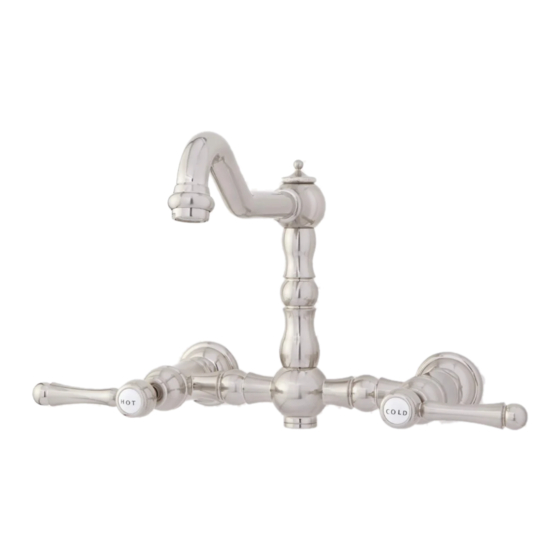

DELILAH WALL MOUNT KITCHEN FAUCET
BEFORE YOU BEGIN
We recommend consulting a professional if you are
unfamiliar with installing plumbing fixtures. Signature
Hardware accepts no liability for any damage to the
faucet, plumbing, sink, counter top, wall, or for personal
injury during installation.
Observe all local plumbing and building codes.
Unpack and inspect the faucet for shipping damage. If
any damage is found, contact our Customer Relations
team at 1-866-855-2284.
GETTING STARTED
Ensure that you have gathered all the required
materials that are needed for the installation.
For these instructions, it is assumed that the old
faucet has been completely removed and any
necessary repairs or modifications to the water
supply have been completed.
SKU(s): 906111, 906112, 906210, 906211
TOOLS AND MATERIALS:
Plumbers
Thread
Tape
Sealant
Adjustable
Wrench
PLANNING
Use the faucet's PDF specification sheet as a refer-
ence when planning your installation. The specifica-
tion sheet can be found and downloaded from the
product page on our website.
Because the faucet specification
measurements are approximate and slight
variations may occur, we highly recommend
performing any rough-in procedures with
the faucet on site.
Delilah Wall Mount Kitchen Faucet Installation Instructions
Phillips
Screwdriver
Pencil
Drill
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Signature Hardware DELILAH 906111
Summary of Contents for Signature Hardware DELILAH 906111
-
Page 1: Before You Begin
SKU(s): 906111, 906112, 906210, 906211 DELILAH WALL MOUNT KITCHEN FAUCET TOOLS AND MATERIALS: BEFORE YOU BEGIN We recommend consulting a professional if you are unfamiliar with installing plumbing fixtures. Signature Hardware accepts no liability for any damage to the faucet, plumbing, sink, counter top, wall, or for personal Plumbers Thread Phillips... - Page 2 DELILAH WALL MOUNT KITCHEN FAUCET Installation 1. Prepare the in-wall plumbing for faucet installation. 3. Attach the couplers to each of the installed threaded 1/2” male inlets will need to be installed 8” apart nipples. Apply plumber’s tape or thread sealant to the on-center to make the connection to the faucet.
- Page 3 DELILAH WALL MOUNT KITCHEN FAUCET 5. To attach the handles to the faucet, remove the 7. Once the plug is removed, attach the side spray hose decorative hot and cold indicators from each handle. to the outlet. Tighten firmly to ensure a water-tight seal. Slide the handles onto each stem and tighten the screws to secure using a Phillip’s screwdriver.
- Page 4 DELILAH WALL MOUNT KITCHEN FAUCET 9. Determine a location to mount the hand shower 11. Remove the aerator from the spout and turn the cradle on the wall. Remove the cradle from its base by faucet on. Ensure that both hot and cold water are unthreading it.
