Summary of Contents for Sarotech CUTIE DS FHD-181

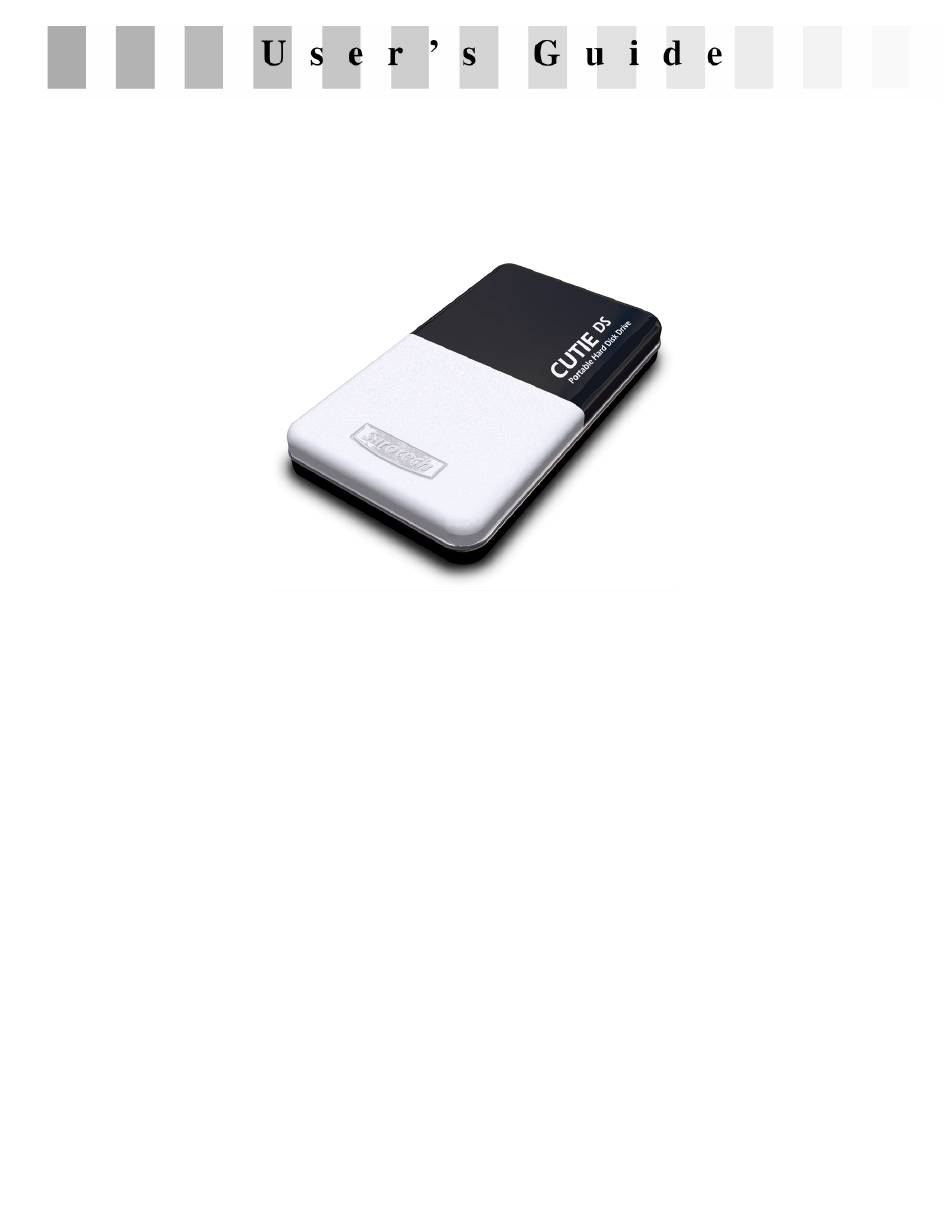

- Page 1 INSTALLATION MANUAL We strongly recommend reading the MANUAL before using the product...
-
Page 2: Fcc Compliance
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ■ Consult the dealer or an experienced radio/TV technician for help. WARNING (Part 15, Section 15.21) Changes or modifications not expressly approved by the sarotech could void the user’s authority to operate the equipment. -
Page 3: Table Of Contents
Information FCC Compliance -------------------------------------------------------------------------------------- 1 Information ---------------------------------------------------------------------------------------------- 2 No.1 ■ How to Make USB products -------------------------------------------------------- 3 ■ How to use USB power cable ------------------------------------------------------ 6 No.2 Contents of FHD-181 --------------------------------------------------------------------- 8 No.3 Cautions for USB 2.0 --------------------------------------------------------------------- 8 No.4 System Requirement ---------------------------------------------------------------------- 8 No.5 Driver Installation --------------------------------------------------------------------------- 9... - Page 4 1. USB Fine out the 2 USB port in computer, connect the offered USB power cable to USB port in computer. And for another USB port, connect to the USB cable also for supplying the electricity. 2. IEEE 1394 If the IEEE 1394 port of notebook computer is 4 pin port or be used as CardBus way, the power is not supplied to IEEE 1394 Bus.
-
Page 5: No.2 Contents Of Fhd-181
2. Contents of FHD-181 1) FHD - 181 2) Driver Installation CD 3) Bag 4) Interface cable 5) Manual 6) USB power cable (if USB bus power doesn't work, please connect it) 3. Cautions for USB 2.0 1. If the USB 2.0 product is connected to USB 1.1 Host Adapter, it will be operated as speed 1.1 (12Mbps) 2. -
Page 6: No.4 System Requirement
you have to use USB 2.0 Host Adapter. 4. System Requirement ■ 586 Pentium or greater or MAC ■ USB port has to be possible to use ■ Included CD-ROM drive or the driver should be possible to be downloaded from internet web site. - Page 7 3) Click “Next” button after operates “Install Shield Wizard”...
- Page 8 4) Click “Next” button after select “I accept the terms of the license agreement” 5) When you see the message of “InstallShield Wizard Complete” then click “Finish” button to complete the driver installation.
-
Page 9: Windows Me
6) Connect the FHD-181 to the USB port in computer. 7) The drive icon will be installed in "My computer" 2. Windows ME 1) Connect the FHD-181 to the USB port in computer 2) Finding out the new hardware "USB Mass Storage Device", the driver will be installed automatically. -
Page 10: Windows 2000
4) <usbntmap.sys.> etc..the files can be required. The files are in the base2.cab in WIN9X folder in Windows ME original CD. 3. Windows 2000/XP 1) Connect the FHD-181 to the USB port in computer 2) Finding out the new hardware "USB Mass Storage Device", the driver will be installed automatically. -
Page 11: Windows Xp
4. MAC For MAC OS 9.x or greater, the driver will be recognized without any other driver. 5. Checking the driver installation Make sure if the driver is connected successfully on the OS position. 1) Windows 98 Control panel -> System -> Device manager -> Hard Disk Controller... - Page 12 2) Windows ME Control panel -> System -> Device manager -> Universal serial Bus Controllers...
- Page 13 3) Windows 2000/XP Control panel -> System -> Hardware -> Device manager -> Universal serial Bus Controllers...
-
Page 14: How To Stop The Product
6. How to stop the product If you want to stop and separate the product when you are using it, please follow the below 1) Windows 98/ME/2000/XP Click the "tray icon" under the "start" and then you can find the below drawing Read the message and click ok . -
Page 15: Installation Of Ieee 1394
6-1 Installation of IEEE 1394 Caution 1. Turn on the power to satisfy the plug &play function of window and then connect to the IEEE1394 in computer 2. If the IEEE 1394 port has 4 pins or using Card Bus way of notebook computer, the power can not be supplied. -
Page 16: Windows Me
-> System --> Hardware -> Device manager -> Storage device --> IEEE 1394 Disk 2. Windows ME 1) Booting Windows ME 2) Connect the IEEE 1394 cable to the FHD- 255 of IEEE 1394 port in computer 3) Make sure if the hard disk icon is appearing in "My computer"... -
Page 17: Windows 2000/Xp
Checking the installation : After finishing the installation, please check if the below things are showing up. Control panel --> System --> Device manager -> Hard disk model in Disk drive Control panel -> System -> Device manager --> Storage device --> IEEE 1394 Disk Control panel ->... - Page 18 Checking the installation : After finishing the installation Control panel -> System --> Hardware -> Device manager -> Disk drive --> Sarotech Co._Ltd. FLEX IEEE 1394 SBP2 Device...
-
Page 19: Mac Os
4. MAC OS If it is over MAC 8.6 and over Firewire enabler 2.7, it will be installed automatically without any special driver. Caution : 1. Should be over MAC OS 8.6 2. The hard disk which doesn't have FDISK and FORMAT, can not be recognized 3. -
Page 20: Driver Installation Of Ieee 1394+Usb Combo
5-3 Driver installation of IEEE 1394 + USB Combo Please refer to the USB 2.0 driver installation on "No. 5 - Driver installation" and also refer to the driver installation of IEEE 1394 6. Please check when you have some troubles 1. -
Page 21: Specification
Specification Model : FHD-181 Interface : USB 2.0 / IEEE 1394a Data transmission speed : 480Mbps(Max) / 400Mbps(Max) Size : : 61.4mm x 16.3mm x 104mm(W x H x D) Weight : 120g(with HDD) Power : Interface power or Adapter Support OS : USB 2.0 - Windows 98/98 SE/ME/2000/XP, Mac OS 9.x/X.x IEEE 1394 a - Windows 98 SE/ME/2000/XP, Mac OS 8.6/9.x/X.x...
