Seametrics PT35 Instructions

Dual pulse timer

Download this manual

PT35

DUAL PULSE TIMER

INSTRUCTIONS

Bright LED Display

+ visible in low light

Setting Knob

+ increase clockwise

+ decrease counter-clockwise

Easy-Off Cover

Meter Input Connector

ISO

9 0 0 1 : 2 0 0 8

CERTIFIED COMPANY

Input Indicator Light

Test Buttons

Force One

Timed Output

Pre-Wired Outputs

and Power Cord

Need help?

Do you have a question about the PT35 and is the answer not in the manual?

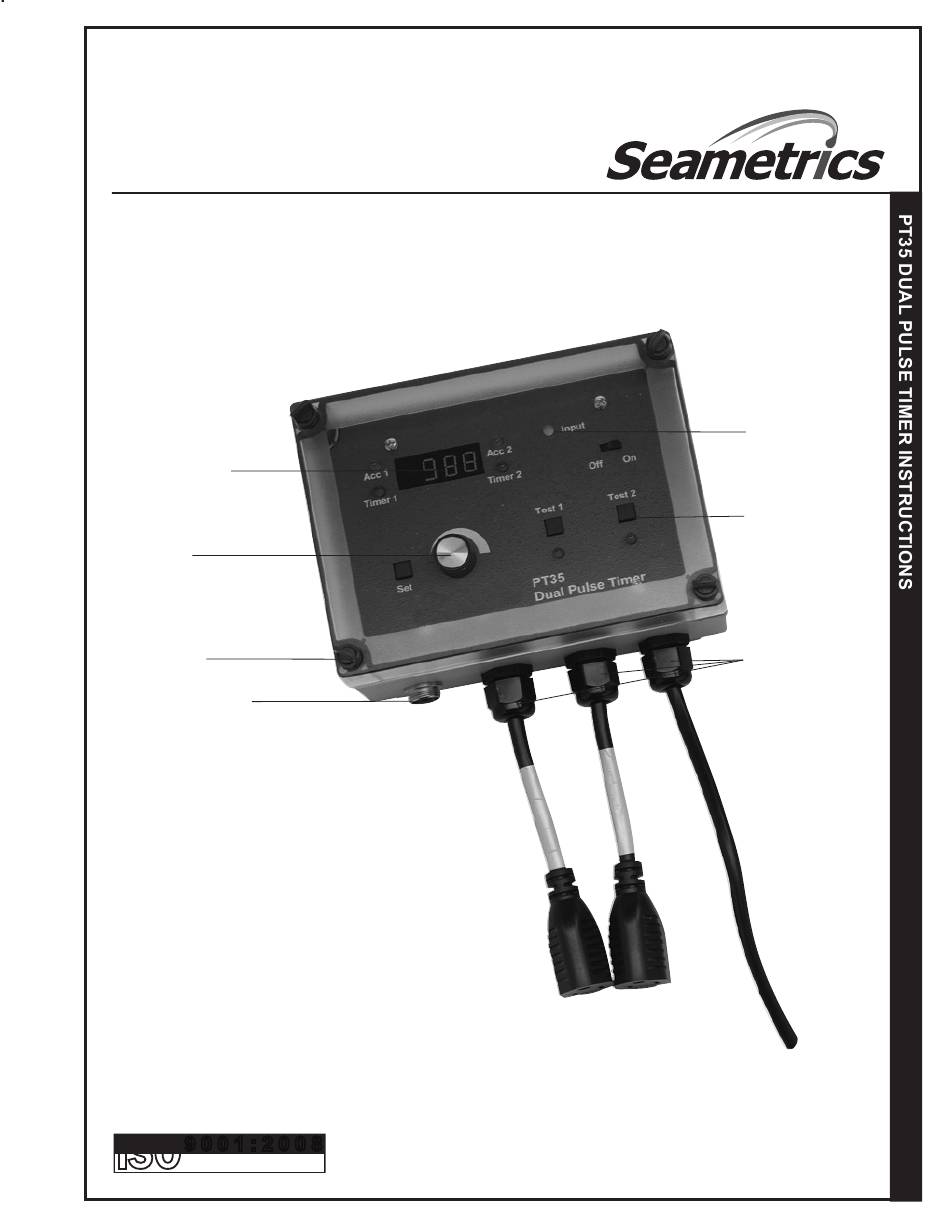

Page 1 PT35 DUAL PULSE TIMER INSTRUCTIONS Input Indicator Light Bright LED Display + visible in low light Test Buttons Force One Timed Output Setting Knob + increase clockwise + decrease counter-clockwise Easy-Off Cover Pre-Wired Outputs and Power Cord Meter Input Connector...
Page 2: General Information
(e.g. Seametrics MJE meters), or insertion flow sensors (e.g. dosing applications, most often in cooling towers and boilers. Seametrics IP, TX, and EX Series). The PT35 serves as either a single or a dual timer, depending SPECIFICATIONS* on whether one or both of its independent accumulators and timed outputs are used.
Page 3 INSTALLATION and OPERATION INSTALLATION How To Determine Accumulator Setting(s): If the meter pulses once ever y gallon, set the Setting. Using the thumb screws, remove the front cover. accumulator for the number of gallons desired between timer cycles. For meters with multiple pulses Press the SET button.
Page 4: Troubleshooting
TROUBLESHOOTING Problem Probable Cause Try... Unit does not have power Check for power at the cord and outlet On/Off switch is fully in “On” position, but display is not lighted Fuse may be blown Remove front panel and check fuse. If it is There is power, the blown, replace with a 3AG-10A-SB fuse On/Off switch is fully...
