Opticon BTE Super Power Quick Installation Manual

Oticon Radio Model - Quick Installation Guide

Radio Model Name:

BTE Super Power
The BTE Super Power radio model is a low power, inductive radio transceiver working at 3.84 MHz consisting of a Digital-Signal-Processor (DSP), a radio Front-
End (FE), memory, antenna coil and smaller components mounted on a flexible Printed-Circuit-Board (PCB) and intended to be installed as a module into Oticon
wireless hearing aid devices only. The module also has all voltage regulators included inside the DSP and FE. The module requires a battery, one or two

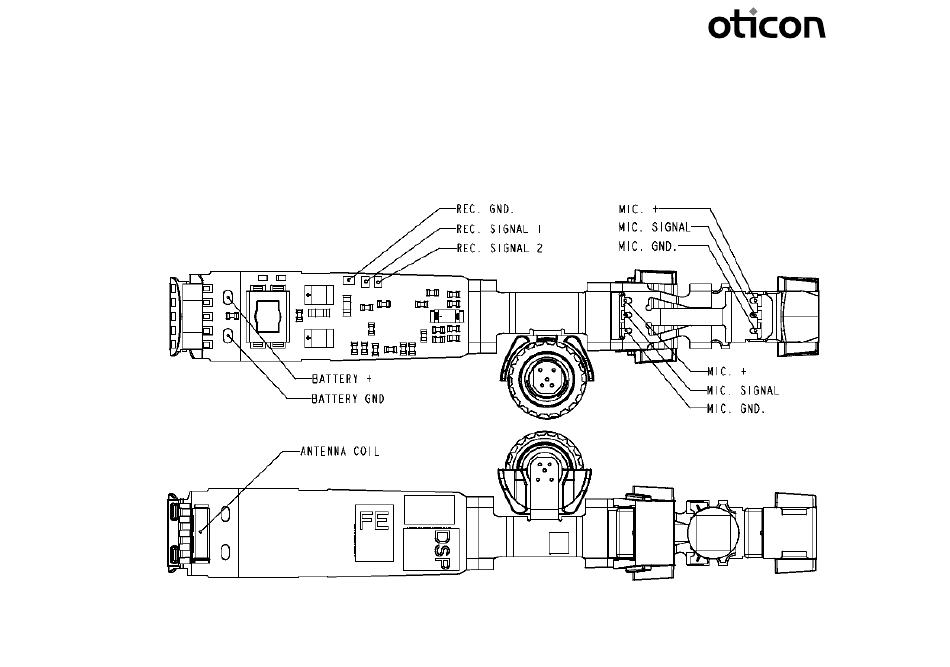

microphones and an audio receiver to be attached and must be mounted in an external plastic shell. The module is depicted below with its main components and
connections:
