Cautions:
Precautions and maintenance
● For indoor use only
● To avoid risk of fire or electric shock, do not expose the unit to moisture or condensation.
● To avoid overheating, do not block the ventilation holes on the back of the Digital Photo
Frame.
● Keep the Digital Photo Frame out of direct sunlight.
● Always use the eject buttons on the memory storage card slots to remove the storage
cards.
● Do not dismantle the Photo Frame. There is a risk of electric shock and there are no
user-serviceable parts inside. Dismantling the Digital Photo Frame will void your
warranty.
proFrame.3
Advertisement
Table of Contents
Summary of Contents for Promate proFrame.3

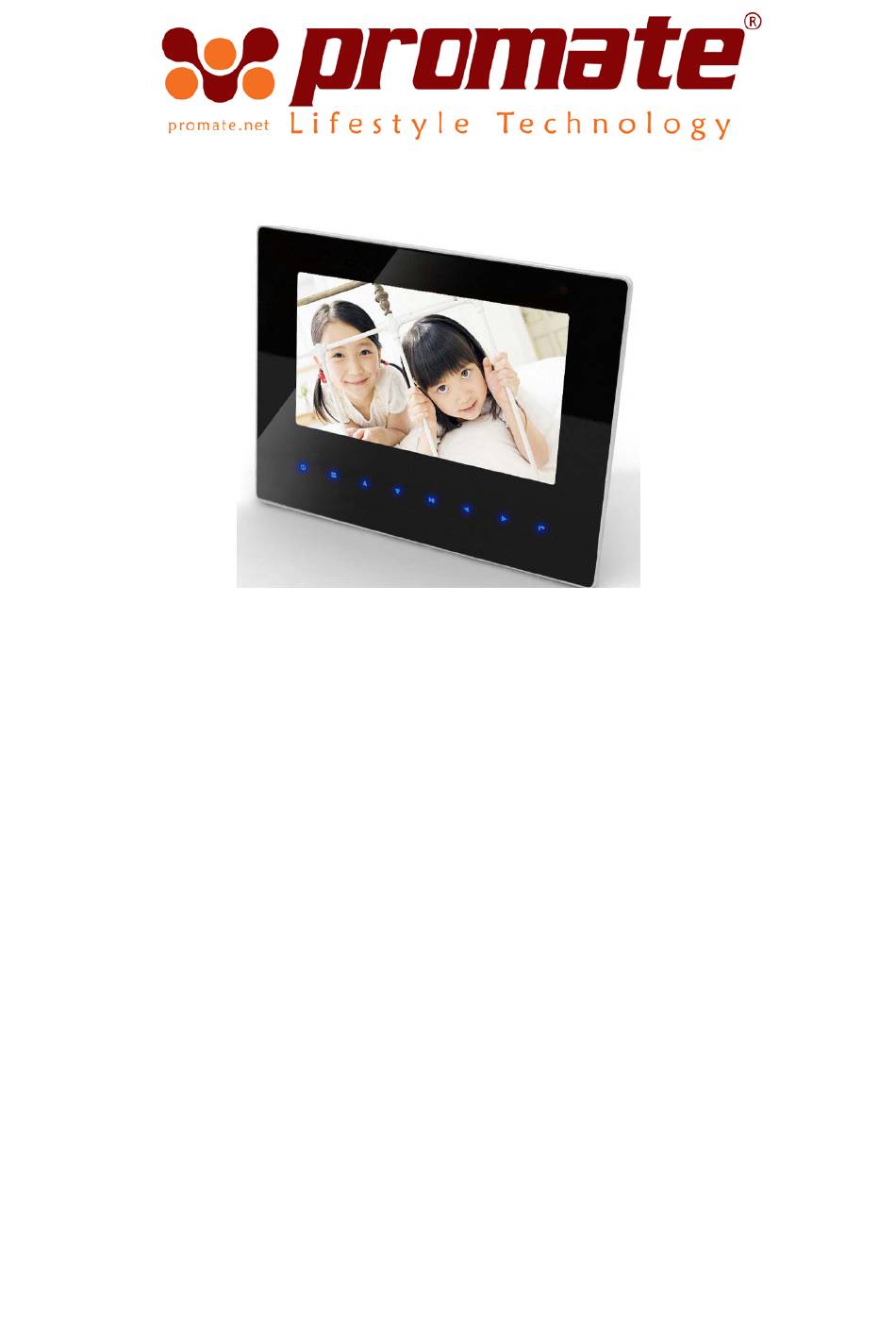

- Page 1 Cautions: Precautions and maintenance ● For indoor use only ● To avoid risk of fire or electric shock, do not expose the unit to moisture or condensation. ● To avoid overheating, do not block the ventilation holes on the back of the Digital Photo Frame.
- Page 2 To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. The Promate proFrame.3 is an ultrathin photo frame which is designed to enjoy lasting memories. The sleek facade has a touch panel for easy navigation of settings and functions.
-
Page 3: User Manual
Packaging Check List: 1. 7 inch photo frame 1 piece 2. User manual 1 piece 3. Remote control 1 piece 4. AC/DC adapter 1 piece 5. Short USB Cable(usded to connect with the USB Disk) 1 piece 6. Long USB Cable(Optional) 1 piece CONTENTS... -
Page 4: Table Of Contents
1. Product Diagram ··············································································································· 4 1.1 Remote Control ······································································································· 4 1.2 Touch Buttons·········································································································· 5 1.3 Right Side of Frame ································································································· 5 1.4 Left Side of Frame ··································································································· 5 2. Installing & Replacing the Battery ····················································································· 5 3. Getting Started ·················································································································· 5 4. -
Page 5: Remote Control
1.1 Remote Control 1 ) Power On/Off 2 ) 16:9/4:3 ─ Changes picture display ratio between these two values. 3 ) MUTE ─Cancels music during music playing function. 4 ) MENU ─During music/picture/video playing mode, press to access the "Info Bar". 5) UP arrow ─Scrolls pictures in up/dow n mode. -
Page 6: Right Side Of Frame
1. Power On/Off 2. Menu 3. Up Arrow 4. Down Arrow 5. OK / Play / Pause 6. Left Arrow 7. Right Arrow 8. Return 1.3 Right Side of Frame 1. SD/MS/MMC 1.4 Left Side of Frame 1. DC 5V(Power Input) 2. -
Page 7: Operating Instruction
you need a new battery. 3.4. Power on the unit by pressing the Power button on the remote control or on the top of the unit. 4. Operating Instruction After turning on the unit, you will see MEMORY, PHOTO, MUSIC, VIDEO, SLIDESHOW, CLOCK/DATE, and SET UP icons on the screen. -
Page 8: Music Mode
When you enter the picture file, press to highlight the play list of supported picture files. Press Menu to choose file function operation items (Copy/ Delete). Press to choose the function you want, and press OK to operate. When the picture is playing, press Menu to enter "Info Bar"... -
Page 9: Video Mode
When the music is playing, there will be "Info Bar" on the interface. Press to choose one of the items, press OK to select. Info Bar functions as follows from left to right: Repeat Previous Next Play/pause Fast rewind Fast forward Video Mode Operation:... -
Page 10: Slideshow Mode
Fast forward Fast rewind Repeat Volume Combo Mode- Play both music and pictures Press Return to choose "MEMORY CARD" in the main menu, then choose SLIDESHOW. First you will be in the picture selection mode. Scroll through the choices with and select with Then you will be in the music selection mode. -
Page 11: Video Setup
6.2 Video Setup Brightness: Use the to select between 0 (lowest) and 12 (highest). Contrast: Use to select between 0 (lowest) and 12 (highest). HUE: Use to select between 6 (most color) to -6 (least color). Saturation: Use to select values between 0 (lowest) and 12 (highest). Sharpness: Use to adjust. -
Page 12: Stand Instruction
Stand Instruction Insert the bracket into the slot of the photo frame. Please check and make sure the stand is locked in place before standing the photo frame up. Please refer to the illustration shown below Specifications • TFT LCD: 7 inch LCD (16:9) panel •... -
Page 13: Troubleshooting Guide
Troubleshooting Guide No power Please check whether the plug is connected properly. Remote control not functioning Please check if the battery still has power. Replace if its necessary. Cannot read the memory card or USB drive Please confirm whether there is a file saved inside the memory card or USB drive. Cannot play a file Please check if the file format is compatible with the player.
