Signtex MOONLITE MOE-BB Series Installation Instructions And Owner's Manual

MOONLITE

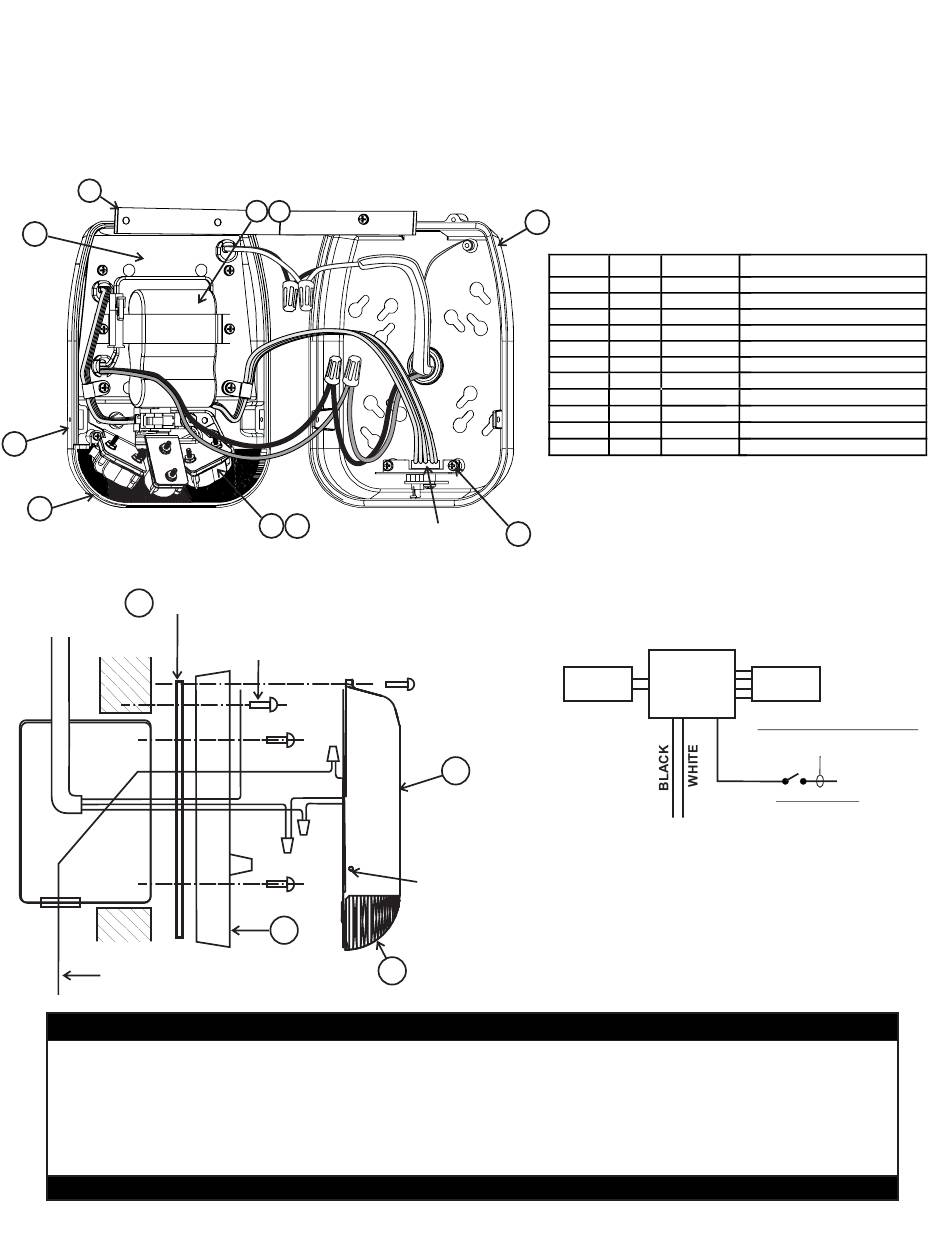

Installation Instructions AND OWNER'S MANUAL

INSTALLATION TOOL

8
10
1
3
11
GASKET
120/277 VAC
J- BOX
SECURITY/ NORMALLY ON
SWITCH CONTROL

IMPORTANT SAFEGUARDS READ AND FOLLOW ALL SAFETY INSTRUCTIONS

1. Disconnect AC power before servicing.
2. Refer to wiring diagram for proper connections.
3. All servicing should be performed by qualified personnel.
4. Consult your local building code for approved wiring and
installation.
5. Do not use this equipment for other than intended use.
6. Do not let power cords touch hot surfaces.
6 7
4 5
TEST PANEL
CONNECTOR
GROUND SCREW
(2) #6-32 x 3/8"
TOP SCREWS
RED
2
SAVE THESE INSTRUCTIONS
Dual Function LED Exterior Wall Pack
with Integral Battery
2
ITEM
1
2
3
4
5
6
7
8
9
10
11
9

SECURITY LIGHTING SWITCH CONTROL OPTION

1
(2) #6-32 x 1/4"
SET SCREWS
3
7. Mount and secure the fixture at a location and height
to avoid ready access and tampering by unauthorized
persons.
8. The use of accessory equipment is not recommended by
the manufacturer and may cause an unsafe condition.
9. Suitable for wet locations. See product label for temperature
limitations.
Series MOE-BB
QTY P/N DESCRIPTION
1 343004-X HOUSING "X" COLOR
1 586102 BASE UNIT EQUIP.
1 586104 LENS
1 343005 LED 2- LAMP ASSBY KIT
1 343006 LED 3- LAMP ASSBY KIT
1 SEE SPEC BATTERY STD
1 BATTERY LT
SEE SPEC
1 343012 INSTALLATION TOOL
1 343007 TEST PANEL ASSBY
1 343013 POWER SUPPLY ASSBY
1 343035 GASKET
POWER
BATT
SUPPLY
SEC CONTROL INPUT VOLTS
STANDARD FIXTURE = 120 VAC
DG FIXTURE = 120/ 277 VAC
RED
(LINE)
L N
120 / 277 VAC
UN- SWITCHED NORMAL INPUT
REV 06.15.08
LAMPS
UNIVERSAL
SEC CONTROL
MAKE- SEC ON
BREAK- SEC OFF
