Bobrick B-165 SERIES Technical Data

Technical Data

Mirror

Designer's Notes:

1. Special-order sizes available on request.
2. Maximum size mirror available, 72'' x 60'' (183 x 152cm); minimum size, 12" x 12" (30 x 30cm).
3. All Bobrick framed mirrors are manufactured to overall width and height dimensions. EXAMPLE: A 24" x 36'' (61 x 91cm) mirror will be furnished 24'' x
36'' (61 x 91cm) outside-of-frame to outside-of-frame.
4. To specify special sizes use Series Number followed by width then height in inches. EXAMPLE: B-165 2024.
5. Bobrick framed mirrors are manufactured to a tolerance 1/8'' (3.2mm).
6. For sufficient space to lift mirror onto wall hanger(s), provide 3-1/4'' (85mm) minimum clearance above center line of mounting screw holes.
7. Provide 1'' (25mm) minimum clearance at bottom of mirror for engaging locking screws and 1'' (25mm) clearance on each side.

MATERIALS:

Frame — Type-430 stainless steel, 1/2" x 1/2" x 3/8" (13 x 13 x 9.5mm) channel with 1/4" (6mm) return at rear with bright
polished finish. One piece frame with 90 degree mitered corners. Galvanized steel back has integral horizontal hanging brack-
ets near the top for hanging the mirror and near the bottom to prevent the bottom of the mirror from pulling away from the
wall. Locking devices secure mirror to concealed wall hanger. In Screw Locking Design (see figure 2), concealed Philips-head
locking screws securely fasten mirror to wall hanger.
Mirror — No. 1 quality, 1/4" (6mm) select float glass: selected for silvering, electrolytically copper-plated by the galvanic
process, and guaranteed for 15 years against silver spoilage. Corners are protected by friction-absorbing filler strips; back is
protected by full-size, shock-absorbing, water-resistant, nonabrasive, 3/16" (5mm) thick polyethylene padding.
Concealed Wall Hanger — 20-gauge (0.9mm) galvanized steel. Incorporates lower support member, forming rigid rectangle,
which engages lower backplate louvers to keep bottom of mirror against wall.
The illustrations and descriptions herein are applicable to production as of the date of this Technical Data Sheet.
The manufacturer reserves the right to, and does from time to time, make changes and improvements in designs and dimensions.

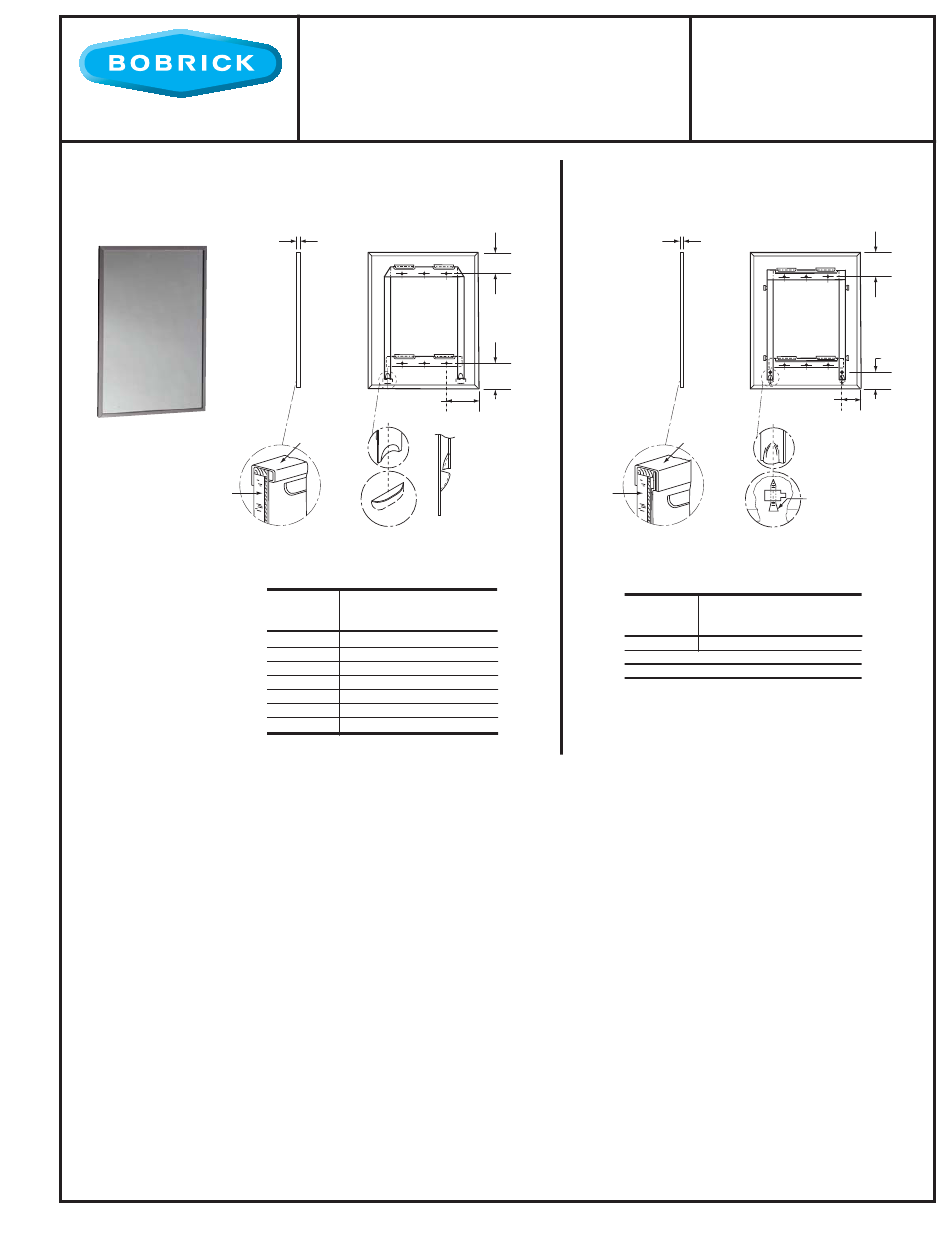

MIRROR WITH

STAINLESS STEEL

CHANNEL FRAME
SNAP LOCKING DESIGN
(Rear View)
1/2''
13mm
4'' or 5" Typ.
100 or 125mm
Frame
Back Plate/Wall Hanger
Figure: 1
STANDARD B-165 SERIES MIRRORS
OVERALL SIZE
MODEL
NO.
W
B-165 1824 18'' (46cm)
B-165 1830 18'' (46cm)
B-165 1836 18'' (46cm)
B-165 2430 24'' (61cm)
B-165 2436 24'' (61cm)
B-165 2448 24'' (61cm)
B-165 2460 24'' (61cm)
2-1/2''
65mm
S
S
2-9/16''
65mm
S
Mirror
Side View
H
24'' (61cm)
30'' (76cm)
36'' (91cm)
30'' (76cm)
36'' (91cm)
48'' (122cm)
60'' (152cm)
B-165
SERIES
SCREW LOCKING DESIGN
(Rear View)
1/2''
13mm
T
Frame
Figure: 2
STANDARD B-165 SERIES MIRRORS
OVERALL SIZE
MODEL
NO.
W
B-165 4836 48'' (122cm) 36'' (91cm)
All Other Size Mirrors
Rev. 2/2/11 R/B
© 2011 by Bobrick Washroom Equipment, Inc.
2-1/16''
50mm
S
1-13/16''
45mm
S
3"
75mm
S
Locking Screw
(Phillips-Head)
H
continued . . .
Printed in U.S.A.
