PF3100 Network Expansion Card Product Manual R 1.0
PROFIRE PF3100 Network Expansion Card
PF3106-00
The PROFIRE PF3100 Network Expansion Card provides additional ports for extra modules,
routes network traffic, and provides power to the connected network nodes.
PROFIRE
1.855.776.3473
solutions@profireenergy.com
Page 1 of 9
Advertisement
Table of Contents
Summary of Contents for Profire Energy PF3106-00

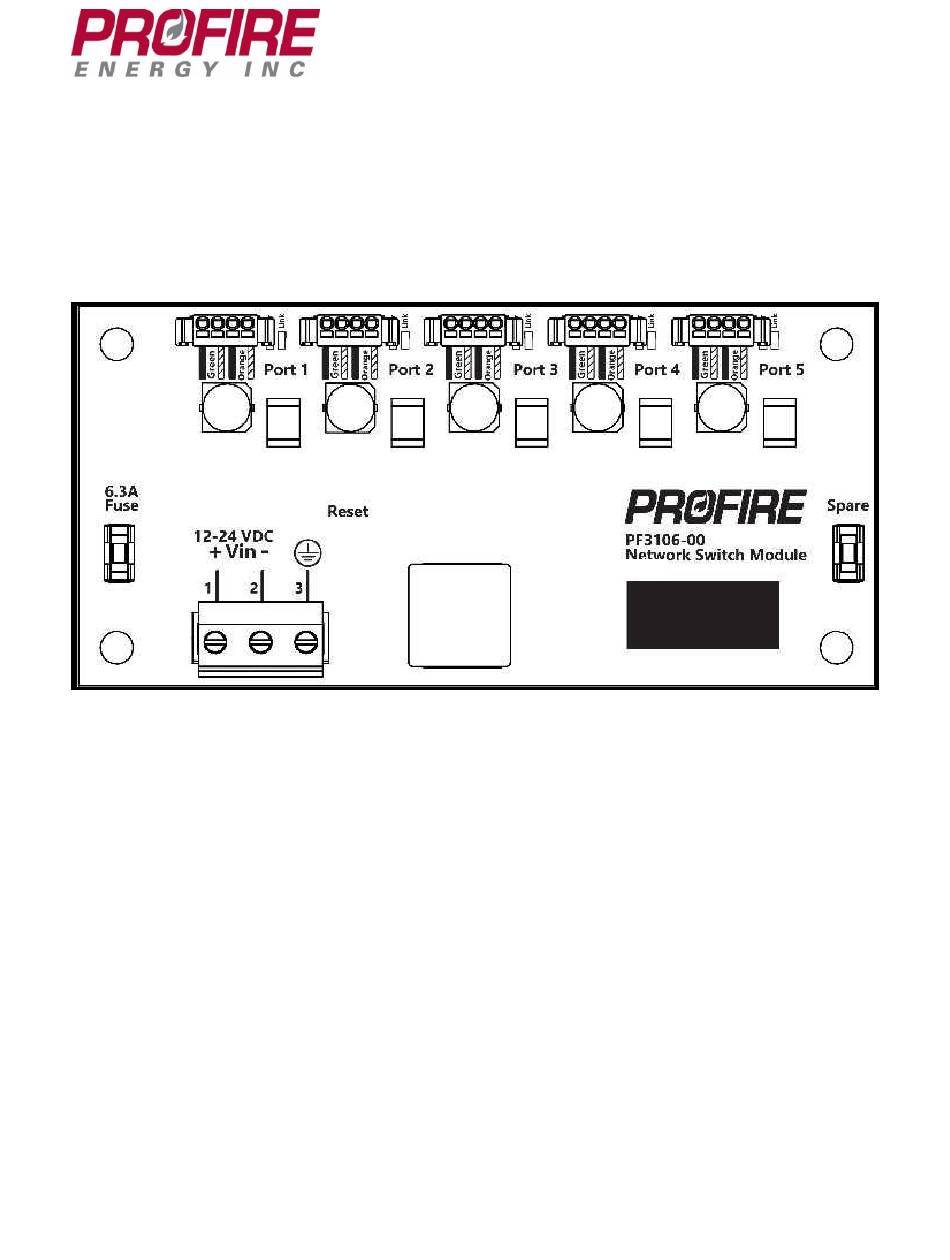

- Page 1 PF3100 Network Expansion Card Product Manual R 1.0 PROFIRE PF3100 Network Expansion Card PF3106-00 The PROFIRE PF3100 Network Expansion Card provides additional ports for extra modules, routes network traffic, and provides power to the connected network nodes. PROFIRE 1.855.776.3473 solutions@profireenergy.com...
-
Page 2: Table Of Contents
PF3100 Network Expansion Card Product Manual Introduction ............................... 3 Certifications .............................. 3 Card Information ............................4 Mounting Instructions ..........................6 Enclosure Specifications ..........................6 Instructions for Use ............................ 7 Wiring Diagram ............................7 Preventative Maintenance & Inspection ...................... 8 Important Safety Information ........................8 10. -
Page 3: Introduction
PF3100 Network Expansion Card Product Manual 1. Introduction Functional Description The PROFIRE PF3100 Network Expansion Card acts as a network switch. This card provides additional ports for extra modules, helps route network traffic, and provides power to the network. Model Types Model Number Name... -
Page 4: Card Information
PF3100 Network Expansion Card Product Manual 3. Card Information Card Specifications The ambient temperature rating for the Network Expansion Card is -40°C (-40°F) to +60°C (+140°F). Card Diagram PROFIRE 1.855.776.3473 solutions@profireenergy.com Page 4 of 9... - Page 5 PF3100 Network Expansion Card Product Manual Terminal Specifications Electrical Ratings Terminal Safety Description Rated Voltage Current Name 12-24 VDC 6.3A Max Power 12-24 VDC Vin + 12/24 VDC Power Input 12-24 VDC 6.3A Max Common 12-24 VDC Vin - Ground back to DC source EGND Earth ground and enclosure ground Electrical Ratings...
-
Page 6: Mounting Instructions
PF3100 Network Expansion Card Product Manual 4. Mounting Instructions Mounting the Card in the Enclosure 1. Install four (4) #10-32 screws through the UV Pilot card (as indicated in the image below) and attach them to the upper set of enclosure stand-offs. Please note the board orientation. 2. -
Page 7: Instructions For Use
PF3100 Network Expansion Card Product Manual 6. Instructions for Use The Network card is used to help route network traffic and provides power to the network. Operation Operating controls and their uses are described in the “Terminal Descriptions” section. 7. Wiring Diagram Wiring Specifications 12-30 AWG can be used for all connections. -
Page 8: Preventative Maintenance & Inspection
PF3100 Network Expansion Card Product Manual 8. Preventative Maintenance & Inspection In order to ensure that the Network Expansion card works correctly and efficiently, the following maintenance and inspection procedures should be followed: ➢ Ensure that all wires are connected correctly. ➢... -
Page 9: 10. Profire Contact Information
PF3100 Network Expansion Card Product Manual Installation Warnings ➢ Ensure that the PF3100 enclosures are securely closed each time after opening the enclosure. This protects the internal circuitry from moisture damage and other environmental concerns. Moisture damage is not covered by the product warranty. ➢...
