RFoG RF-ENCO-IP-HDSDI-35 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Dwustrumieniowy enkoder HD-SDI na IP
z obsługą OnVIF 2.0
RF-ENCO-IP-HDSDI-35
User Manual
ver.2. 0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RF-ENCO-IP-HDSDI-35 and is the answer not in the manual?

Questions and answers

Summary of Contents for RFoG RF-ENCO-IP-HDSDI-35

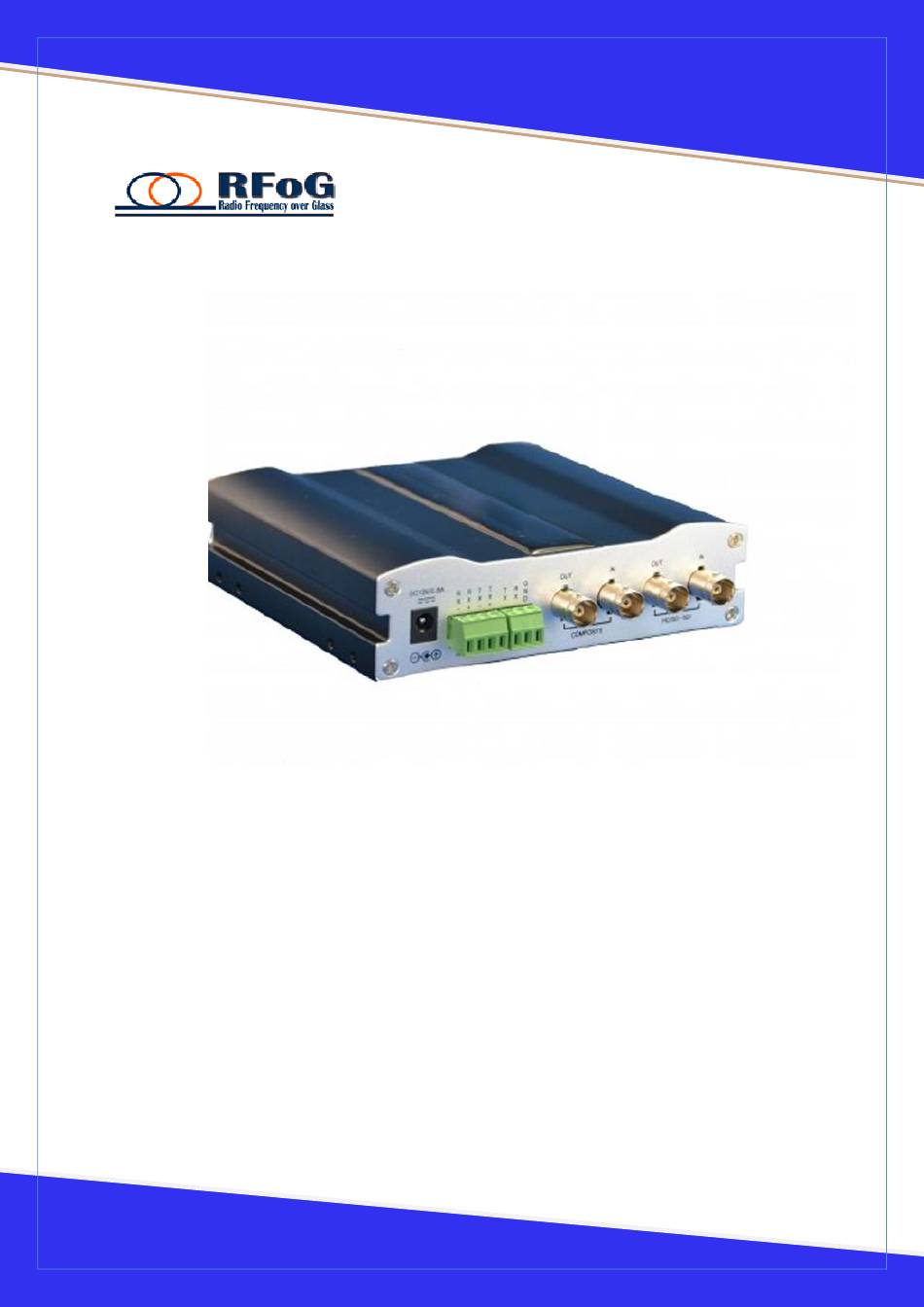

  • Page 1 Dwustrumieniowy enkoder HD-SDI na IP z obsługą OnVIF 2.0 RF-ENCO-IP-HDSDI-35 User Manual ver.2. 0...
  • Page 2  To prevent from overheating, make sure to keep the distance at least 10cm from the ventilation hole.  Make sure proper voltage before connecting the power. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 2/67...

  • Page 3: Table Of Contents

    Network ............................ 24 Event ............................36 Record ............................. 40 Device ............................46 PTZ ............................47 User ............................51 System ............................. 53 5. Appendix ............................. 55 P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 3/67...

  • Page 4: Introduction

    Data pass-through mode : Serial data communication between Encoder - Decoder Sensor and Alarm Support direct connections of external sensor and alarm devices Event Alarm P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 4/67...

  • Page 5: Product And Accessories

    Reliable embedded system System recovery by dual watch-dog functions Product and Accessories video server Quick Manual Power adapter and Cable Screws Brackets S/W and User CD P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 5/67...
  • Page 6 USB Port USB 2.0 ⑦ Ethernet/802.3af 1000/100/10MB Base-T Ethernet ⑧ Reset Button Initialization of network setting ⑨ Sensor Sensor Input ⑩ Alarm Alarm or Relay Output P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 6/67...
  • Page 7 Serial port for PTZ control and etc ④ Composite In/ Output Composite Video Input / Output ⑤ 3G/HD/SD-SDI In/Output 3G/HD/SD-SDI Video & Audio Input / Output P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 7/67...

  • Page 8: System Connections

    A decoder and encoder can be connected by setting the encoder’s address at the decoder’s remote IP  1:N Connection (Unidirectional Transmission). Remote Center Site P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 8/67...
  • Page 9 VMS (Video Management System) is a Windows based remote monitoring program to access multiple encoders for real-time monitoring or control of the encoders and connected cameras. Please refer to VMS User Manual for more information on VMS. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 9/67...

  • Page 10: Installation

    Software provided on the disc called True Manager allows you to check the IP address and other network details of the camera. Please refer to the True Manager manual for instructions on how to find the IP address P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466...
  • Page 11 Once the encoder is connected to a decoder, color of “LINK” LED will turn into green color and “ DATA” LED will blink as video or audio transmissions occur P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466...
  • Page 12 Decoder only: trying to connect to an Encoder Illegal connection (unsupported combination of system Orange modes) Green Data transmission in progress DATA Data loss No data transmission P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 12/67...

  • Page 13: System Operation

    Open Internet Explorer and enter camera’s IP address. The system will ask for confirmation to install Active-X control. Once authorized, the Internet Explorer will start to display video images from camera as shown below.  Defalut IP Address http://192.168.10.100 P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 13/67...
  • Page 14 Control PTZ and PTZ Control Panel is used for controlling external PTZ devices when the external PTZ devices are connected through serial port. It is possible to make zooming control by Zoom in/out buttons P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466...
  • Page 15 Snapshot Capture video images and store them as BMP or JPEG files.  Talk Transfer audio from PC’s mic to the camera.  File Record P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 15/67...
  • Page 16 3. Once the system reboots, IP address will be set to the system default as below;  IP mode  IP address Fixed IP 192.168.10.100  Subnet mask  Gateway 255.255.255.0 192.168.10.1  Base port  HTTP port 2222 P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 16/67...

  • Page 17: Remote Configuration

    The configurations are grouped into 9 categories: Video & Audio, Image, Network, Event, Record, Device, PTZ, System, User. Leaving the page without pressing Apply button, any changes in the page will be discarded. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 17/67...

  • Page 18: Video & Audio

    RF-ENCO-IP-HDSDI-35 User Manual  Video & Audio Information The information provides current information regarding the settings for video and Audio P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 18/67...
  • Page 19 Choose the Auto Detect mode. If it is Full Auto Mode, it will be displayed automatically. If it is Semi Auto Mode, user should select Input format. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466...
  • Page 20 Select H.264 Profile : High Profile or Baseline Profile The standard defines various sets of capabilities which are referred to as profiles, targeting specific classes of application. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 20/67...
  • Page 21 In case of H.264, wither bitrate mode or Quality mode can be selected for Preference mode in. On the other hand, MJPEG supports Quality mode P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 21/67...
  • Page 22 Action No operation Tx-Only Transmit only Rx-Only Receive only Tx & Rx Transmit and Receive Input Gain Set audio input gain from 0 to 31. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 22/67...

  • Page 23: Image

    RF-ENCO-IP-HDSDI-35 User Manual Output Output Format Select the format of output when Enable Preview is selected.  Image P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 23/67...
  • Page 24 2DNR Mode: 2D-NR offers the 2D-edge preserving & flat area noise reduction which preserves the edge zone by identifying the 5x5 Bayer pattern data’s edge zone and eliminates the noise on the flat zone. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 24/67...
  • Page 25 Edge Enhancement is an image processing filter that enhances the edge contrast of an image or video in an attempt to improve its acutance(apparent sharpness) P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 25/67...

  • Page 26: Network

    Fixed IP address Fixed IP LocalGateway Gateway IP address Local Subnet Subnet mask DHCP Please ask IP address information from ISP provider or network manager. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 26/67...
  • Page 27 Decoder, VMS or NVR software is connected in multicast mode. The multicast IP address selection range is between 224.0.0.0 and 239.255.255.255. The selection can be used only when media protocol is set to Multicast. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 27/67...
  • Page 28 By setting Zerodonf to ON, it allows the discovery by the clients according to zeroconf protocol. WS Discovery Discovery function based on web service is enabled. It allows the discovery by the client SW which is supporting Onvif. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 28/67...
  • Page 29 User Name : Enter the user name that will be used as session name in the SDP file.  File Name : Enter the file name that will be used as the name of the SDP file. Then, it can be P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 29/67...
  • Page 30 SNMP Listen Port (0, 161, 1025 ~ 65535) The port is for connecting external device when system operates as a SNMP client. SNMP is not P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 30/67...
  • Page 31 True DNS service is used in the mode. Systems can be registered on the website for True DNS service, http://ns1.truecam.net. A system will get a domain name of xxx.truecam.net. Please refer to P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466...
  • Page 32 DDNS server. In DHCP mode, dynamically assigned IP will be registered on DDNS server. Normally Check IP Disable should be unchecked in order to obtain public IP in the network. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466...
  • Page 33 User Manual IP filtering IP filtering is simply a mechanism that decides which types of IP datagrams will be processed normally and which will be discarded. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 33/67...
  • Page 34 Enter Destination address. More than one address can be entered by delimiting comma (,) or semi- colon (;). Destination address can take up to 63 characters. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466...
  • Page 35 The number of JPEG frames is configured. This setting is applicable only when JPEG Capture is selected.  Capture Interval Select the interval of captured frame. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 35/67...
  • Page 36 The following macros are supported to form variable parts of file names. The strings are case- sensitive. %YYYY : year P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 36/67...
  • Page 37 Capture Interval Select the interval of captured frame.  Continuous Upload Continuous upload ‘ON’ allows video clips to be transmitted regularly regardless of occurrence of P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 37/67...
  • Page 38 Use on Record session.  Upload Video Primary video and secondary, tertiary or quartic video (H.264 only), JPEG capture can be selected P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 38/67...
  • Page 39 User ID User ID on VPN Client  Password User Password on VPN client  VPN IP Address Set IP address on VPN  VPN Port P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 39/67...
  • Page 40 Set the port on VPN  VPN IP Address Set IP address on VPN Connecting Client IP Addresses that are currently connected to system are listed. (1) Indicates P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 40/67...

  • Page 41: Event

    Configure the actions when the sensor is activated. Multiple actions can be set for a single event. On Video Loss Configure the actions when video input signal is lost. Multiple actions can be set for a single event. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 41/67...
  • Page 42 III. Select cells by right click. Multiple cells can be selected by press and dragging. IV. Press Apply Edit Area to save the setting. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 42/67...
  • Page 43 Sensor Schedule Choose Sensor OFF or Sensor On and click the below schedule table to make a sensor schedule according to day of week and hours. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 43/67...
  • Page 44 Set the duration of alarm or beep activation in case of an event. If it is set to continuous, it will be in active state until the operator resets it manually. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466...

  • Page 45: Record

    Data are deleted in the disk automatically after being uploaded to the FTP server. It is valid only when Automatically Backup to FTP is used. Start Time of Backup Data P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 45/67...
  • Page 46 Specify the name of the directory to be created in the FTP server. It is valid only when Use Record is set to Use FTP. Checking status of recording Recording status can be checked on the main view page. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 46/67...
  • Page 47 Recording is started when the system loses the connection to its last client(Decoder, VMS/NVR) etc. When there are multiple clients and one of the client is disconnected, this doesn’t happen.  Event Type P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 47/67...
  • Page 48 Once the initialization of a disk is finished, the status of disk is shown on Record page of web-based setup Refer to the chart for checking the status of disk. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 48/67...
  • Page 49 10 ~ 2GB. In case of continuous recording, AVI files are created in series and the size of each is limited to 10 ~ 2GB. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466...
  • Page 50 Player. 4. Another connection through web is disabled during downloading and it is also not allowed to download two AVI files at the same time. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 50/67...

  • Page 51: Device

    485 in RS-422/485 port Serial Port Configuration: The serial ports can be configured as follows. Each of the serial ports configurations must be same as the connecting device P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 51/67...

  • Page 52: Ptz

    ID. Enter PTZ ID of a camera or receiver for control. The ID value range can be between 0 and 255.  PTZ Port Select the serial port for PTZ camera control. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 52/67...
  • Page 53 Edit Label: Assign a label to the preset position. Only the first 15 preset entries (Preset-1 ~ Preset- 15) can have labels. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 53/67...
  • Page 54 Swing. Option field has different meanings for Preset and Pattern/Swing. For Preset, it configures the preset speed. For Pattern/Swing, it configures the number of repetition. Dwell time between actions can be set up as well. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 54/67...
  • Page 55 4. Press Apply button and the Group can be used on the Live View Page Advanced Advanced PTZ Specify if the camera will continue previous action such as pattern, swing or group after it is rebooted by power. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 55/67...

  • Page 56: User

    All operations except for user Manager configuration User Live viewing and PTZ control Guest Live viewing only Add User Press Add button. The following window will appear. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 56/67...
  • Page 57 Enter the current password and then set a new password. Modify Privilege Level Press Modify Privilege button to change User level. It is not allowed to change the privilege level of admin user. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 57/67...

  • Page 58: System

    HTTP authentication based on RFC 2617(HTTP Authentication: Basic and Digest Access Authentication) is supported.  System Information System information Followed network information is displayed (Read only) P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 58/67...
  • Page 59 Set Current Time Display Current date and time  Current Domain In case the camera is registered at DDNS server, the registered domain name is displayed. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 59/67...
  • Page 60 All the setting of configuration can be stored.  Restore Stored configuration can be browsed and restored. The server is rebooted once Config Restore button is pressed. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 60/67...
  • Page 61 III. MM/DD/YYYY hh:mm:ss (Eg. 30/10/2012 12:30:45)  Time Zone Select time zone of where the camera is installed. Depending on the time zone, Daylight Saving Time will work automatically P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 61/67...
  • Page 62 The set System ID is displayed with video image on a Web Browser. The System ID is also transferred to remote software, such as VMS, and displayed on it. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466...
  • Page 63 You can enter any text you like independent.  X-Coordinate or Y-Coordinate For example, if you enter 500, 500 values, OSD is placed in center of images. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 63/67...
  • Page 64 RF-ENCO-IP-HDSDI-35 User Manual Language Language Select the language to be used for web-based configuration. P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 64/67...

  • Page 65: Appendix

    Terminal Type Voltage Rating: 150VAC Current Rating : 2A Color : Red  Sensor Signal Input Type NO Contact Signals  Connection to External Device P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 65/67...

  • Page 66: Nip:857-115-72-13, Regon 811833063, Tel

    Contact Rating : 1A 30VDC Switching Power : Max 30W 62.5VA Switching Voltage : Max 60VDC  Alarm Signal Output Type NO/NC Contact Signals  Connection to External Device P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 66/67...
  • Page 67 RS422 RX- RS422 RX+ RS422 TX- or RS485 TRX- It is selectable by S/W Setup RS422 TX+ or RS485 TRX+ It is selectable by S/W Setup P.H.U. RFoG Tomasz Paszkowski, ul. Starogrodzka 1/2, 72-300 Gryfice, NIP:857-115-72-13, REGON 811833063, tel. 602794466 67/67...
