RONAR-SMITH
Part No: BXZ-10.6-2-8X
Wavelength Opto-Electronic (S) Pte Ltd
BLK2 Bukit Batok Street 24, #06-03, Skytech, Singapore 659480
Tel: 65-65649624 Fax: 65-65643862 info@wavelength-tech.com
®
BXZ SERIES ZOOM BEAM EXPANDER
Wavelength
Magnification
Divergence adjustable
Optical principle
Length
Mounting thread
Pointing stability
Output CA
Input CA
Total number of lens
Lens material
60
N1
Set-Screw
of Expanding Ring

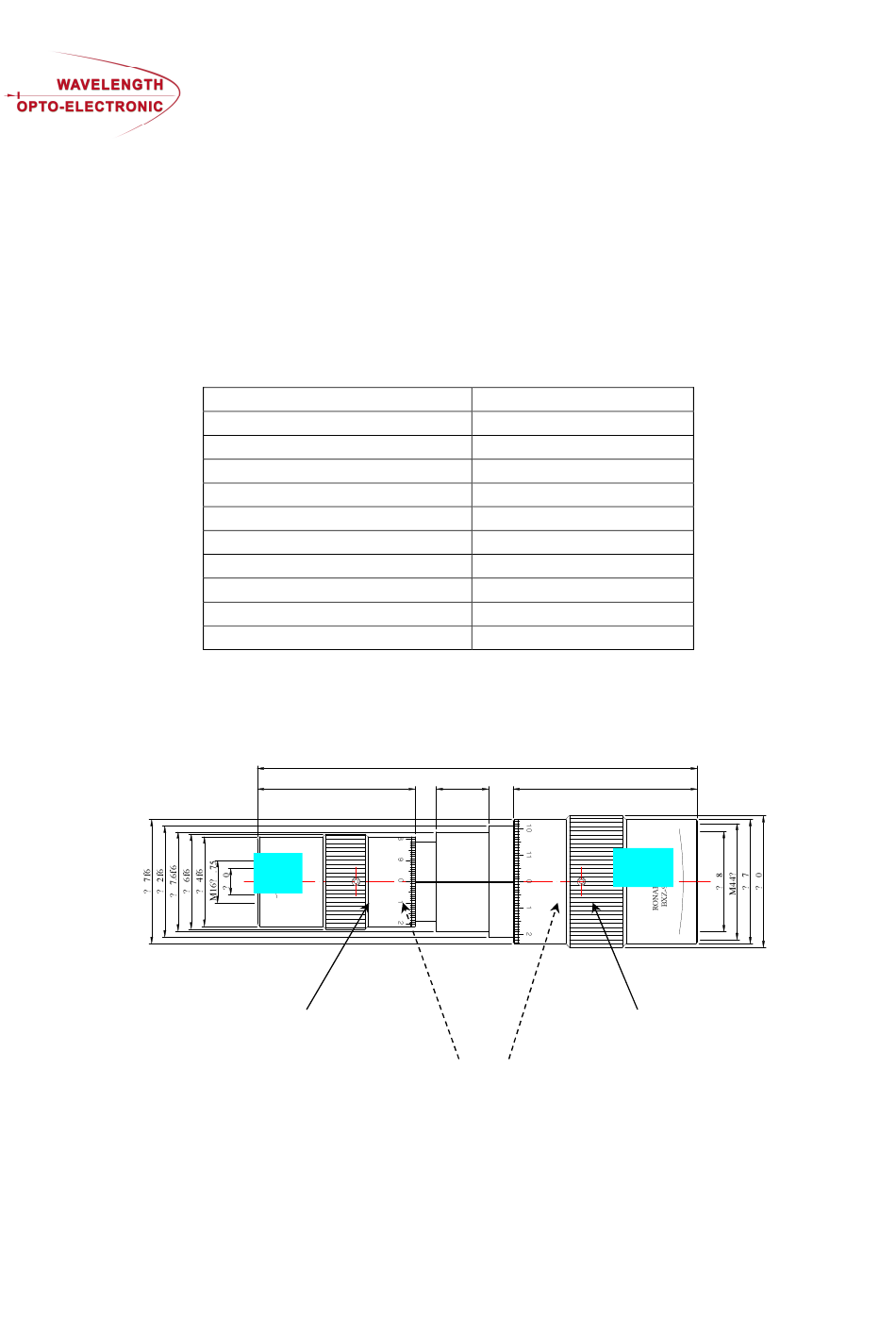

Figure 1: BXZ-10.6-2-8X outline drawing
Specifications
10.6um
2-8X
Adjustable divergence
Galilean design
165.8-168.15mm
N/A
<1.0mrad
38mm
10mm
3pcs
ZnSe
165.8~168.15
20
Referenced Indictor
70
N2
Set-Screw of
Focusing Ring
Advertisement
Summary of Contents for Wavelength Opto-Electronic RONAR-SMITH BXZ SERIES
-
Page 1: Specifications
Wavelength Opto-Electronic (S) Pte Ltd BLK2 Bukit Batok Street 24, #06-03, Skytech, Singapore 659480 Tel: 65-65649624 Fax: 65-65643862 info@wavelength-tech.com .com ® RONAR-SMITH BXZ SERIES ZOOM BEAM EXPANDER Part No: BXZ-10.6-2-8X Specifications Wavelength 10.6um Magnification 2-8X Divergence adjustable Adjustable divergence Optical principle... - Page 2 Wavelength Opto-Electronic (S) Pte Ltd BLK2 Bukit Batok Street 24, #06-03, Skytech, Singapore 659480 Tel: 65-65649624 Fax: 65-65643862 info@wavelength-tech.com .com Before adjusting the magnification, please loosen the set-screws slightly as shown in Figure 1, then follow the Magnification Reference Table 1 to achieve the corresponding magnification.
- Page 3 Wavelength Opto-Electronic (S) Pte Ltd BLK2 Bukit Batok Street 24, #06-03, Skytech, Singapore 659480 Tel: 65-65649624 Fax: 65-65643862 info@wavelength-tech.com .com BXZ-10.6-2-8X Scale curve...
- Page 4 Wavelength Opto-Electronic (S) Pte Ltd BLK2 Bukit Batok Street 24, #06-03, Skytech, Singapore 659480 Tel: 65-65649624 Fax: 65-65643862 info@wavelength-tech.com .com 2. We give another method of adjusting like the drawing; the customer need to measure the distance D1 and D2, eg. 2.5X， D1 is 11.68mm and D2 is 6.32mm.
