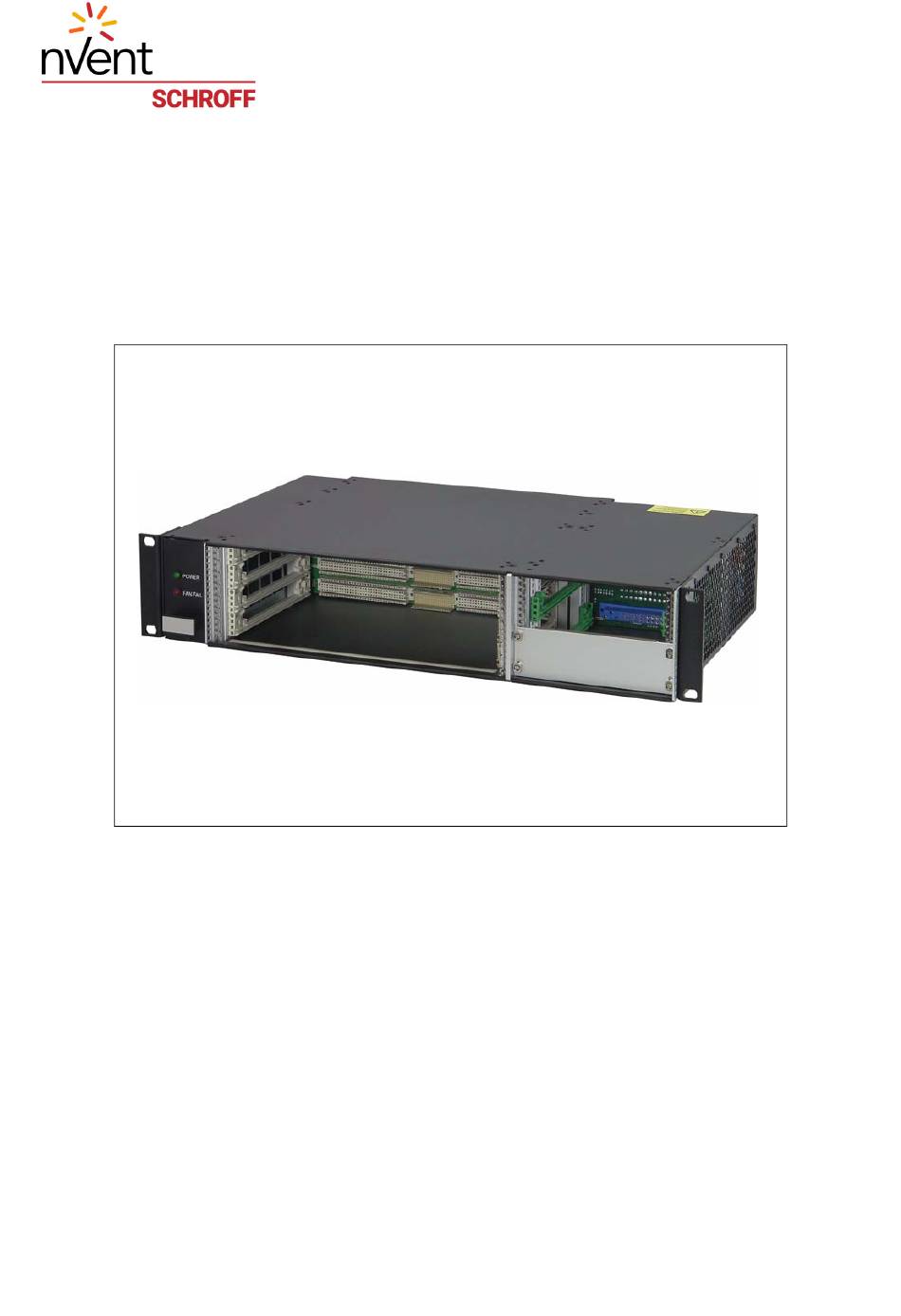

- Page 1 VME64x System Subrack 2 U User’s Manual Product No.: 20836-245 July 14, 2009 Doc-No: 63972245_R1.0...
- Page 2 Change R1.0 July 14, 2009 Initial Release Impressum: Schroff GmbH D-75334 Straubenhardt, Germany The details in this manual have been carefully compiled and checked - supported by certified Quality Management System to EN ISO 9001/2000 The company cannot accept any liability for errors or misprints.
-
Page 3: Table Of Contents
VME64x System Subrack 2 U 20836-245 Table of Contents Safety ......................... 1 Intended Application .................... 1 Safety Instructions ....................2 1.2.1 Safety Symbols used in this document ..........2 General Safety Precautions................. 2 References and Architecture Specifications ............3 Product Definition..................... 4 Subrack System Overview................... - Page 4 VME64x System Subrack 2 U 20836-245 www.schroff.biz R1.0, July 14, 2009...
-
Page 5: Safety
VME64x bus system (VITA 1.1-1997). The VME64x system subracks are designed for protection class IP 20 and can be used only in the resp. environments. For higher protection requirements, a.e. IP 54/55 you must install the system subrack in a protective case. -
Page 6: Safety Instructions
VME64x System Subrack 2 U Safety 20836-245 1.2 Safety Instructions The intended audience of this User’s Manual is system integrators and hardware/software engineers. 1.2.1 Safety Symbols used in this document Hazardous voltage! This is the electrical hazard symbol. Familiarise yourself with the danger of electrical voltages and the safety precautions to avoid accidents before starting to work with parts that carry dangerous voltages. -
Page 7: References And Architecture Specifications
20836-245 1.4 References and Architecture Specifications • User Manual VME64x Backplanes Order no.: 73972-103 • Short Form User Manual VME64x J1/J2 Monolithic Backplanes Order no.: 73972-128 • Short Form User Manual Power Backplane 23098-115 Order no.: 73972-072 • Operating Instructions maxpowerPRO 250 W Power Supply 13100-141 Order no.: 73972-077... -
Page 8: Product Definition
2 Product Definition The Schroff VME64x System Subrack consists of: • A shielded 2 U 19“ subrack with front and rear card cage for 4 VME64x 6 U boards in accordance with VME64x standard (VITA 1.1-1997) and two slots for optional 250 W plug-in power supplies •... -
Page 9: Vme64X Backplane
Order-No. 73972-103, in the catalogue or on the internet at www.schroff.biz 2.3 Power Backplane A Power Backplane (23098-115) is located to the right of the VME64x Backplane providing two P47 connectors to connect to 3 U / 250 W plug-in power supplies. -
Page 10: Power Supply
The voltage and current rating of the cable should be greater than the ratings marked on the product. The VME64x system can be powered by plug-in power supplies with wide range input (100 - 240 VAC), Schroff order-no. 13100-141. -
Page 11: Plug-In Ac Power Supply (Order Separately)
VME64x System Subrack 2 U Product Definition 20836-245 2.4.2 Plug-In AC Power Supply (Order separately) Figure 3: Schroff Power Supply 13100-141 10006814 Table 1: Data AC Power Supply Input voltage nominal 100 - 240 VAC Mains Frequency 50 / 60 Hz Output (max.) -
Page 12: Wiring Diagram
VME64x System Subrack 2 U Product Definition 20836-245 2.4.3 Wiring Diagram Figure 4: Wiring Diagram 10009834 www.schroff.biz R1.0, July 14, 2009... -
Page 13: Cooling
VME64x System Subrack 2 U Product Definition 20836-245 2.5 Cooling Figure 5: Fan Tray 10009831 Power LED Fan Fail LED The boards and the power supply are cooled by forced air convection through two 80 mm 12 VDC axial fans (69 m³/h (40 cfm) each). -
Page 14: Assembly
VME64x System Subrack 2 U Assembly 20836-245 3 Assembly 3.1 General Assembly Guidelines 3.1.1 Unpacking Caution! When opening the shipping carton, use caution to avoid damaging the system. Consider the following when unpacking and storing the system: • Leave the system packed until it is needed for immediate installation. -
Page 15: Rack-Mounting
• Ensure that the system has not been damaged during transport, storage or assembly. • Carry out a new test for the protective earth – set value < 0.1 Ohm • Switch on the system and check all VME64x voltages directly on the backplane before the board assembly. • Plug-in the boards •... -
Page 16: Service
4.2 Declaration of Conformity VME64x systems are not an end product. In order to make them operational, further assemblies are necessary. In accordance with the definition in the EMC directives it is not classified as equipment, therefore a CE certification is not required. -
Page 17: Delivery Comprises
VME64x System Subrack 2 U Service 20836-245 4.3 Delivery comprises Quantity Description 19” subrack, shielded, black powder coated (RAL9005) VME64x backplane (VITA 1.1-1997), 4 slot 6 U with P0 connectors Power backplane with two P47 connectors acc. PICMG 2.11 Front card cage for max. 4 boards 6 U 160 mm deep IEEE guide rails inc. -
Page 18: Technical Data
VME64x System Subrack 2 U Technical Data 20836-245 5 Technical Data Table 3: Technical Data Dimensions Height 88.10 mm (2 U) Width 482.80 mm (19“) Depth (Card cage) 277.5 mm Depth (Overall with handles) 312 mm Weight Completely assembled 6 kg... -
Page 19: Dimensions
VME64x System Subrack 2 U Dimensions 20836-245 6 Dimensions Figure 7: Dimensions www.schroff.biz R1.0, July 14, 2009... - Page 20 VME64x System Subrack 2 U Dimensions 20836-245 www.schroff.biz R1.0, July 14, 2009...
