USER SETTINGS ...............16 MPTP MESSAGES AND REMOTE CONFIGURATION (OTA)........7 Phone time and date ...........16 Activity timer ...............16 THE BENEFON CONFIGURATOR SETTING THE ACTIVITY TIMER............17 SOFTWARE FOR TRACKBOX .......... 8 Message settings ............17 Connecting the Trackbox to the SMS SERVICE NUMBER..............17 Benefon Configurator..........
Page 4
LIST OF ALLOWED CALLERS............. 27 CODE SETTINGS .............. 48 PROTOCOL SETTINGS ................ 27 Automatic PIN entry ........... 48 Authorized numbers ..........29 Security code.............. 48 Notifications ............... 30 POOR SATELLITE COVERAGE............30 PART B: OPERATING THE TRACKBOX....49 NOTIFY SERVICE CENTER OF BATTERY STATUS ......30 I/O SETTINGS ..............
Page 5
REMOTE TRANSFER ................60 BENEFON WARRANTY .............70 OPENING REMOTELY SENT LOG FILE IN BENEFON CONFIGURATOR............61 PROCESSING EVENT LOG IN BENEFON CONFIGURATOR .... 61 PROCESSING EVENT LOG BY USING SOME OTHER APPLICATION ................. 61 PART C: POWER MANAGEMENT......62 POWER SUPPLY ............... 62 CHARGING ................
MPTP messag- included in the Trackbox sales package. - Benefon Configurator is compatible with Trackbox 2.1 versions starting from GSM 2.Jxxxxx and IOB 040326 - Benewin Trackbox software is compatible with former For more information on MPTP messages, please see the Trackbox versions.

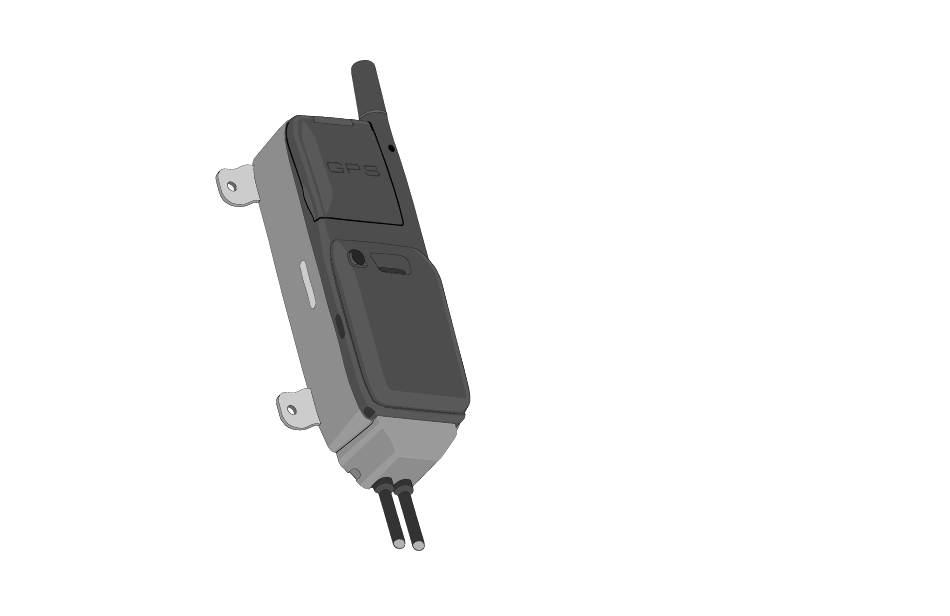

The Benefon Configurator software is intended for configur- ing settings locally for the Trackbox. Since the Benefon Configurator is very easy to use, it is ad- visable to make initial and other major configurations for the device with this software. The settings done with the Benefon Configurator can be transferred to the Trackbox via the BWTrackbox cable.
6. The software establishes a connection to the device and renames My Benefon node according to the type and the model of the device, in this case Trackbox 3. Open the Benefon Configurator THE BENEFON CONFIGURATOR SOFTWARE FOR TRACKBOX 9...
Mobile phone start up tasks . Click while the dialog box is displayed. Unloaded settings can be loaded afterwards in the same ses- sion by choosing Open NNsettings from the Mobile menu. 10 THE BENEFON CONFIGURATOR SOFTWARE FOR TRACKBOX...
Changing default mobile phone Transferring settings from the software to the Trackbox When any Benefon phone (or device) is connected to the Benefon Configurator, the software identifies it automatical- While the Benefon Configurator is connected to the Track- ly, and offers you the correct data fields for editing.
The key is needed for activating the features. Activation can be easily done with the Benefon Configura- tor. Activation can also be done via MPTP messaging. For 2. Press and hold down the release button while removing more information on MPTP commands, see the separate Mo- the BWTrackbox cable from the device.
The physical connection is established with the BWTrackbox cable. A suitable software, for example the Benefon Configurator, is needed for the communication as well. Reading and editing existing messages 1.
PART A: CONFIGURING SETTINGS FOR THE TRACKBOX 1. Choose New message from Writing and sending a short message Edit menu. The SMS edit buffer will be displayed. 2. Key in the message text (1) and the recipient´s number(2). By clicking the square next to the number (3), the recipient´s number can be fetched from the , assuming the num-...
PART A: CONFIGURING SETTINGS FOR THE TRACKBOX PHONE BOOKS Deleting entries 1. To delete a phone book entry, click the desired entry. As you open the Phone books , the memory entries stored on the SIM card are listed and can be processed. Index number 2.
Time and date can be set in the Benefon Configurator. Key Or, you can click the corresponding function icons on in the time and date in the GMT format (“Greenwich Time”).
PART A: CONFIGURING SETTINGS FOR THE TRACKBOX SETTING THE ACTIVITY TIMER Message settings SMS SERVICE NUMBER Start time : Key in the date and time, when the You can store the SMS service number (1), which is needed timer is switched on for the first time. Start for sending normal short messages and telematics protocol time can be selected by clicking the arrows messages.
PART A: CONFIGURING SETTINGS FOR THE TRACKBOX Port and audio settings MESSAGE TYPE You can determine what kind of a message you are process- ing. You can choose the message type from these: Text X400 Email Ermes , or Data When using the device for normal or MPTP messaging, click the arrow and highlight Text...
PART A: CONFIGURING SETTINGS FOR THE TRACKBOX VISIBLE MODE The device contains a built-in microphone. By making a call to the Trackbox, the caller (e.g. service center) can listen in The device can be set to operate the Trackbox and its surroundings. After certain number of rings, the device answers an incoming call automatically by •In visible mode (the box is checked) or opening audio connection.
PART A: CONFIGURING SETTINGS FOR THE TRACKBOX Settings during battery loading GPS settings GPS OPERATING MODE You can select, which one of the GPS power modes is on while the device is being charged (1). Set the GPS off , in case •the time reserved for charging is quite short or GPS OPERATING MODE •GPS functions are not needed during charging process.
PART A: CONFIGURING SETTINGS FOR THE TRACKBOX ASSISTED GPS (AGPS) Operating mode depends on the way, the device is used. Autonomous system, i.e. a plain battery model, normally Trackbox has capability to receive assistance to the GPS re- uses either mode, while a device with con- Low Power ceiver in order to speed up the initial position calculation.
SMS service number, must be configured in the device. In the will send its position to the service center at intervals of 60 Benefon Configurator, these numbers can be set in the Gen- minutes. Key in the tracking interval in minutes (1b).
(2d). SMS service number must be configured in the device. In the Benefon Configurator, these numbers can be set in the Gen- The alarm can be set to alert either when arriving in or de- eral telematic settings .
MPTP message to the device. Choose from the options below by checking the corre- Real time tracking is done via CSD data call. After successful sponding box in the Benefon Configurator. connection, the device starts to forward NMEA data directly •...
PART A: CONFIGURING SETTINGS FOR THE TRACKBOX SERVICE CENTER NUMBER PROTOCOL SETTINGS You can change and store the phone number, which is used for sending telematics protocol messages to the service cen- A u t h o r i z a t i o n ter.
Page 28
PART A: CONFIGURING SETTINGS FOR THE TRACKBOX M e s s a g e v a l i d i t y You can select the length of validity for telematics protocol messages, i.e. for how long the SMS messages are stored in the server of the operator (4).
PART A: CONFIGURING SETTINGS FOR THE TRACKBOX Authorized numbers The device is allowed to respond to protocol messages from the authorized numbers automatically, at any time. Authorized numbers are: •the numbers stored in the Authorized numbers list and •the Emergency center numbers •the Service center number For more, see...
PART A: CONFIGURING SETTINGS FOR THE TRACKBOX Notifications POOR SATELLITE COVERAGE Notify service center when satellite coverage drops : The de- vice can be configured to notify the service center if the sat- ellites are suddenly dropped and position is lost, e.g. when entering in a building.
PART A: CONFIGURING SETTINGS FOR THE TRACKBOX EMERGENCY CONFIRMATION EMERGENCY CALL CONNECTION WAITING TIME You can request the emergency center to send a confirma- tion of the emergency message. The emergency center will You can define for how long a time the device tries to call a then send the confirmation to the device as soon as it re- single emergency center number before moving on to the ceives the emergency message.
PART A: CONFIGURING SETTINGS FOR THE TRACKBOX The device tries to reach contact with the other numbers - For more information on Emergency cycle, see EMER- once before moving on to the next number in the list. If GENCY CYCLE (I/O MODEL ONLY) ON PAGE 52 there is still no answer after going through the whole list, - For more information on Event log, see EVENT LOG SET-...
PART A: CONFIGURING SETTINGS FOR THE TRACKBOX Digital output pins SETTING EVENT STATE Determine Event state for the digital output pin. The circuit can be set for High . Click the arrow and highlight the desired option (2). A change in the event state causes grounding of a pin. The change can be done by sending a specific MPTP message to the device.
PART A: CONFIGURING SETTINGS FOR THE TRACKBOX SETTINGS FOR DIGITAL INPUT PINS • Write in event log : The device only writes down the event in the Event log A c t i v a t i n g d i g i t a l i n p u t p i n •...
PART A: CONFIGURING SETTINGS FOR THE TRACKBOX STATUS MESSAGES FOR DIGITAL INPUT PINS ALTERNATIVE FUNCTIONS FOR PIN9 ACTIVITY A status message is a special short message, which includes Assistance call feature is in use, the digital input pin9 is the status message text, additional text information and the reserved for making assistance calls.
PART A: CONFIGURING SETTINGS FOR THE TRACKBOX SETTINGS FOR ANALOQUE INPUT PINS S e l e c t i n g e v e n t You can determine the way, the device responds to an event. Click the arrow on the Event data field and highlight the de- A c t i v a t i n g a n a l o g u e i n p u t p i n...
PART A: CONFIGURING SETTINGS FOR THE TRACKBOX D e f i n i n g n o t i f i c a t i o n d e l a y STATUS MESSAGES FOR ANALOGUE INPUT PINS The device can be configured to allow some millseconds to pass until the event will be registered or interpreted as a A status message is a special short message, which includes cause for taking an action.
Page 41
PART A: CONFIGURING SETTINGS FOR THE TRACKBOX AMPLE CASE Setting both High and Low reference values for the an- alog input pin. In this sample case the idea is to keep, e.g. the liquid level of a container in be- tween 20 - 80 % of the con- tainer´s capacity.
Page 42
PART A: CONFIGURING SETTINGS FOR THE TRACKBOX AMPLE CASE Setting both High and Low reference values for the analog input pin. In this sample case the idea is to keep, e.g. the temperature either above or below of some value. Low (70%) and High (30%) reference values are threshold values, i.e.
PART A: CONFIGURING SETTINGS FOR THE TRACKBOX Log settings POSITION LOG INTERVAL With the position log interval setting, you can determine the device to store plain positions at pre-defined intervals. This way positions are calculated and logged more frequently. Key in the interval in seconds (1). The interval can be set be- tween 15 and 65536 seconds.
Page 44
PART A: CONFIGURING SETTINGS FOR THE TRACKBOX E v e n t l o g t r a n s m i s s i o n l i m i t W h a t t o d o w h e n e v e n t l o g i s f u l l The limit (3) indicates, how much space is left for events in With this setting (4) you can define how to proceed when Event log.
Page 45
3. Benefon Configurator: The Event log information can also be transferred or cleared locally, by using the Benefon Con- figurator software and BWTrackbox cable connection. - You may proceed this way if you can wait until the de- vice "returns home".
PART A: CONFIGURING SETTINGS FOR THE TRACKBOX WAYPOINT TRACKING area in meters. The radius should be rounded to tens, otherwise the software does the rounding. E.g. by enter- ing 67, the actual radius will be rounded to 70 meters. 50 meters is the minimum value.
NOTE: If you generate the new message encryption key and transfer it locally via the data cable, the distribution key is NOTE: The device must be connected to the Benefon Con- not needed. figurator software all the time during the procedure.
PIN code is entered automatically by the device software. - SMS and MPTP messages are NOT encrypted. The PIN code can be changed in the Benefon Configurator - Only MPTP messages are encrypted. by choosing Change PIN code...
PART B: OPERATING THE TRACKBOX Incoming short messages PART B: OPERATING THE An incoming short message is echoed to the system connec- TRACKBOX tor, so that an external device can check it. Reading, writing, sending and receiving normal short messages via the Track- box is possible only in case the Trackbox is connected to INCOMING CALLS AND MESSAGES an external device, such as a computer.
AT commands are used when configuring settings with the For more information on remote configuration, see the sep- Benefon Configurator, or some similar application. The AT arate MPTP document. commands can be used for carrying out similar things that are done via MPTP messages.
The device can be configured to inform the service center of culated positions. various incidents on its battery status. This configuration can be done via the Benefon Configurator, or by sending a Resending MPTP messages specific MPTP message to the device.
- Configuring settings can be done either by using the The emergency message contains both GPS coordinates and Benefon Configurator and transferring the settings to GSM network measurement report. the device locally, via the data cable, OR by using the...
Page 53
PART B: OPERATING THE TRACKBOX V o l u n t a r y s e t t i n g s C i r c u m s t a n c e s w h i c h m a y a f f e c t o n e m e r g e n c y c y c l e 1.
PART B: OPERATING THE TRACKBOX Making assistance call THE EMERGENCY CYCLE WHEN SENDING SHORT MESSAGES AND MAKING CALLS 1. An assistance call starts as the status of the digital input 1. An emergency cycle can be initiated by pressing the sep- pin9 changes.
PART B: OPERATING THE TRACKBOX Sending status messages (for digital input pins), and PAGE 36 ACTIVATING ANA- (for analogue pins). LOGUE INPUT PIN ON PAGE 39 Status messages are related to digital and analoque input 5. Event status for the needed pins must be defined. A pins.
PART B: OPERATING THE TRACKBOX Positioning features C i r c u m s t a n c e s w h i c h m a y a f f e c t o n s e n d i n g s t a t u s m e s s a g e s 1.
Calculation of the position needs a separate server, available from Benefon Partners. The device cannot calcu- late the position based on network parameters by itself. OUTGOING CALLS AND MESSAGES 57...
Configurator by data cable. The log is loaded from the de- vice to the software the same way as other settings. For more 1. First save the log in Benefon Configurator. The log file information, see LOADING SETTINGS FROM THE TRACKBOX TO identifier will become .log.
For more information on logging events and positions, and transferring the log, see LOG SETTINGS ON When the Benefon Configurator loads the log directly from PAGE 43 the device, the event log file appears automatically in the display in readable text format. The...
When the modem configuration is done, you may save the file by clicking Save as... from the File menu. E.g. when using the Benefon mobile phone as the receiving phone, transfer speed must be set to 19200 Bits/Second. Close the connection by clicking Disconnect from the Call menu.
Event log files cannot be edited in Benefon Configurator. In order to modify or print the log file, do as follows: 1. First save the log in Benefon Configurator. The log file identifier will become .log. 2. Open Windows Excel or Notepad. Make sure, the Files of type shows All files.
PART C: POWER MANAGEMENT CHARGING PART C: POWER MANAGEMENT The battery must be fully charged before taken into use. The battery will reach its full capacity only after two or three POWER SUPPLY charging times. The device contains built-in charger plus one of the follow- The device controls the charging status, the battery temper- ing batteries: ature and power supply during the charging operation.
PART E: IMPORTANT SAFETY INFORMATION bling the device carefully, inserting the rubber seal to tighten battery and using o-ring seals with screws. If the PART E: IMPORTANT SAFETY device is frequently used in damp conditions, it is recom- INFORMATION mended to provide it with separate housing, which does not prevent antenna signals.
PART E: IMPORTANT SAFETY INFORMATION SAFETY AND PRECAUTIONS The Global Positioning System (GPS) is operated by the gov- Telematics protocol ernment of the United States, which is solely responsible for its accuracy and maintenance. The system is subject to MPTP (Mobile Phone Telematic Protocol) allows, among changes that could affect the accuracy and performance of other things, tracking of the device over the SMS communi-...
PART E: IMPORTANT SAFETY INFORMATION General safety notes especially careful when placing batteries inside your pocket, purse, or other container with metal objects. •Traffic: It is advisable to strictly adhere to all eventual accessories: Any other accessories used should •Other European and national legislation and also honour other also be approved by the device manufacturer.
PART E: IMPORTANT SAFETY INFORMATION FCC Statement dard (NFPA-58). For a copy of this standard, contact the Na- tional Fire Protection Association, One Batterymarch Park, The device is designed for and intended to be used in fixed Quincy, MA 02269, Attn: Publication Sales Division. and mobile applications.
PART E: IMPORTANT SAFETY INFORMATION Any changes or modifications to your phone not expressly •Posted facilities and country-specific regulations: approved in this document could void your warranty for this Power down the device in any facility where posted equipment and void your authority to operate this equip- notices so require.
PART E: IMPORTANT SAFETY INFORMATION Ancillary equipment Benefon cannot be responsible in any way for any ancillary equipment not provided by Benefon, which is attached to or used in connection with Trackbox or for the operation of Trackbox with any ancillary equipment and all such equip- ment is expressively excluded from the warranty of Track- box.
Benefon during the warranty period. cidental, punitive or consequential damages, or loss of use. BENEFON warrants its products to be free of defects in ma- terial or workmanship when leaving the factory. If a defect is found during the given warranty period, the customer...
