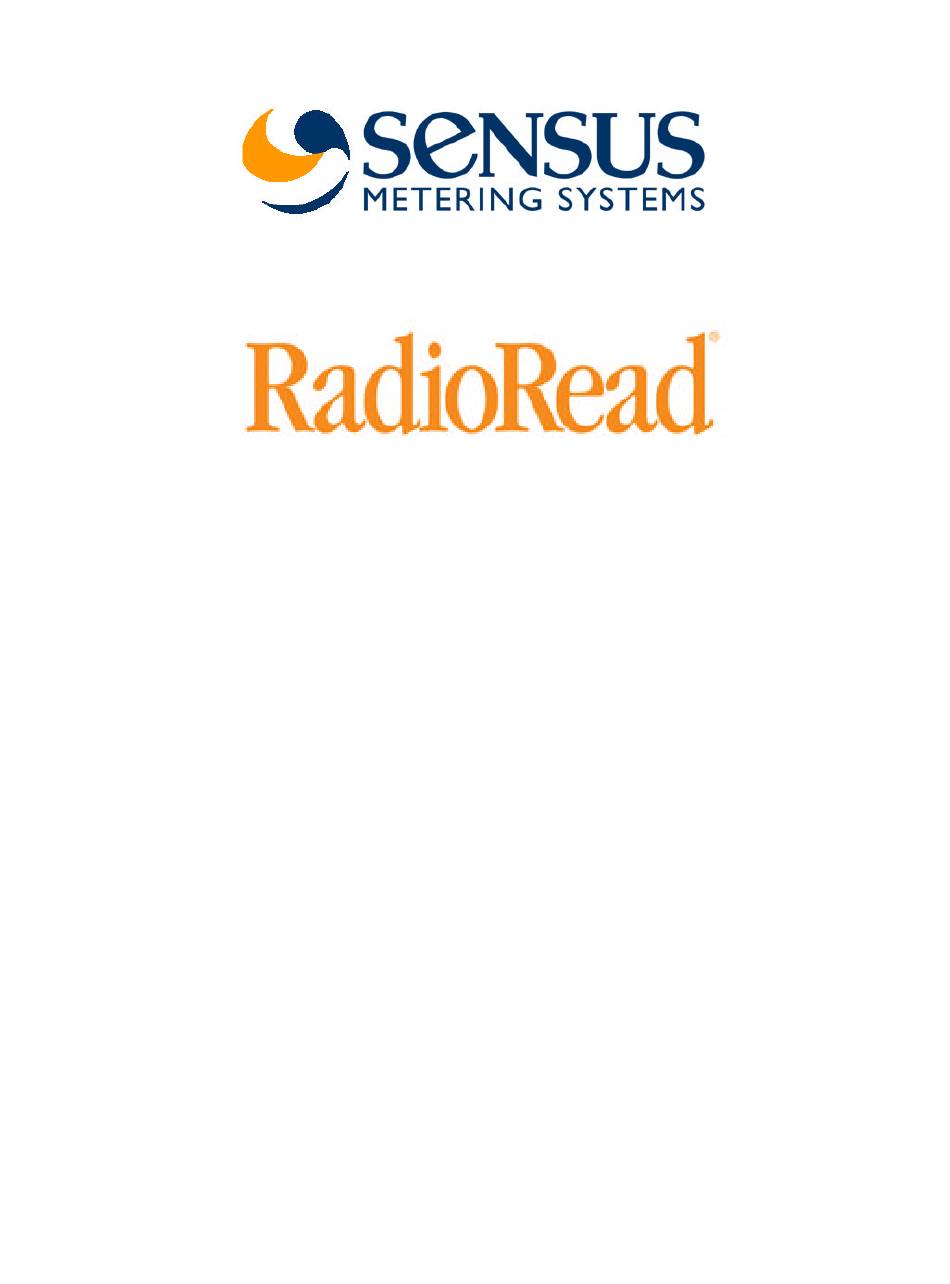

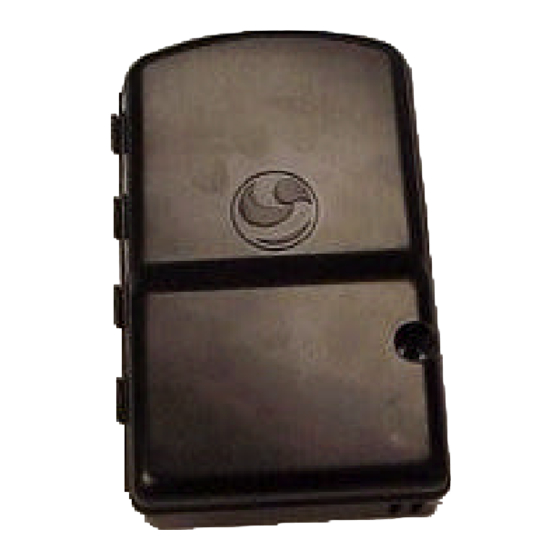

- Page 1 Model 510 Installation Instructions...
- Page 2 Definitions 1 – Sensus TouchPad 2 – TouchPad Cover 3 – TouchPad Cover, Tinnerman Type Fastener, TouchPad Locking Clip 4 – Model 510 Radio (Front View) 5 – Model 510 Radio (Rear View with knockout) 6 – Model 510 Radio and TouchCoupler Spacer with TouchPad Cover...
-
Page 3: Table Of Contents
Table of Contents Single Port – TouchCoupler Installation ____________________________________ 4 Dual Port – TouchCoupler Installation _____________________________________ 5 Single and Dual Port – Wired Installation ___________________________________ 6 Activate Radio__________________________________________________________ 7 Appendix A: ___________________________________________________________ 9 Appendix B: Regulatory Information _____________________________________ 12... -
Page 4: Single Port - Touchcoupler Installation
Single Port – TouchCoupler Installation 1) While Model 510 Radio and TouchCoupler Spacer with TouchPad Cover all still assembled, align the TouchPad Cover over the Sensus TouchPad that is secured to the wall and press on whole assembly. 2) For additional support, open Model 510 Radio door and screw two screws using the holes located above the battery compartment. -
Page 5: Dual Port - Touchcoupler Installation
Dual Port – TouchCoupler Installation 1. First choose which Sensus TouchPad will be covered remotely. Place the remote the TouchPad Cover over the Sensus TouchPad. 2. While Model 510 Radio and TouchCoupler Spacer with TouchPad Cover all still assembled, align the TouchPad Cover over the Sensus TouchPad that is secured to the wall and press on whole assembly. -
Page 6: Single And Dual Port - Wired Installation
Single and Dual Port – Wired Installation 1. Open Model 510 Radio door. 2. Secure Model 510 Radio to a wall utilizing the screw holes above the battery compartment. 3. Run the register wires through the bottom of the Model 510 Radio and connect to the appropriate terminals. -
Page 7: Activate Radio
4.) If successful detection, it should provide either a TouchRead reading (Sensus only) or a single beep to indicate that the encoder is connected but TouchRead is not supported via the radio 5.) If detection is unsuccessful, the TouchRead will beep once and restart the activation similar to step 2 above. - Page 8 • ID: MXUGPTC2 – which means that the port was configured for a mete r type that supports TouchRead (Sensus only) but there was no response from the meter. 5.) If unsuccessful detection, the TouchRead will start the activation process again. The ID on the AutoGun will display MXUGPTC0 similar to the step 2 above.
-
Page 9: Appendix A
Appendix A: The following photos show how the PCB is oriented and installed into an enclosure. -
Page 12: Appendix B: Regulatory Information
Appendix B: Regulatory Information FCC Information to User: Changes or modifications not expressly approved by Sensus Metering Systems could void the user's authority to operate the equipment. In order to meet FCC’s RF exposure limits in section 1.1307 of the Rules, a minimum separation of 20 cm must be maintained between the antenna of this device.
