Monroe Electronics 177A Instruction Manual

Multi-point fieldmeter and alarm system
Hide thumbs
Table of Contents

Advertisement

Quick Links

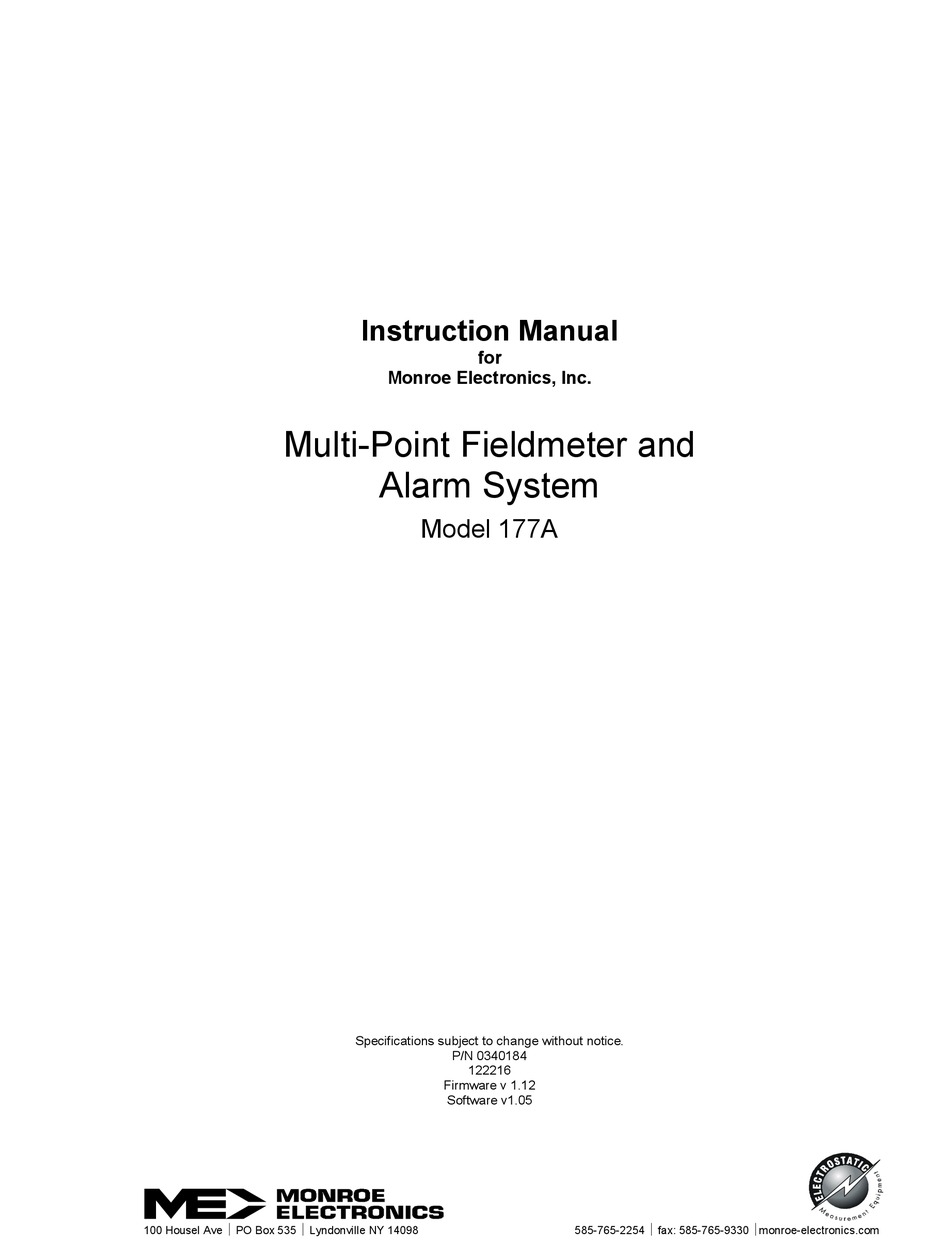

Instruction Manual
for
Monroe Electronics, Inc.
Multi-Point Fieldmeter and
Alarm System
Model 177A
Specifications subject to change without notice.
P/N 0340184
122216
Firmware v 1.12
Software v1.05
100 Housel Ave  PO Box 535  Lyndonville NY 14098
585-765-2254  fax: 585-765-9330 monroe-electronics.com
