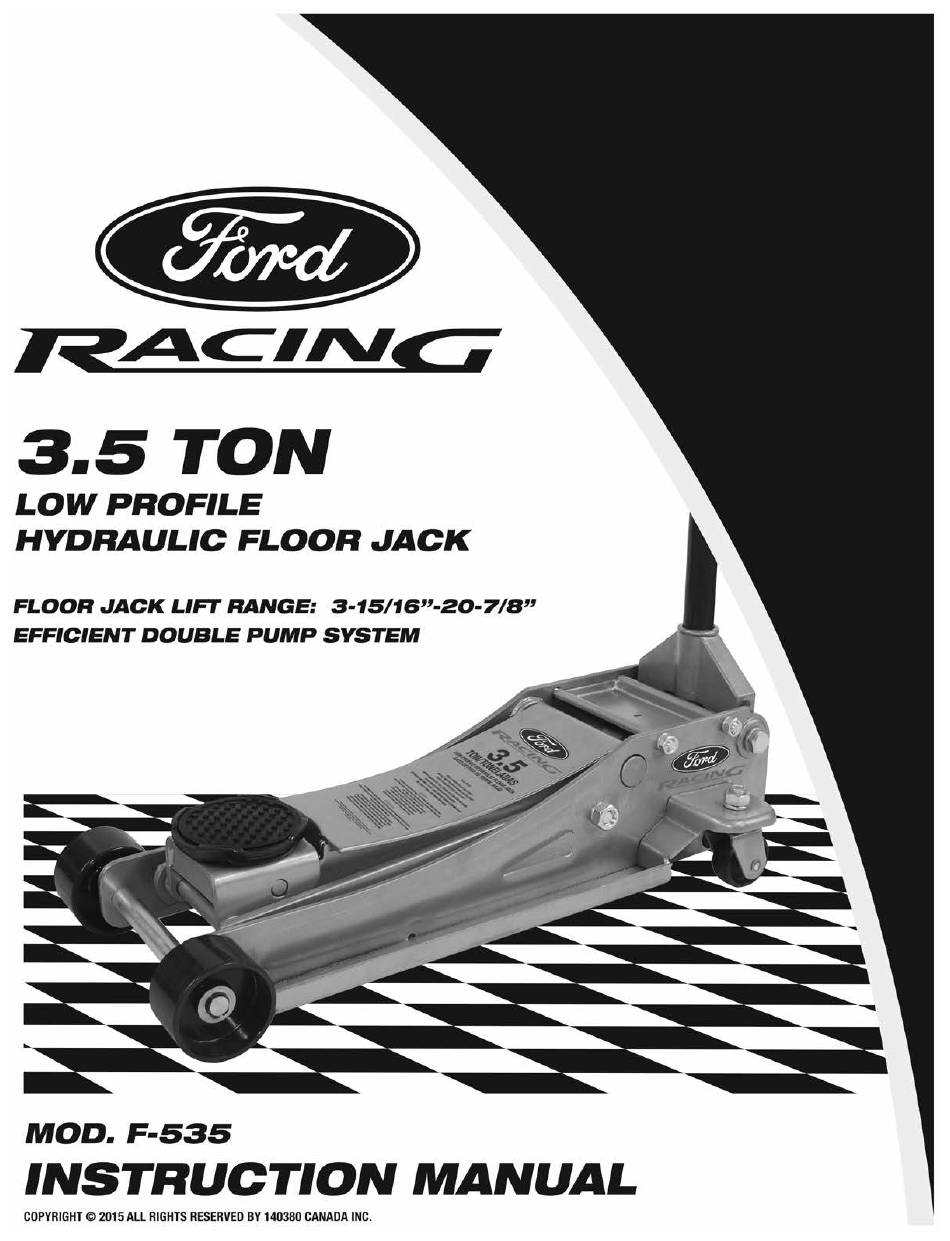

Ford Racing F-535 Instruction Manual

3,5 ton low profile hydraulic floor jack
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the F-535 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ford Racing F-535

  • Page 2 GENERAL & ADDITIONAL SAFETY INSTRUCTIONS GENERAL SAFETY RULES 5. USE RECOMMENDED ACCESSORIES. Consult the manual for recommended accessories. Follow the in- structions that accompany the accessories. The use of improper 1. KNOW YOUR TOOL Read and understand the owners manual and labels affixed to the accessories may cause hazards.
  • Page 3 7. Caster wheel (1 of 2) 3. Floor jack frame 8. Double pump system 4. Lifting arm 9. Pump handle hex. bolt SPECIFICATIONS MODEL F-535 Maximum capacities 3.5 Ton Floor jack minimum height 3-15/16” (100mm) Floor jack maximum height 20-7/8” (530mm) Floor jack saddle diameter 4-3/4”...

  • Page 4: Operation

    OPERATION SETTING UP AND OPERATING LOW PROFILE FLOOR JACK ASSEMBLY- FLOOR JACK 1) Remove pump handle hex. bolt (A) Fig.1 and attach top and botton handles (B) together. Make sure the holes in both handles are aligned and secure the handles together using the pump handle hex.

  • Page 5: Operation And Maintenance

    OPERATION & MAINTENANCE Lowering load with floor jack 1) Turn the pump handle counterclockwise VERY  SLOWLY to open the release valve and slowly lower the vehicle onto jack stands (jack stands not included). 2) Once repair work is completed, raise the vehicle just enough to remove jack stands (jack stands not included). Then slowly lower the vehicle to the ground.

  • Page 6: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING Problem Corrective action Unit will not lift load. Check oil level, add hydraulic oil if necessary and purge air from system. Unit will not sustain load. Purge air from system. Unit will not lift to full height. Excessive weight, decrease weight or use higher capacity unit. Check oil level, add hydraulic oil if necessary and purge air from system.
  • Page 7 DIAGRAM & PARTS LIST MODEL F-535 Order# Description Order# Description 9505350010 Retaining ring/shaft 9505350020 Front wheel 9505350030 Hex. nut 9505350040 Shaft 9505350050 Frame 9505350060 Hex. bolt 9505350070 Spring washer 9505350080 Hex. nut 9505350090 Hex. nut 9505350100 Spring washer 9505350110 Frame rod...
