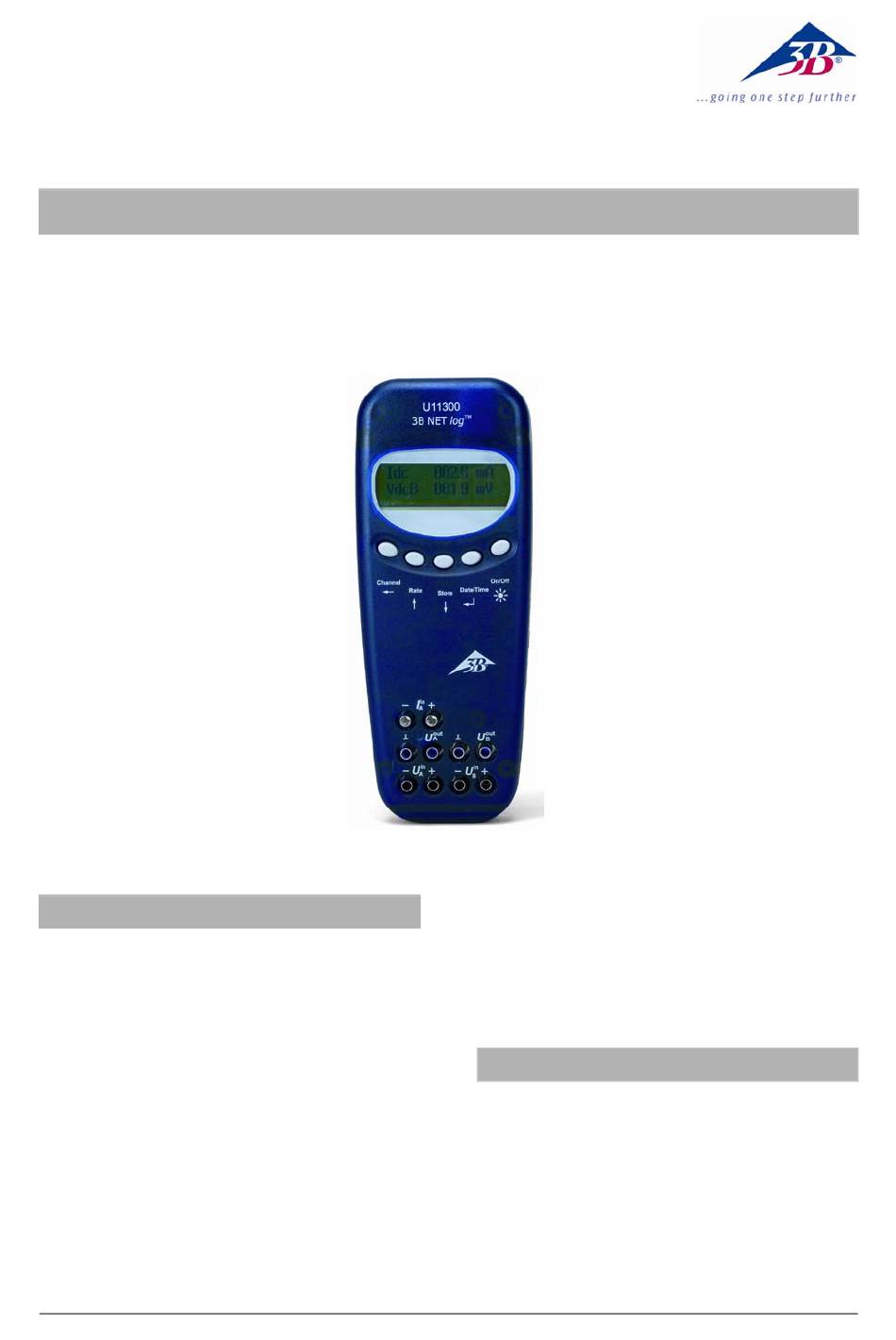

3B SCIENTIFIC ® PHYSICS
1000541 (115 V, 50/60 Hz)
1000009 (230 V, 50/60 Hz)
Instruction manual
14/06 MEC
1. Safety instructions
To guarantee the safe functioning of the
3B NETlog™ equipment, it is necessary to
abide by the following instructions:
•
Do not connect the 3B NETlog™ device to
a voltage in excess of ±20V or current in
excess of ±2A.
•
Make sure the 3B NETlog™ device does
not come into contact with water.
•
The 3B NETlog™ device should not be
exposed to temperatures above 80°C.
The operating voltage input is protected
against polarity reversal. However, it is not
protected against excess voltage.
•
Do not apply voltage in excess of 4.5V to
the operating voltage input.
3B Netlog™ with Ethernet port
Use of the Ethernet port requires a power sup-
ply of higher power rating.
•
When using the 3B NETlog™ unit with the
Ethernet port, supply power by means of a
plug-in power supply.
2. Scope of delivery
1
3B NETlog™ device
1
Power supply unit (4.5V DC, 300mA)
1
USB cable
1
Installation CD
1
Advertisement
Summary of Contents for 3B SCIENTIFIC PHYSICS 3B Netlog 1000541
- Page 1 3B SCIENTIFIC ® PHYSICS 3B Netlog™ with Ethernet port 1000541 (115 V, 50/60 Hz) 1000009 (230 V, 50/60 Hz) Instruction manual 14/06 MEC Use of the Ethernet port requires a power sup- 1. Safety instructions ply of higher power rating. To guarantee the safe functioning of the •...
- Page 2 4.2 Analogue outputs (channels A and B) 3. Introduction Reference point (earth): Common 3B NETlog™ is a multimedia data acquisition Measuring range: ± 5V and evaluation system for current and voltage Connections: 4-mm safety sockets measurements and for measurements using and 8-pin mini DIN sensors.
- Page 3 5.2 Operating controls 5. Description The operating controls of the 3B NETlog™ unit 5.1 Components consist of five multi-function buttons for opera- tion without connection to a PC. 1 Display 2 Operating controls On/Off button 3 Current input for • Switching the device on and off (keep the channel A button pressed for approx.
- Page 4 • Connect 3B NETlog™ to the computer via 5.4 Connection of sensors the USB cable. Connected sensors are automatically detected by the 3B NETlog™ device. The following The computer reports that it has detected a status message appears on the display: new hardware.
- Page 5 Exception: 7.2 Software installation Note on installing the software For this software, please refer to the installa- If the software for the CCD linear tion instructions available in the 3B NETlab™ camera (1013311) is already installed on your software manual. computer, carry out the following instructions: •...
- Page 6 Confirm by pressing the Date/Time ↵ but- STORE ANALOGUE INPUT 1, STORE • ANALOGUE INPUT 2 and STORE BI- ton. NARY INPUTS will appear in succession). • Select YES or NO for each setting with the 8.4 Application as a handheld device for Rate ↑...
- Page 7 Use the Date/Time ↵ button to confirm this, • Turn off the 3B NETlog™ device and un- • plug the Ethernet cable. then plug in the Ethernet cable to connect the 3B NETlog™ unit to the local network. Press down the Store ↓ button and turn on •...
- Page 8 Time elapsed: shows the time that has 9.5 Entering an IP address into 3BNET- elapsed since the beginning of the read opera- lab™ tion. • Run 3BNETlab™. Time remaining: shows the approximate time • Set up a new data entry in “Measurement remaining for the read operation.
- Page 9 10.4 Reading and saving measurement data 11. Update Firmware Reading and saving measured data with the • In the 3B NETdata software, click “Update 3B NETlog™ equipment: firmware” tab. • Connect the 3B NETlog™ equipment to a • Follow the instructions in the left-hand sec- computer via USB cable.
- Page 10 13. Faults and possible remedies 16. Licence 3B Netlog™ and 3B Netlab™ are registered Fault Cause Remedy trademarks of 3B Scientific GmbH in Germany The batteries Replace with and other countries. 3B NET- are worn out. new batteries The 3B Netlab™ computer program is pro- log™...
- Page 11 3B Scientific GmbH • Rudorffweg 8 • 21031 Hamburg • Germany • www.3bscientific.com Subject to technical modifications © Copyright 2014 3B Scientific GmbH...
