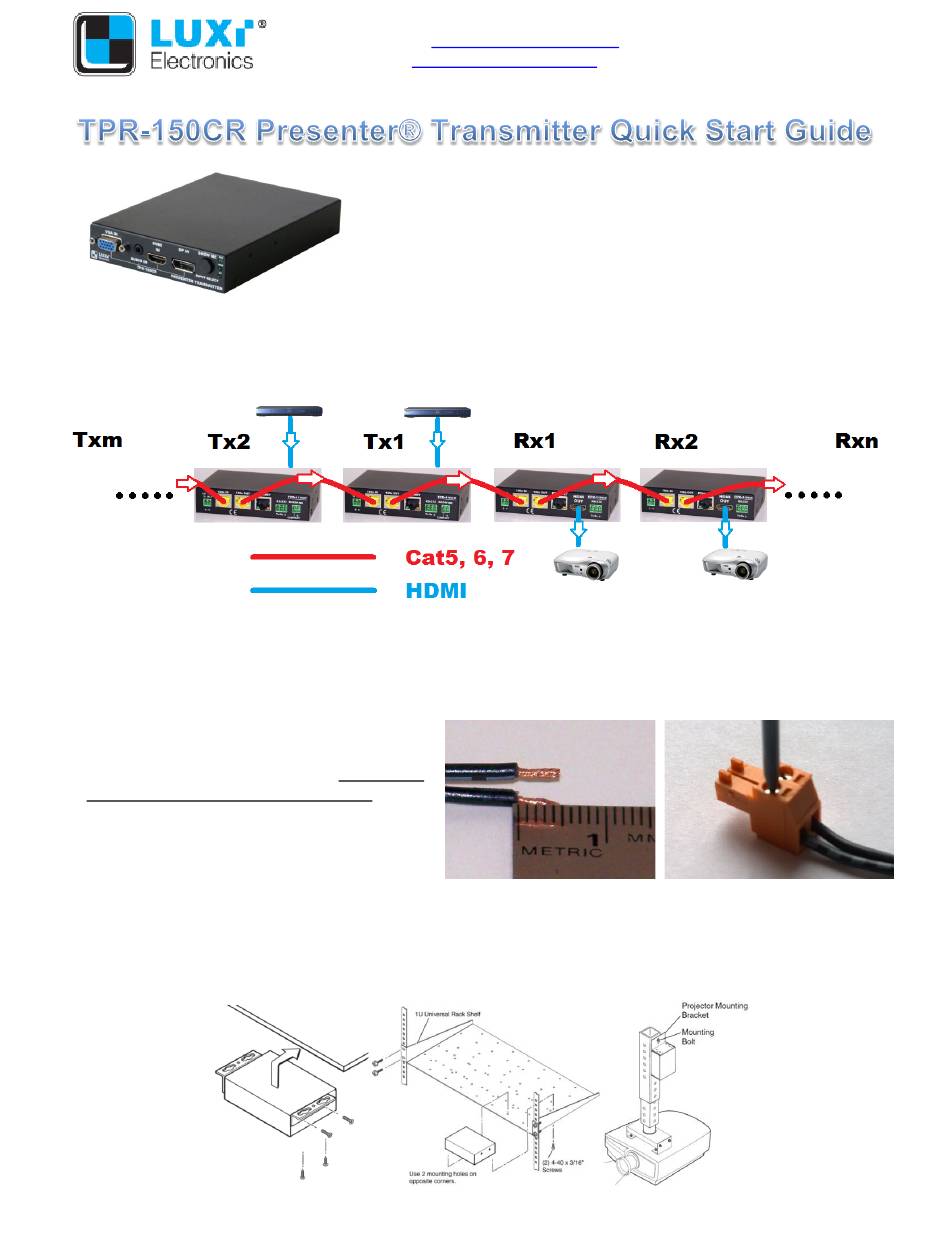

Luxi Electronics Presenter TPR-150CR Quick Start Manual

the specs on page 4 for details. The rear PCB has the daisy chain circuits. Think of the daisy chain as
the flow of a river; each transmitter (Tx) connects to a source device and loads the signal to the river
flow; each receiver (Rx) unloads the signal from the river flow and sends it to the display it is connected
to. The front panel and the RS-232 controls determine which source signal goes to which display.
Power options: This product draws power from an external 12 V power supply sold separately (Luxi P/N
69-002-01). Do NOT plug the power supply connector into any other connectors; this could cause
permanent damages to the product and void the warranty.
Captive screw plug termination: The captive
screw plugs for power, RS-232 and contact
controls are supplied with the unit. Separate
the wires about 1" (2.5 cm) long; strip off the
wire insulation precisely 3/16" (5 mm) from
the end. Identify the positive and negative
leads for power; Luxi power supply has a
white stripe on the positive wire. If not sure,
use a multi meter to verify.
Mounting options: Luxi has the under desk mount sold separately (Luxi P/N 78-002-01); the product
also fits many other mounting hardware from Extron, Middle Atlantic, etc. Only use the type 4-40, 3/16"
(5 mm) long screws supplied with the mounting hardware to screw onto the product. Wrong type of
screw could strip the threads; too long screw could touch and short the internal circuit, cause
permanent damages to the product and void the warranty.
Document name: TPR-150CR quick start guide Revision: 1.46
Website: www.luxielectronics.com
Email: xlu@luxielectronics.com
Thank you for purchasing the Luxi Electronics® TPR-150CR
Presenter® transmitter. Please read through this guide before
using the product.
How the product functions: The TPR-150CR has 2 PCBs. The
front PCB has the switcher and scaler; please refer to the "Video
signal path" and "Audio signal path" sections in the right column of
Specifications are subject to change without notice
Phone: +1 (949) 654-2047
Address: Irvine, CA, USA
Date: 12/21/2017
