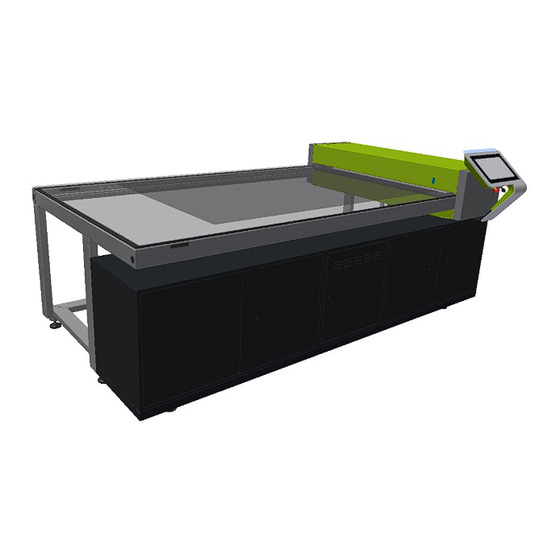

Summary of Contents for Esko XPS CRYSTAL TOUCH 18.0

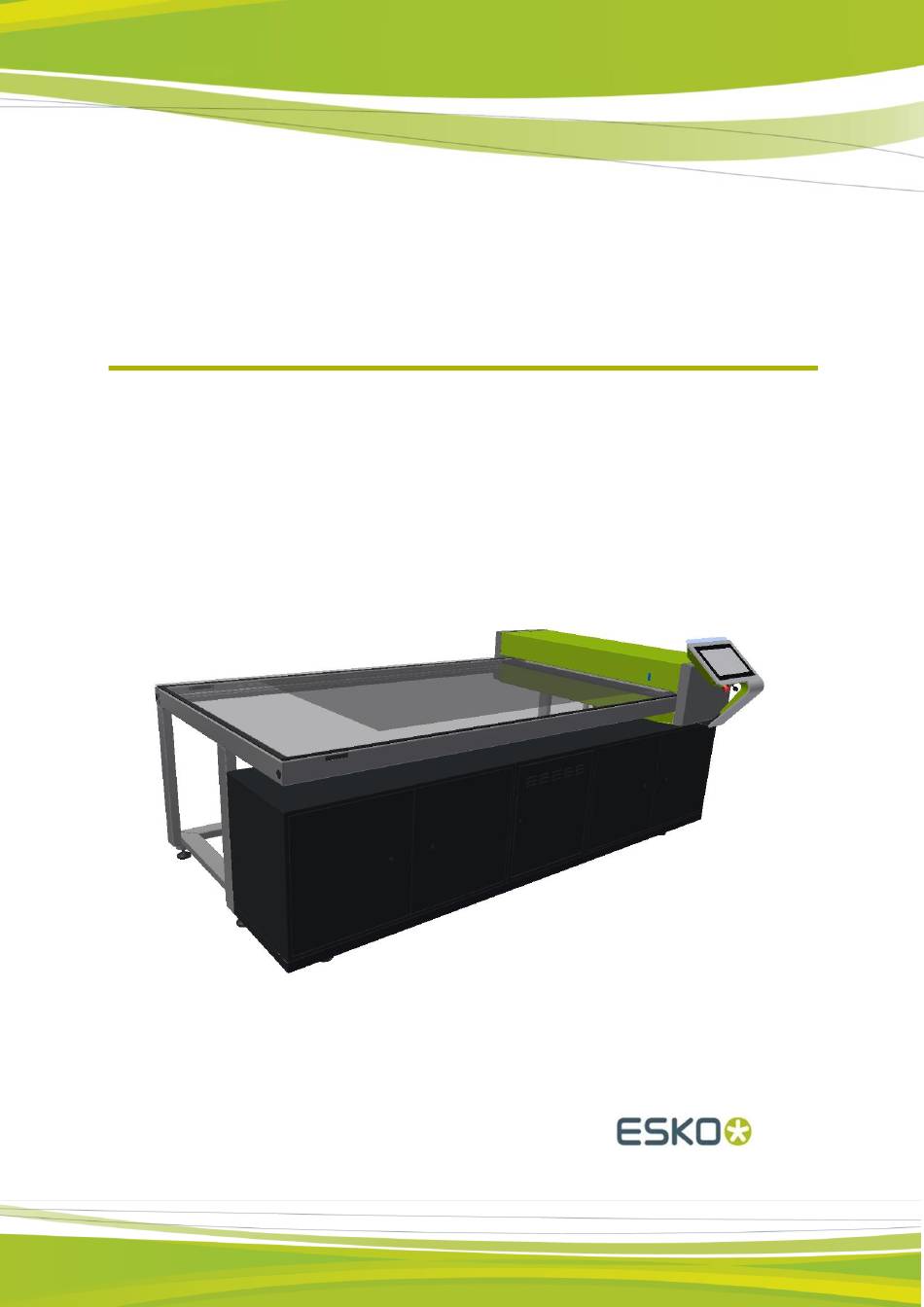

- Page 1 XPS C 18.0 RYSTAL OUCH USER MANUAL 21.06.2018...
- Page 2 Esko-Graphics is not responsible for direct or indirect damages caused by the logical consequences or latent damages which may result from the use of the software, or from the impossibility of software use or of the information contained herein.
-
Page 3: Table Of Contents
XPS Crystal Touch 18.0 – Operating Manual ABLE OF ONTENTS Operation of the XPS Crystal Touch Software ............. 4 Start UV exposure ......................4 Stop UV exposure ......................5 Add new plate types ..................... 6 Delete plate type ......................7 Change desired relief .................... -
Page 4: Operation Of The Xps Crystal Touch Software
XPS Crystal Touch 18.0 – Operating Manual 1 Operation of the XPS Crystal Touch Software This software is designed for a touch-sensitive screen. Start UV exposure Select plate Press the start button – exposure starts immediately The remaining time is shown in the progress display... -
Page 5: Stop Uv Exposure
XPS Crystal Touch 18.0 – Operating Manual The end of the exposure is shown. The removal of the plate from the XPS Crystal must be confirmed (4). Stop UV exposure Exposure can be stopped at any time: In this case, the plate is not exposed to UV fully and evenly! -
Page 6: Add New Plate Types
XPS Crystal Touch 18.0 – Operating Manual Add new plate types Switch to the options menu Select "Manage Plates" Select the "Add" field... -
Page 7: Delete Plate Type
XPS Crystal Touch 18.0 – Operating Manual Select the plate manufacturer Select the plate type In long lists, the fields can be scrolled upwards and downwards "OK" adds the plate to the active plate list Delete plate type Select in the options menu... -
Page 8: Change Desired Relief
XPS Crystal Touch 18.0 – Operating Manual Select the plate type Delete the plate type with "Remove" Change desired relief Select in the options menu Select "Manage Plates"... -
Page 9: Update Plate List Database
XPS Crystal Touch 18.0 – Operating Manual Select the plate type Change the value to the select relief in the "Relief" field Update plate list database Copy the plate database file to the main folder on a USB stick. Select in the options menu... - Page 10 XPS Crystal Touch 18.0 – Operating Manual Select "Update Platelist" Follow the instructions and then insert the USB stick...
- Page 11 XPS Crystal Touch 18.0 – Operating Manual When a valid file is found, the currently installed and new version are displayed The database is updated with "OK" In the info window the new installed plates are displayed – press "OK" to continue...
-
Page 12: Check Back Exposure "Check Floor
XPS Crystal Touch 18.0 – Operating Manual Check back exposure "Check Floor" Select in the options menu Select "Check Floor Height" Select plate Tap "Expose Test Plate"... - Page 13 XPS Crystal Touch 18.0 – Operating Manual As outlined on the screen, a part of the black layer of the Flexo Plate is removed. "UV Back Energy": the energy of the back exposure can be changed here, if necessary Tap "Expose Test Plate" – the plate is exposed Once the plate has been developed, select again Start "Measure Test Plate"...
- Page 14 XPS Crystal Touch 18.0 – Operating Manual Measure the plate thickness in the position in which the layer of the Flexo Plate was previously removed. Enter the measured value Confirm the value with "Enter" Measure the "Floor" thickness, tap the corresponding number and enter the values...
-
Page 15: Shut Down Xps Crystal
XPS Crystal Touch 18.0 – Operating Manual Shut down XPS Crystal Select in the options menu The system is shut down with "Switch OFF" Shutting down may take some time. Press the main switch only after the operating system has shut down completely. -
Page 16: Changing The Basic Settings
XPS Crystal Touch 18.0 – Operating Manual 2 Changing the basic settings Basic settings such as language, units and time are changed under "Preferences". These settings usually only need to be implemented once after commissioning. Change language Select in the options menu Select "Preferences"... -
Page 17: Show Time
XPS Crystal Touch 18.0 – Operating Manual Show time Select in the options menu Select "Preferences" Activate "Show Clock" Following a restart of the XPS, the time is shown at the top right... -
Page 18: Set Date And Time
XPS Crystal Touch 18.0 – Operating Manual Set date and time Select in the options menu Select "Preferences" Select "Set Clock"... - Page 19 XPS Crystal Touch 18.0 – Operating Manual The values are changed with the arrows to the right of the number "24 Hours" switches between 12 hour and 24 hour display Set the date Set the time The values are accepted and changed in the operating system with "Save"...
-
Page 20: Switch Units (Inch/Mm)
XPS Crystal Touch 18.0 – Operating Manual Switch units (inch/mm) Select in the options menu Select "Preferences" Select unit and press "OK"... -
Page 21: Support
XPS Crystal Touch 18.0 – Operating Manual 3 Support Contact information can be found on www.esko.com. Call Teamviewer for support Select in the options menu Teamviewer is started with "Support" Start-up may take some time.
