Instructions for Installation and Use
Please Read Before Installing
General Description
The HWI-TEL9 Single Line Telephone Interface
provides access to up to ten different functions or
events in the HomeWorks system from touch-tone
phones inside or outside the house. Each function
can be programmed to control any of the devices
connected to a HomeWorks system. Digitally
recorded voice messages provide custom responses
for each of the programmed functions.
Safety Precautions
Telephone lines conduct a small amount of electrical
current. Although unlikely to cause harm, the
following precautions are advised:
1. Disconnect the telephone line at the network
interface.
2. Never work with telephone wiring during a
thunderstorm.
3. Persons with pacemakers should never work with
telephone wiring.
Important Installation Information
The HWI-TEL9 is designed with multiple operational
modes, each of which is best suited for a particular
phone system configuration. Please read the section
on Configuration prior to installation if you are not
completely familiar with the options that are available
to you and your customer.

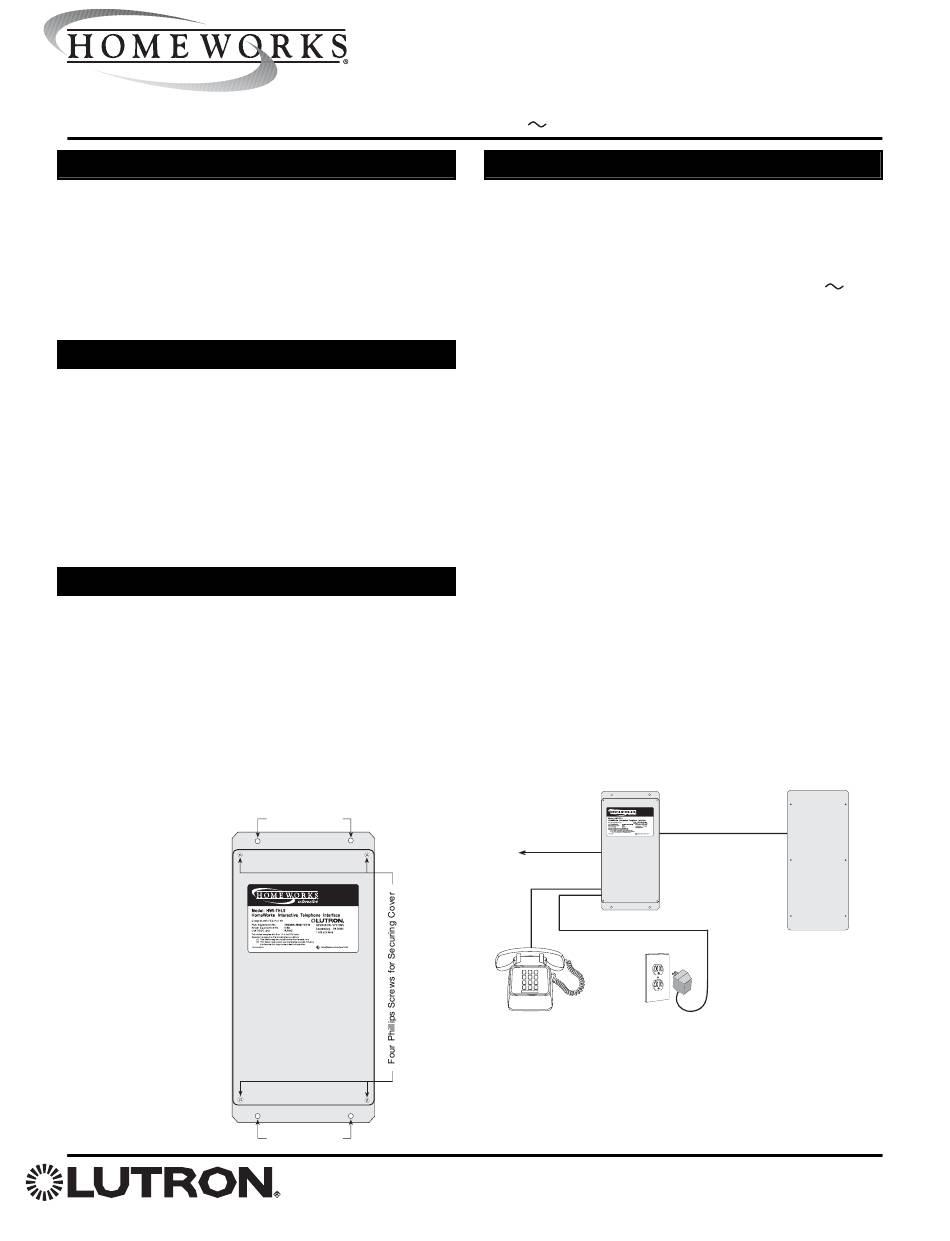

Figure 1 - Panel Mounting
Overall Size:
12.5"L x 6"W x 3.25"H
Mounting Holes
Mounting Holes
HomeWorks
Telephone Interface
®
HWI-TEL9
18 V
60 Hz 300 mA
Installation
Remove power from both the HomeWorks panel and
the HWI-TEL9 before wiring.
1. Surface mount the HWI-TEL9 enclosure on the
wall using the four mounting holes (see Figure 1).
The unit should be located near the phone line
point of entry, and within 6 feet of a 120 V
receptacle.
2. Remove the four phillips screws that secure the
cover of the enclosure.
3. Use the knockout in either the lower left or lower
right corner of the enclosure to pass wires
through for the: telephone line connections, plug-
in transformer cord, ground wire, and HomeWorks
Keypad Link (see Figure 2). The wires should be
strain-relieved using an entrance fitting.
4. This device must be permanently grounded.
Connect a ground wire to the green screw inside
the enclosure and run it to the chassis ground
connection at the telephone network interface.
5. Connect the HWI-TEL9 to the HomeWorks
Keypad Link using the supplied terminal block.
One pair #18 (terminals 1 and 2) and one pair
#18–22 twisted and shielded (terminals 3 and 4)
are required for connecting to the HomeWorks
Keypad Link (see Figure 2).
Figure 2 - Wiring Layout
HWI-TEL9
To Phone
Company
Inside
Plug-in
Transformer
Phones
HomeWorks
Panel
HomeWorks
Keypad Link
Note: Maximum total length
of any wire run on the
keypad link is 1,000 feet.
1
