Summary of Contents for Smacq Technologies Co., Ltd. PS2016 Series

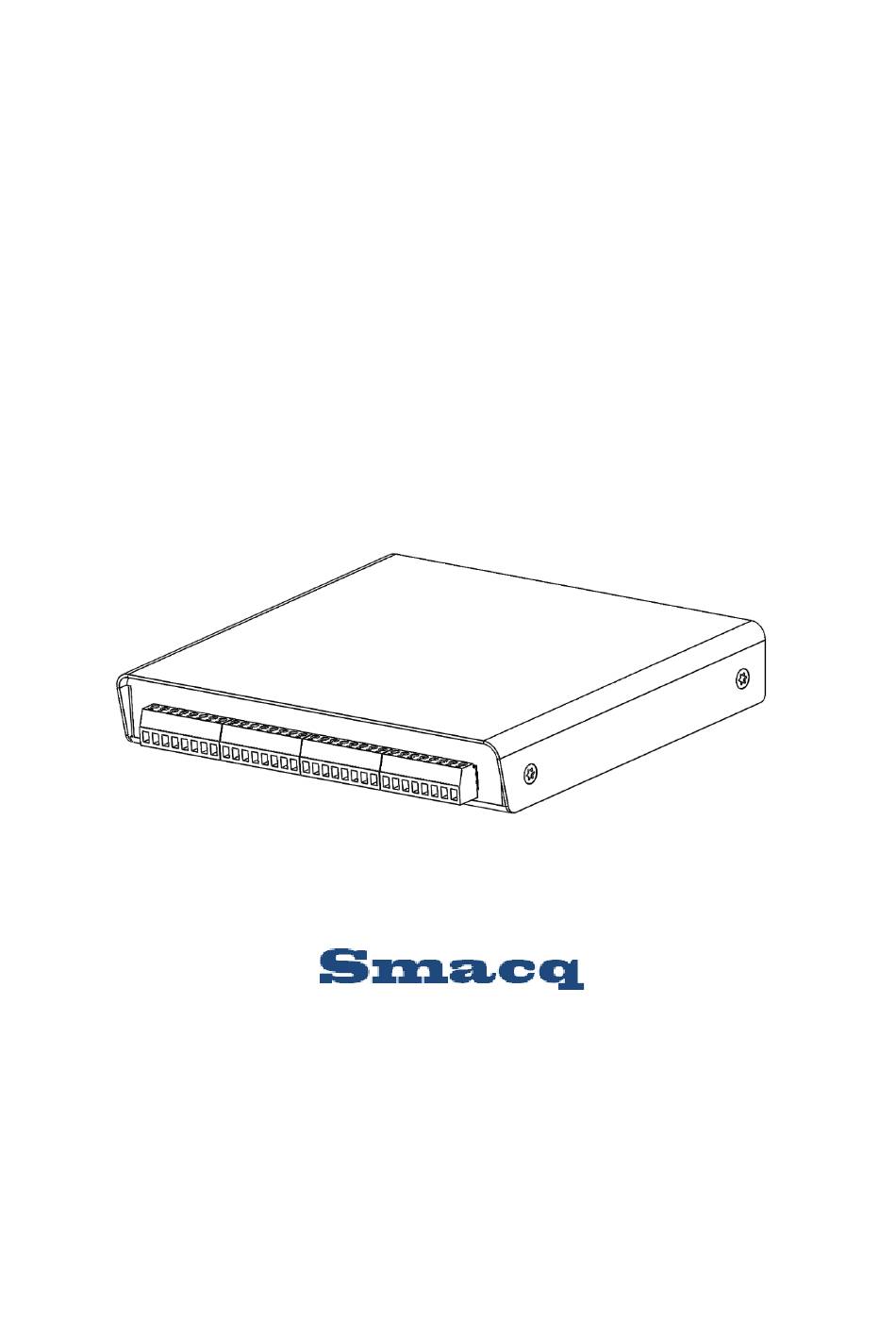

- Page 1 PS2016 Series High Precision Isolated Data Collector PS2016V /PS2016I PS2016V-485 /PS2016I-485 User Manual Rev: D Beijing Smacq technologies Co., Ltd. www.smacq.com www.smacq.cn...
-
Page 2: Table Of Contents
Content PRODUCT OVERVIEW ....................... 3 1.1........................ 3 ENERAL INTRODUCTION 1.2........................3 RODUCT FEATURES 1.3........................ 4 RODUCT SPECIFICATIONS PRODUCT APPEARANCE AND SIGNAL CONNECTION ..............5 2.1........................5 RODUCT APPEARANCE 2.2........................6 IGNAL CONNECTION INSTALLATION AND TESTING ....................7 3.1. -
Page 3: Product Overview
1. Product Overview 1.1. General introduction Smacq PS-2000 Series data collector is a compact, fully isolated multi-channel testing device with up to four and a half readings to ensure the accuracy of test data. It is ideal for design verification, automatic test and data acquisition, aging monitoring and many other test and measurement applications. -
Page 4: Product Specifications
1.3. Product specifications The following specification parameters, if not specified otherwise, were tested after running the device for 30 minutes under the temperature of 25 degree Celsius and the relative humidity of 40%. Diagram 1、Product specifications Model PS2016V PS2016V-485 PS2016I PS2016I-485 Parameters Voltage, Temperature... -
Page 5: Product Appearance And Signal Connection
Channel Channel type 2 line differential input Channel isolation >10GΩ Relay pull time Relay release time Mechanical 100,000,000 cycles；Electrical 500,000 cycles (full load) Relay life expectancy Bundled screw terminals Connection method Control method SCPI instruction Communication RS-485 RS-485 interface PSU(Built-in USB power USB power self-healing fuse) -
Page 6: Signal Connection
2.2. Signal connection The screw terminal connector in front of the DAQ device is for connecting the measured signals. On the back of the DAQ device, there are two groups of connectors, one USB interface for connecting with computers directly; the other RS485 interface for connection with computers or embedded processing system like PLC. -
Page 7: Installation And Testing
3. Installation and Testing 3.1. Driver installation When PS2016 DAQ device is connected to computers running Microsoft Windows for the first time, it will require installing the driver before the computer can recognize PS2016 correctly. Open the folder of "\PS Series DAQ/driver" on the Resources CD, double click the file "SETUP.EXE", then click "Install", and there will be a dialog of success after the driver is installed. -
Page 8: Software Installation
3.2. Software installation Open the folder "\PS Series DAQ\PS2016 - DAQ Lite Setup\Volume" and run the file "setup.exe". Set the installation directory for the software, click "Next" all the way till it's installed. Usually you can keep the default installation directory. Start the software after the installation. Figure 4 shows the software interface. - Page 9 Figure 5、Voltage signal test connection Make corresponding settings on PS2016-DAQ Lite, as shown in Figure 6, with detailed notes below. 1：Select the correct serial port connection. 2：Set the sampling cycle in seconds. 3：Set the range. Can be set as 20V or 200V range when measuring voltage signals. Attention ：...
- Page 10 Figure 6、Voltage testing settings Within the data acquisition interface after finishing the settings, click "START" button to begin the data acquisition and real-time data storage, as showed in Figure 7, with detailed notes below. 1: Start/Stop button 2: Real time value display. 3: Trend graph display.
-
Page 11: Temperature Signal Test
Figure 7、Voltage test acquisition interface 3.4. Temperature signal test When using PS2016 DAQ device to measure temperature, the thermocouple needs to be connected to the signal as shown in Figure 8 below. When using K type thermocouple, the maximum measuring range is 1100℃. When using other types of thermocouples, the maximum measuring range is the temperature range corresponding to 45.108mV on its indexing table. - Page 12 Figure 8、Thermocouple signal test connection You will need to set the range as "thermocouple" in settings, and choose the thermocouple type you use, as shown in Figure 9, with detailed notes below: 1：Choose correct serial port number 2：Set sampling cycle, measured in seconds. 3：Set range.
- Page 13 Figure 9、Temperature test setting Within the data acquisition interface after finishing the settings, click "START" button to begin the data acquisition and real-time data storage, as showed in Figure 10, with detailed notes below. 1: Start/Stop button 2: Real time value display. 3: Trend graph display.
-
Page 14: Data File Detail
Figure 10、Temperature test acquisition interface 3.5. Data file detail All data files are saved in .csv format, readable by Microsoft Excel, as shown in Figure 11 below. The data file consists of beginning time, cycle, measuring type and all original data for this acquisition. -
Page 15: Programming Guide
4. Programming Guide 4.1. Overview When you need to embed PS2016 into your own measuring and control system, you can control PS2016 via the SCPI instructions detailed in this chapter. USB interface The USB interface on PS2016 DAQ device is virtual serial port. It has a default baud of 9600, 8 bit data bits, 1 stop bit, no hardware handshake and its command uses linefeed "\n"... -
Page 16: Measurement Commands
Set DAQ device range. N can be set as 2, 3, or 9。 When set as 2, it represents the range of 20V; when set as 3, it represents the range of 200V; when set as 9, it represents measuring thermocouple. ADDR:[n] Set the address of RS-485 interface. -
Page 17: Ordering Information
5. Ordering information Device Model Notes PS2016V 16 channel differential voltage input, Thermocouple measurement with cold end compensation, USB interface PS2016I 16 channel current input, USB interface PS2016V-485 16 channel differential voltage input, Thermocouple measurement with cold end compensation, RS485 interface PS2016I-485 16 channel current input, RS485 interface Optional accessories... -
Page 18: Service And Warranty
6. Service and Warranty All Smacq products can be serviced free of charge under normal use within their warranty. Refer to the warranty notes inside their package for details. Unless otherwise provided in this manual or warranty statement, Smacq does not provide any other warranties, either express or implied. -
Page 19: Revision History
7. Revision history Date Version Notes 2016.8.30 Rev: A Initial release 1、 Added independent range setting for every channel in 2016.11.14 Rev: B software PS2016-DAQ Lite. 2、 K-type thermocouple supports measuring up to 1100℃. Change RS-485 connector pin detail to correspond to the 2017.3.30 Rev: C changes in products with RS-485 interface manufactured after...
