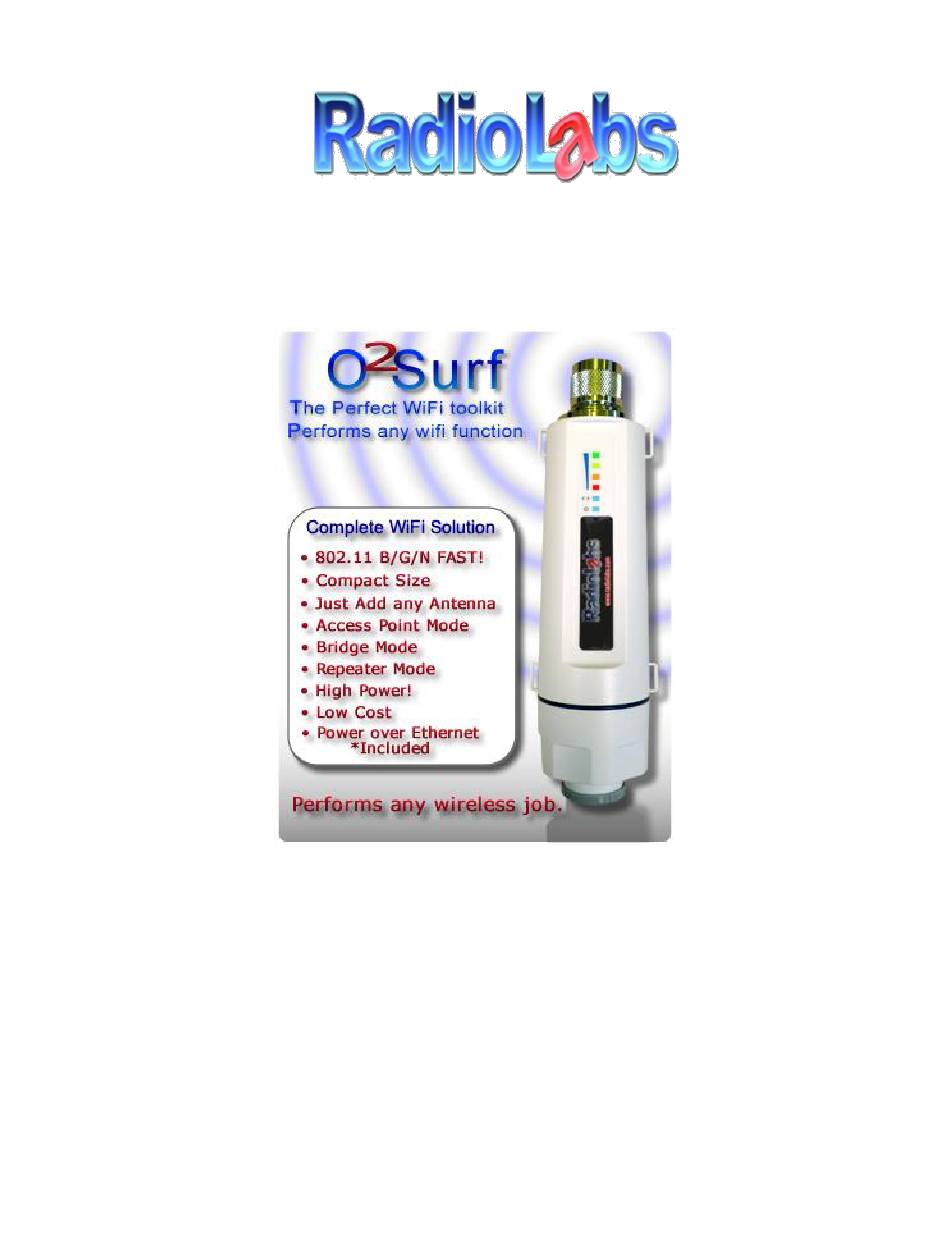

- Page 1 Wireless and Beyond www.radiolabs.com O2 Surf Access Point Guide Page | 1...
- Page 2 Thank you for purchasing the RadioLabs O2 Surf High Speed Wireless Platform. TheO2 Surf Access Point can act as a non‐routing LAN extension or as a NAT‐enabled gateway to link two locations via the IEEE 802.11N wireless protocol. Using this device, you will be able to broadcast a LAN connection with wireless speeds up to/over 100 megabits/second (condition and distance dependent).
- Page 3 If you are running Windows, click the Start Menu. Then click Control Panel. Then click Network and Sharing Center. Page | 3...
- Page 4 Click Change adapter settings. Right click on Local Area Connection, then click Properties Page | 4...
- Page 5 Click Internet Protocol Version 4 (TCP/IPv4), then click Properties Click Use the following IP address and match the info as seen here. Then click OK. Page | 5...
- Page 6 Open up a web browser (Google Chrome or Mozilla Firefox recommended), and navigate to 192.168.2.1 Log in information User Name: admin Password: admin Go to the Easy Setup tab and select AP Bridge from the dropdown list. Page | 6...
- Page 7 Here you can adjust your DHCP if need be. *You will only have this option if you use the AP Router function. Only use this mode if you need Surf to issue IP addresses. Here you can rename the network if you choose and apply security to your network.
- Page 8 Select the security for your network. The most common is WPA2-PSK. Next add the pre-shared key to encrypt your network. Last, navigate to Advanced-LAN Settings, and set the default gateway to same IP address as the Primary Router in your network. *If you change device to AP Router mode (which enables DHCP function in device) the LAN port becomes a WAN port.
- Page 9 Step 6: Revert IP Address Following the steps on Page 1 of this guide, navigate back into Network and Sharing Center. Click on Change Adapter Settings. Right‐click on Local Area Connection, then click Properties. Click Internet Protocol Version 4 (TCP/IPv4), then click Properties. Step 7: Deploy the Access Point Now the Access Point is configured, so you need to deploy it.
