Tower Hobbies KD58C Manual

Electric bicycle intelligent display
Hide thumbs Also See for KD58C:
Table of Contents

Advertisement

Quick Links

E L E C T R I C B I K E S
TOWER KD58C
ElectrIC BICYCLE
INTELLIGENT DISPLAY
Tower 14' xplorer
!SUP Manual
MANUAL
CONNECT WITH US
Twitter: @towerpb
FACEBOOK.COM/TOWERMAGAZINE
@TOWER.LIFE
Instagram: @paddleboard
terest.com/towerpb
Pin
Tower Electric Bikes
1253 Garnet Ave. San Diego, CA 92109
(866) 622-4477
TOWERELECTRICBIKES.COM
1 YEAR LIMITED WARRANTY
2 year limited warranty

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KD58C and is the answer not in the manual?

Questions and answers

Related Manuals for Tower Hobbies KD58C

Summary of Contents for Tower Hobbies KD58C

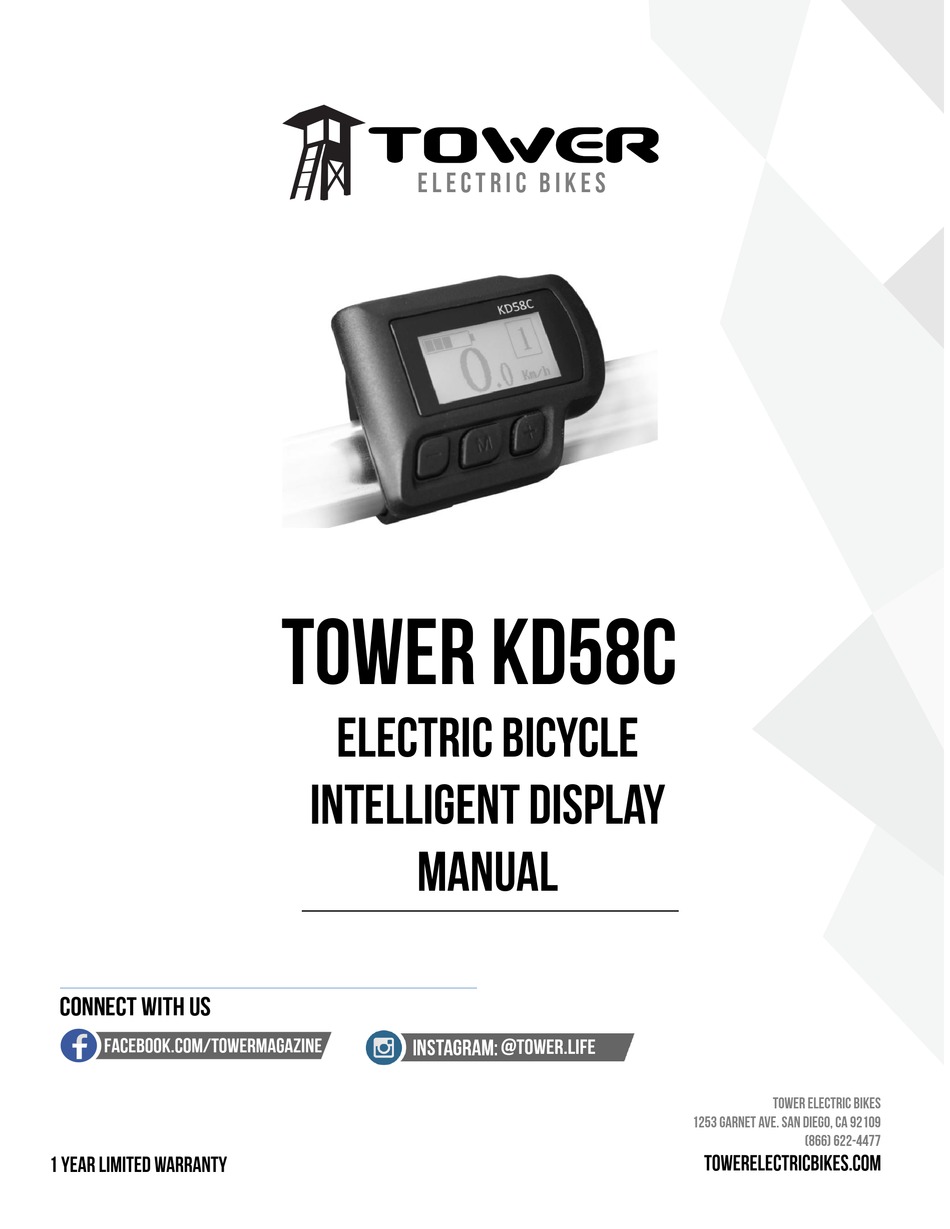

  • Page 1 E L E C T R I C B I K E S TOWER KD58C ElectrIC BICYCLE INTELLIGENT DISPLAY Tower 14’ xplorer !SUP Manual MANUAL CONNECT WITH US Twitter: @towerpb FACEBOOK.COM/TOWERMAGAZINE @TOWER.LIFE Instagram: @paddleboard terest.com/towerpb Tower Electric Bikes 1253 Garnet Ave. San Diego, CA 92109 (866) 622-4477 TOWERELECTRICBIKES.COM...

  • Page 2: Table Of Contents

    Contents: Product Name and Model Specifications Appearance and Size Function Summary and Button Definition Function Summary Button Definition Assembly Display Layout General Operation Display Layout Turning the eBike On/Off Display Interface Using Push Assist Mode Switching the Lighting On/Off Pedal Assistance Level Selection Power Indicator Power Code Identification General Settings...

  • Page 3: Product Name And Model

    Tower KD58C Electric Bicycle Intelligent Display Specifications ● 24V/36V /48V Power Supply ● Rated current: 10mA ● The maximum working current: 30mA ● Off leakage current: <1uA ● The supply controller working current: 50mA ● Working temperature: -20 ~ 60 ℃...

  • Page 4: Button Definition

    , ​ ​ - ​ ​ ) on the KD58C display that represent the following functions: ​ MODE​ , ​ U P ​ a nd ​ D OWN​ . Assembly All Tower electric bicycles arrive with the controllers pre-mounted and installed. In the case that the controller or display needs to be replaced, cut off the power before connecting or disconnecting the controller.

  • Page 5: Display Interface

    ● Trip Time (​ h ours​ ) ● Average Speed (​ m i/h​ ) ● Max Speed (​ m i/h​ ) Each interface will display for 2 seconds before automatically returning to the Running Speed interface. On the condition that the speed is 0 km/h, Total Distance (ODO) will be added to the circulation of available interfaces.

  • Page 6: Power Indicator

    Power Indicator: The motor output power will be displayed on the display: Motor Power Indicator Interface Error Code Identification: If there are errors regarding the electronic control system, an error code will appear automatically. A list of error codes and definitions can be found in ​ F igure 2​ at the end of this manual.

  • Page 7: Wheel Diameter Settings

    Setting 3: Wheel Diameter Settings The “Set WD” setting is pre-set to the correct value for this eBike (26”). This cannot be adjusted. Setting 4: Speed Limit Settings Select “Set LS” to change the speed limit settings. When running faster than the speed limit, the eBike power system will switch off automatically.

  • Page 8: Power Set

    Advanced Setting 1: Power Set The “Power Set” setting can be used to adjust the number of pedal assist levels. The recommended setting is the default on all Tower eBikes (0-5). This setting features 6 levels, with Level 0 being no pedal assist and Level 5 being the highest pedal assist ratio (96%). To change the number of assistance levels, select “Power Set”...

  • Page 9: Backlight Brightness

    Advanced Setting 6: Backlight Brightness Select “Backlight Set” to adjust the brightness of the display. The range for this setting is 1-3, with 3 being the brightest. The default value is 2. To change the backlight brightness settings, press the ​ U P ​ o r ​ D OWN ​ b utton to select the desired value.

  • Page 10: Appendix

    Appendix Figure 1- Default Pedal Assistance Levels Pedal Assist Level Pedal Assist Power Ratio Figure 2- Error Code Definitions Error Code Definition Current Abnormality Throttle Abnormality Motor Abnormality Motor Hall Abnormality Brake Abnormality Communication Abnormality Figure 3- Default Power Bar Settings Power Bar Level Voltage 40.0V...

  • Page 11: Recommended Pedal Assist Power Table

    Figure 4- Recommended Pedal Assist Power Table Figure 5- Connection Layout Switch Wiring Display-side Connector Display-side Adapter Figure 6- Line Sequence Table Line Sequence Color Function Red (VCC) Blue (K) Lock Black (GND) Green (RX) Yellow (TX)
