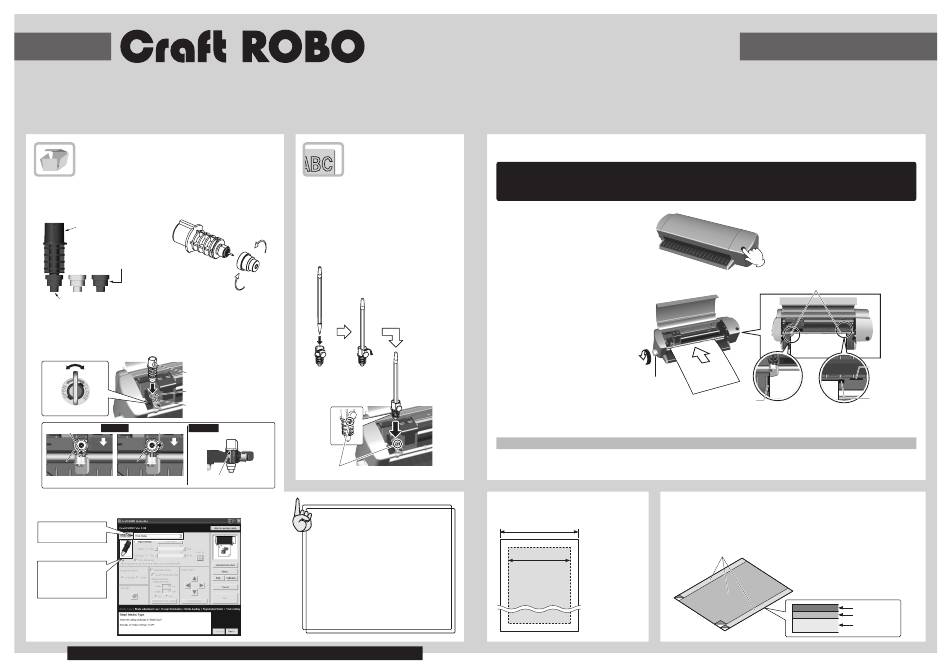

Graphtech Craft ROBO CC200-20 Setup Instruction page 2

1 1
The basic Craft ROBO operations
are described below.
Cutting
❑ Mounting the Blade Holder
Confirm that you have the following Attach a blade adjustment cap.
items supplied with your Craft ROBO.
Holder
Blade adjustment cap
·Blue (0.1 mm): Thin film
·Yellow (0.2 mm): Thick film, thin paper
·Red (0.3 mm): Thick paper such as a postcard
Blade
Mount the blade holder in the Craft ROBO.
If you are using media that does not require the carrier sheet, mount the blade
holder while making sure that the protrusion on the holder faces the front and that it
is aligned with the notch in the clamp bracket.
If you are using the carrier sheet, turn the protrusion on the holder 90 degrees to the
right so that it fits against the protrusion on the clamp bracket.
Protrusion on the holder
Loosen Tighten
Protrusion on the clamp bracket
Notch in the clamp bracket
Lock lever
Top view Side view
Protrusion on the holder Protrusion on the holder
Front Front
Holder Holder Holder Holder Holder Holder
When using media without When using the carrier sheet Firmly insert the blade holder until
the carrier sheet this face contacts the clamp bracket.
The most suitable blade adjustment cap is automatically displayed when the media
type is selected from the "Media Type" drop-down box in the Craft ROBO Controller.
Media Type selected
to be cut
The most suitable cap
color for the selected
Media Type is
displayed
Use the Media Trial Kit to learn how to operate the Craft ROBO.
Operation Manual
Test
Plotting
❑ Mounting
When using a ballpoint pen, select "Pen"
for "Media Type" in the Craft ROBO
Controller.
Loosen
When using a ballpoint pen, be
sure to use a narrow one. In
addition, confirm that the tip of
the pen protrudes 3 to 3.5 mm
Tighten
from the ballpoint pen holder.
Ballpoint pen
Please refer to the Craft ROBO
User's Manual (CD-ROM) for
further details on the ballpoint
pen types that can be used.
Loosen
Tighten
Ballpoint pen
holder
Note: In the diagram below,
the protrusion on the holder is
facing the front.
Align with the notch
Caution
● Be particularly careful with the
cutter blade when changing the
blade adjustment cap or mounting
the blade holder in the Craft ROBO.
● Graphtec does not guarantee the
cutting quality when non-genuine
Craft ROBO media is used.
Using non-standard media may void
the warranty.
2 2
Load a Sheet for Cutting or
Test Plotting.
❑ Load a sheet in the Craft ROBO
Note before using
Do not load media without a protective liner, or perform a cutting operation
when there is no media loaded, as this will damage the cutting mat.
● Press the standby switch to turn
on the power, and confirm that
the lamp on the standby switch is
lit (blue).
● Align the left edge of the sheet
with the vertical guideline
indented on the front guide.
Place the top edge of the sheet
against both pinch rollers,
making sure that the sheet is
straight.
● Turn the feed knob in the
direction toward the rear of the
Craft ROBO to feed the sheet
until its top edge is aligned with Feed knob
the rear edge of the cutting mat,
or with the indented guideline
located next to the cutting mat.
Setup is Complete
Note: Turn the feed knob to remove the sheet.
When cutting has been completed, press the standby switch and confirm that the lamp on the standby switch goes out.
❑ Media Sizes
Loadable sheet width
When loading an
210 mm to 260 mm
A4-size sheet, align
it with the guideline
indented on the
Craft ROBO's front
guide.
Cutting width
190 mm
(Max. 200 mm)
Place the top edge of the sheet
against both pinch rollers.
Guideline indented
on the front guide
To ensure that the loaded sheet is straight,
align the left edge of the sheet with the
guideline indented on the front guide.
❑ Carrier Sheet
To cut a sheet smaller than A4 size or a sheet without a
protective liner, affix it to the carrier sheet included with the
Craft ROBO before performing cutting.
Peel off the liner from the center of the
Liner
carrier sheet, and then affix the sheet for
cutting to the adhesive surface.
To cut regular A4-size media, peel off the
liner strips from both sides of the carrier
sheet as well prior to use.
Guideline located
next to the cutting
mat
Cutting mat
Liner
Adhesive
Paper backing
