Functions：
1.
Self-check while power
2.
Low battery
warning, it alarms when the battery of transmitter is lower than 8.4V.
3.
All channel reverse
4.
PPM signal shift
operation, the switching will only take effect while next time power on.
5.
Elevon and V-tail mixer build in.
mistake - switching during operation, the select switch will only take effect while next time power on.
6.
5 minutes timer
notice, buzzer will notice every 5 minutes (-. for 5 minutes, -.. for 10 minutes, -... for
15 minutes until -...... for 30 minutes, then circle it) when the timer switch is on.
7.
Trainer jack
for instructor (power on side) & student (power off side) training flight. Two EMI
ETX-41s must set the same shift for trainer operation. It works with all major R/C flight simulators.
Enjoy Model International Corp. (EMI)
on, Transmitter will alarm if any major function does not work properly.
switches.
( + & - ) for all major brand receivers. For avoiding mistake - switching during
Switch between Elevon, None or V-tail mixing setup. For avoiding

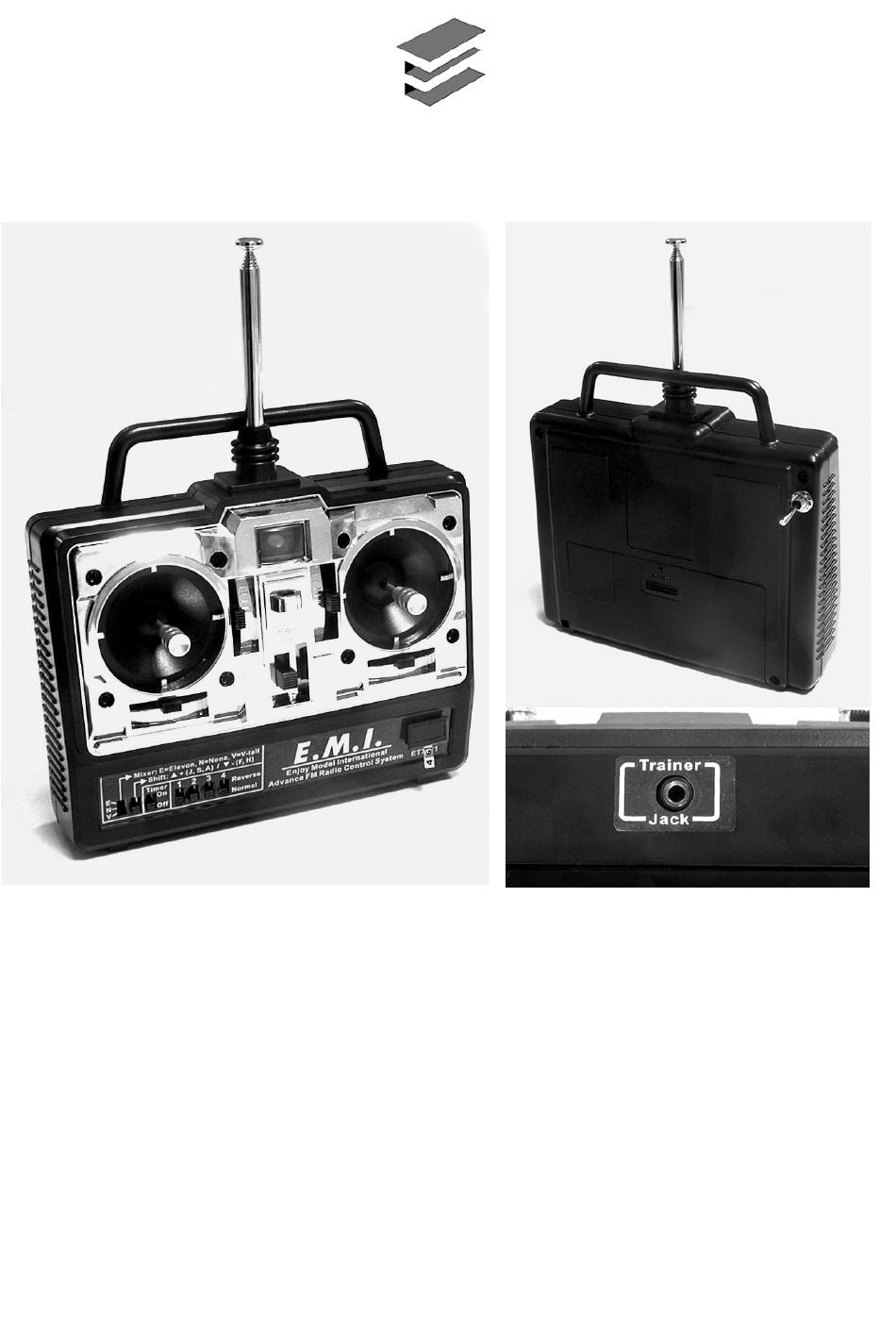

ETX-41
Advertisement
Summary of Contents for E.M.I. ETX-41
- Page 1 Enjoy Model International Corp. (EMI) ETX-41 Functions： Self-check while power on, Transmitter will alarm if any major function does not work properly. Low battery warning, it alarms when the battery of transmitter is lower than 8.4V. All channel reverse switches.
- Page 2 Layout of Mode 2 control type： Antenna Trainer switch (Located at back Power indicator of the transmitter) Main switch Carry handle CH 2 Trim lever CH 1, CH2 Control stick CH 1 trim lever CH 3, CH4 Control stick CH 3 trim lever Crystal socket CH 4 trim lever Mixer switch...
- Page 3 Functions and switches: (Please refer to above Diagram.) There are many functions and switches are built in this transmitter, the following show how they work. Self-check while power on: The transmitter will do Self-check while power is on, Transmitter will alarm “Bi”...
- Page 4 This instruction manual contains all information necessary for the proper installation and operation of the transmitter including add controls, adjustments and switched that may be operated or adjusted without resulting in a violation of the FCC rules. Warning: Any adjustment that could result in a violation of the rules or that is recommended to be performed by or under the immediate supervision and responsibility of a person certified as technically qualified to perform transmitter maintenance and repair duties in the private land mobile services and fixed services by an organization or committee representative of users of those services.
