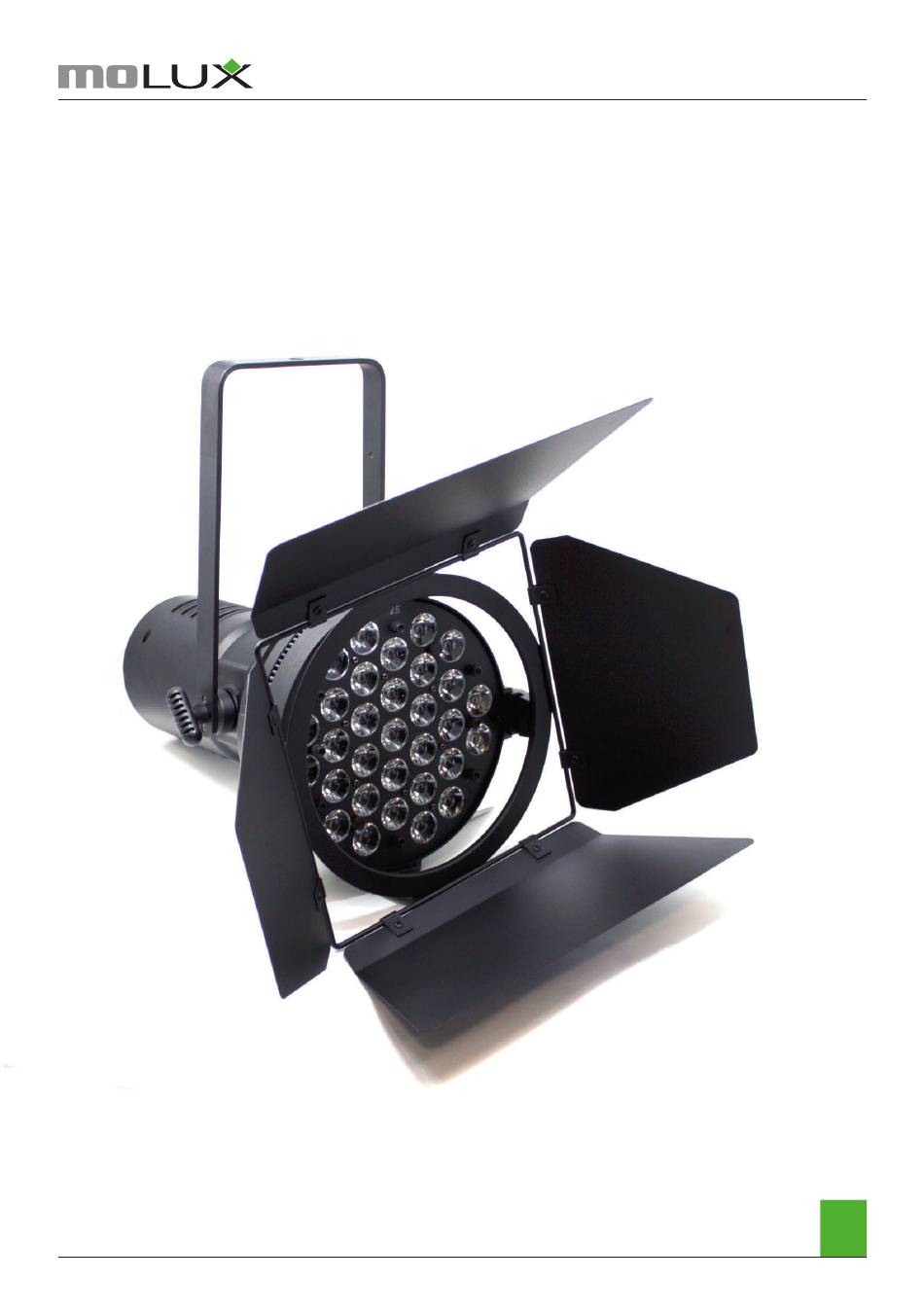

- Page 1 USER MANUAL LED Exhibition Light MOLUX XPO575 LED MOLUX XPO575 LED 6300K...
-
Page 2: Table Of Contents
INSTRUCTION DESCRIPTION OF THE DEVICE Profile Overview Spare parts Specification Safety warning INSTALLATION 1. Installation 2. Dmx512 connection 3. Connection with mains OPERATION 1. Description of the keys 2. Menu 3. Basic setting 4. Dmx protocol MOLUX XPO575 LED 6300K... -
Page 3: Installation Instructions
The device is suitable in the large-scale theatrical performance, the theater, the performance hall, the bar, nightclub and so on. The product conforms to the international standard DMX512 agreement completely; the device can be controlled in signal, and also be controlled in many units. MOLUX XPO575 LED 6300K... -
Page 4: Overview
● Color temperature: 3000K ~ 6500K optional ● Power Supply: AC100V-240V, 50HZ/60HZ ● Power consumption: 400w ● 2 DMX channels ● Small volume, lightweight ● High quality optical system ● Different lens available: 15/25/35° Spare parts MOLUX XPO575 LED 6300K... -
Page 5: Safety Warning
● For indoors use. ● Replace any visible cracked protective shield, filters and lens. ● The protective shield, filters and lens will require weekly cleaning as smoke “fluid tends to building up esidues, reducing the light” output very quickly. MOLUX XPO575 LED 6300K... -
Page 6: Installation
Insert the end in the quick link and tighten the fixation screw. A safety rope which already hold the strain of a crash or which is defective must not be used again. MOLUX XPO575 LED 6300K... -
Page 7: Dmx512 Connection
Step 1: Unscrew the fuse holder on the rear panel with a fitting screwdriver from the housing (anti-clockwise). Step 2: Remove the old fuse from the fuse holder. Step 3: Install the new fuse in the fuse holder. Step 4: Replacing the fuse holder in the housing and fix it. MOLUX XPO575 LED 6300K... -
Page 8: Operation
Hz: 30 Down Resetable : 0000 Power On Time Enter Fixture Total : 0000 Lamp On Time Hours Resetable : 0000 Lampe Strikes Firmware Ver: 20180117 Total : 0000 Enter Version S/N: 00001 Resetable : 0000 MOLUX XPO575 LED 6300K... -
Page 9: Basic Setting
In this menu it will show the total power on time, led power on time, and times for power on & off for the fixture. Each time has a total time and resettable time, the resettable time can be cleared by pressing the MENU & ENTER button for 5s. 4. Dmx protocol CHANNEL VALUE FUNCTION 0⁓255 Dimmer 0⁓255 Strobe MOLUX XPO575 LED 6300K...
