Entone RAP (Remote Antenna Package) Installation Guide
The Entone RAP (Remote Antenna Package) contains a radio frequency URC (Universal Remote
Control) and a TRAM (TV Remote Antenna Module). By installing the Entone RAP, you can
control the Entone STB in a remote room and enjoy TV service from Entone STB anywhere in
your home.
The Entone RAP contains the following components:
Entone RF URC
Entone radio frequency URC (Universal Remote
Control)
2 x AA size batteries for the URC
TV Remote Antenna Module
TRAM
1. TRAM Installation (in remote room)

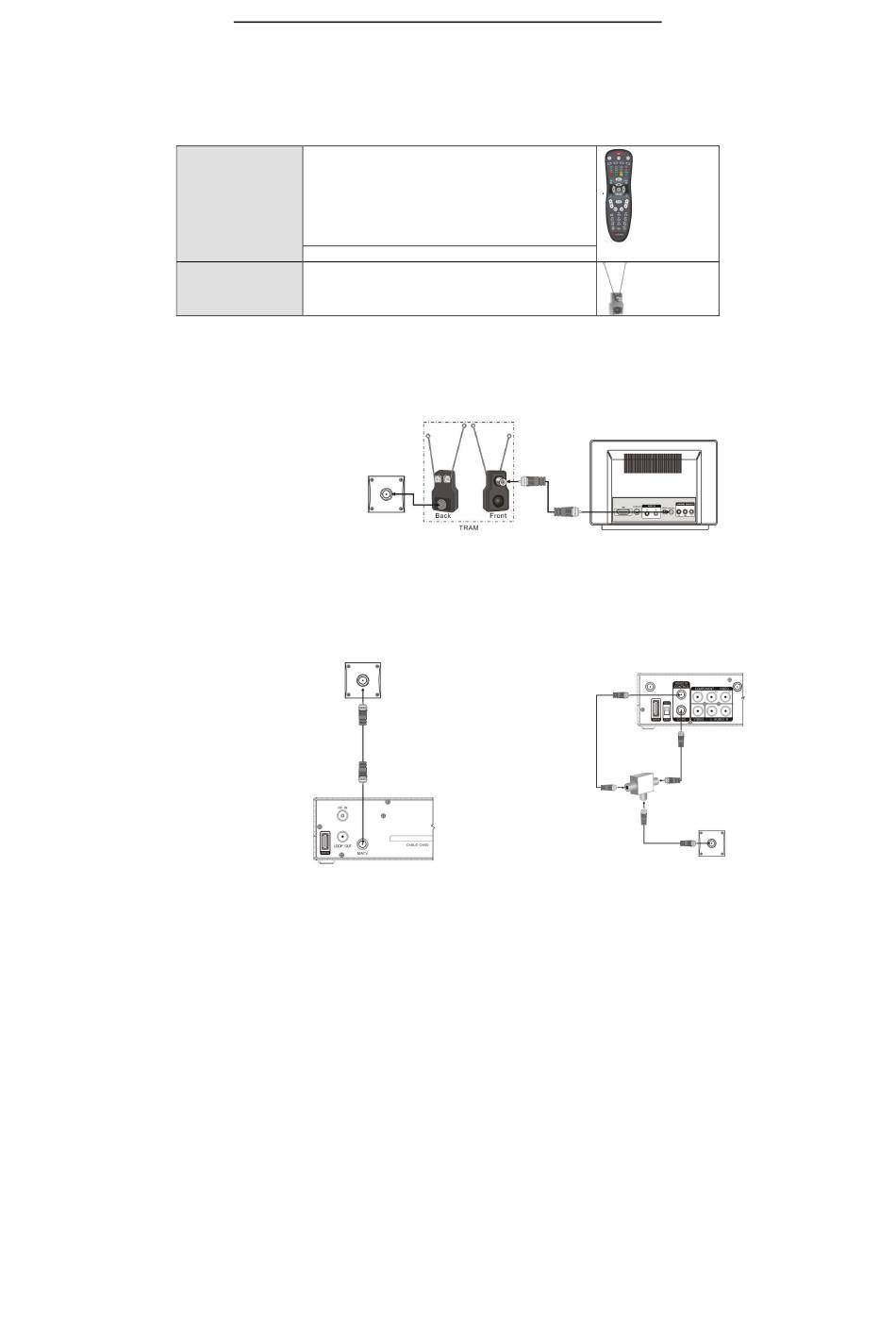

Please follow the following diagram to install the TRAM. The TRAM is used to enhance the URC
radio frequency transmission using the TV coax cable network in your home.
Plug the TRAM into the TV
coax network wall outlet.
Connect the TV coax cable
to the TRAM and the TV.
2. Connecting STB to the TV coax network
Connect the Entone STB to the TV coax network wall outlet according to whether you are using an
Entone Janus F1 or Amulet F1 STB.
2.1 Janus F1 Connection
Connect the Janus
F1 "MATV" output
to the TV coax
network as shown.
2.2
Amulet F1 Connection
Connect the Amulet
F1 "ANTENNA
OUTPUT" and
"COAX" output to
the TV coax network
as shown using a 3-
way splitter (which is
not provided).
Page 1
v3
