Conveyor System - Troubleshooting Guide
Introduction
Exploded View
Symptom Table

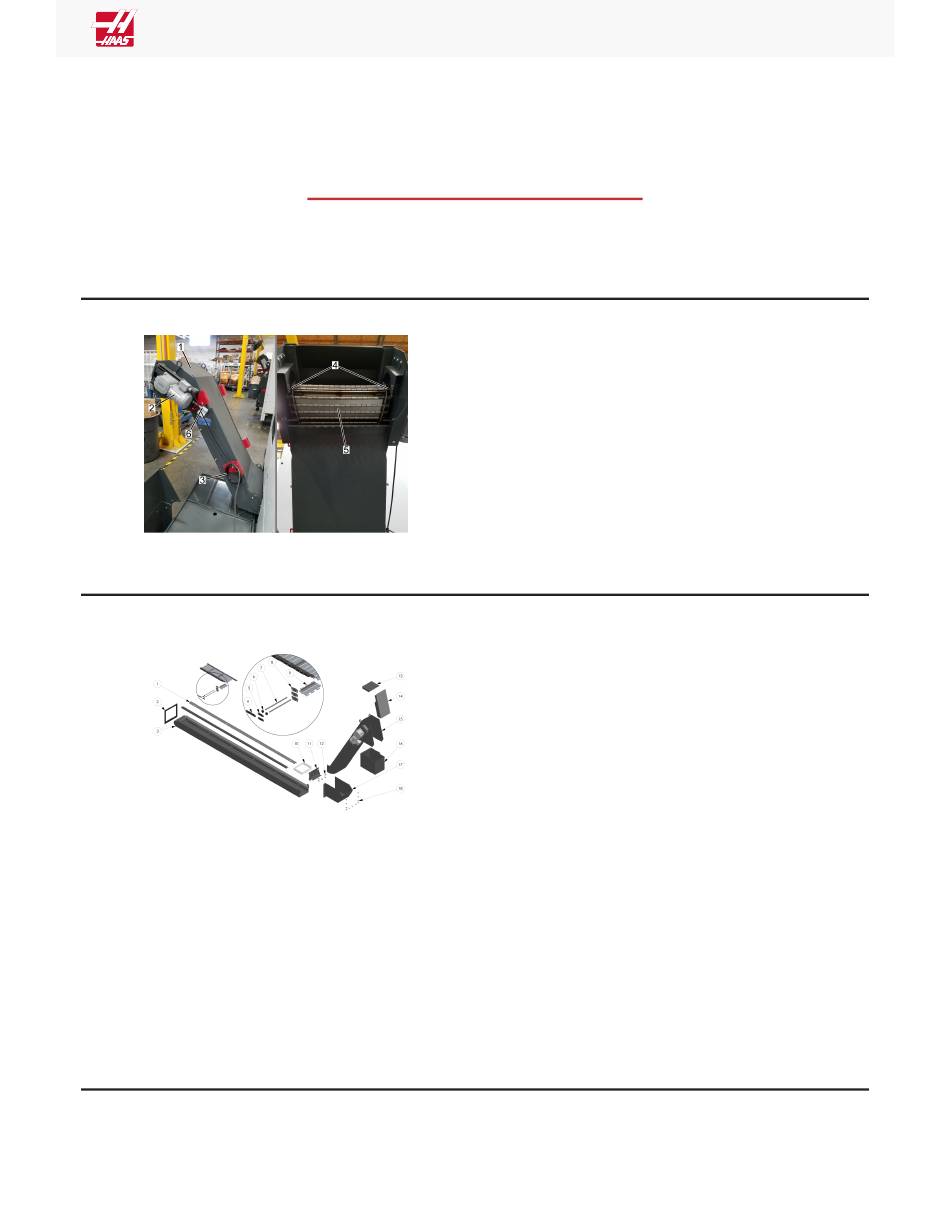

Conveyor System - Troubleshooting Guide
Page 1 of 5 pages
LAST UPDATED: 11/26/2018
1. Conveyor
2. Drive Motor
3. Power Cord
4. Conveyor Drive Shaft /Sprockets
5. Belt
6. Belt Tensioning Screws
1. CONVEYOR TROUGH COVER
2. GASKET
3. CONVEYOR TROUGH
4. DOUBLE CHAIN LINK OUTER
5. SINGLE CHAIN LINK OUTER
6. CHAIN SPACER
7. BELT PIN
8. CHAIN LINK INNER
9. BELT PLATE
10. CONVEYOR TUNNEL INSERT
11. CONVEYOR BRACKET
12. HHB 5/16-18 X 1
13. CONVEYOR RAMP COVER TOP
14. CONVEYOR RAMP COVER SIDE
15. CONVEYOR RAMP
16. CONVEYOR CHUTE
17. CONVEYOR TROUGH EXTENSION
18. BHCS 5/16-18 X 1 SS
Advertisement
Table of Contents
Summary of Contents for Haas Conveyor System
- Page 1 Conveyor System - Troubleshooting Guide LAST UPDATED: 11/26/2018 Conveyor System - Troubleshooting Guide Introduction 1. Conveyor 2. Drive Motor 3. Power Cord 4. Conveyor Drive Shaft /Sprockets 5. Belt 6. Belt Tensioning Screws Exploded View 1. CONVEYOR TROUGH COVER 2. GASKET 3.
- Page 2 Conveyor System - Troubleshooting Guide SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION Check for a short in the motor or the The circuit breaker is tripped. cable. Verify voltage at I/O PCB and the No power from I/O PCB to the motor.
- Page 3 Conveyor System - Troubleshooting Guide Voltage Corrective Action: Find the chip conveyor motor cable 140 at the I/O PCB. Press [CHIP FWD]. Use a multimeter with needle tip probes to measure the voltage between the black and red wires on the cable.
- Page 4 Conveyor System - Troubleshooting Guide Capacitor Corrective Action: Inspect the conveyor motor capacitor for damage. A damaged capacitor will usually have signs of deformation or bubbling on the capacitor casing. This could be caused by a short in the motor or in the cable.
-
Page 5: Electrical Diagram
Conveyor System - Troubleshooting Guide Belt Tension Corrective Action: Make sure the belt tension is correct. Refer to the decals on the side of the machine. The correct belt slack for Jorgensen conveyors is 0.25" - 0.38" (6 - 10 mm). The correct belt slack for Hennig conveyors is 0.12"...
