Summary of Contents for Accles & Shelvoke CASH Cowpuncher .22R

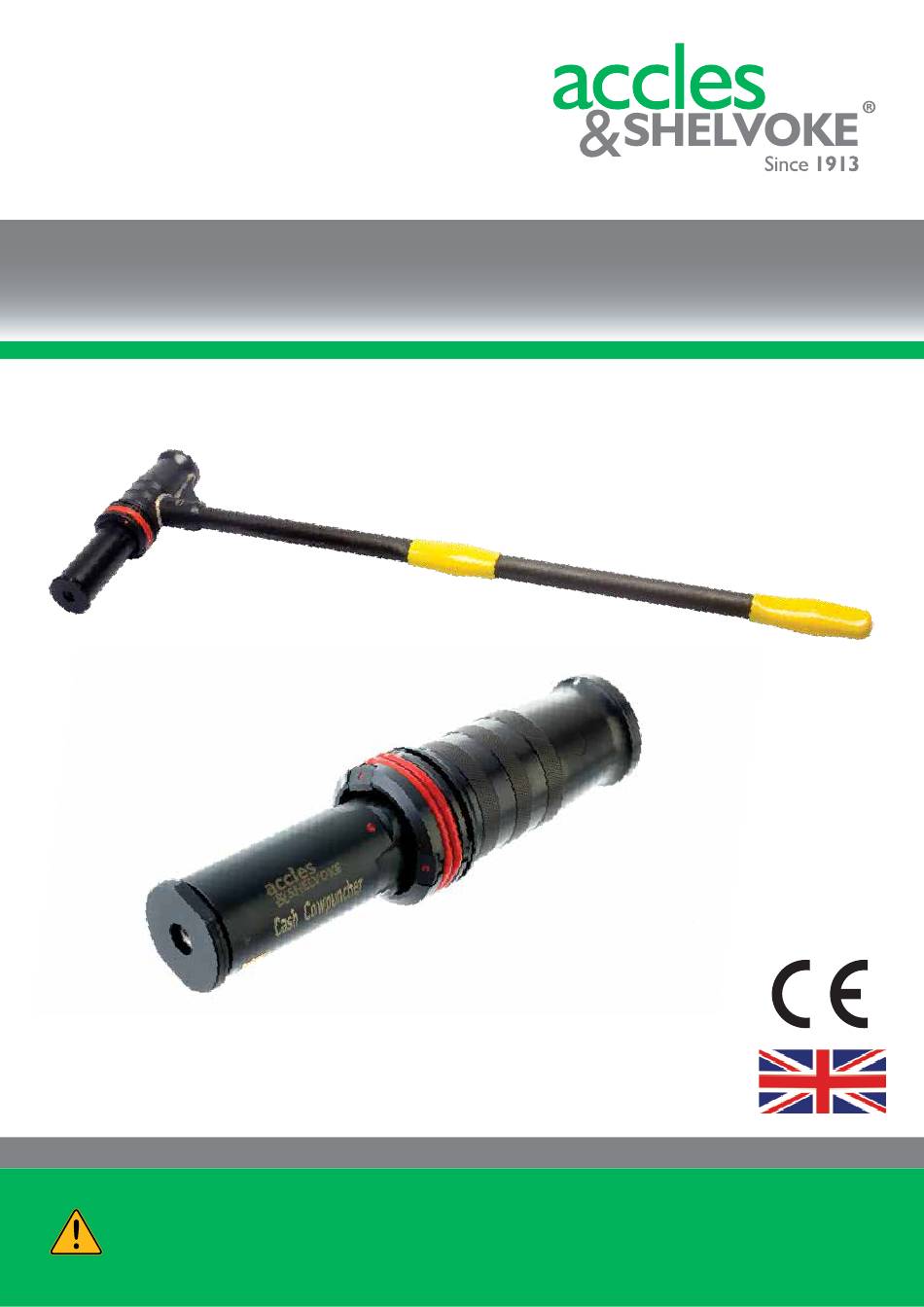

- Page 1 CASH Cowpuncher ® Original Instruction Manual ©2017 Accles & Shelvoke Ltd DO NOT ATTEMPT TO USE THESE STUNNING TOOLS UNTIL YOU HAVE READ AND UNDERSTAND THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
CASH Cowpuncher ® CONTENTS SECTION DESCRIPTION PAGES CONTENTS PRODUCT DESCRIPTION PRODUCT SPECIFICATION PRODUCT DIAGRAMS ANIMAL WELFARE EFFECTIVE STUNNING & CARTRIDGE SELECTION GENERAL SAFETY PRECAUTIONS SAFE OPERATING INSTRUCTIONS CLEANING & GENERAL MAINTENANCE TROUBLESHOOTING SERVICING SPARE PARTS LIST AND DIAGRAM CONTACT DETAILS, WARRANTY AND RECYCLING DECLARATION OF CONFORMITY CERTIFICATE DISCLAIMER This instruction manual is correct at the time of printing. -
Page 3: Product Description
4.5 GRAIN ( .25 GREEN ) 5414R CASH Cowpuncher .25R 0.25R 4.5 GRAIN ( .25 GREEN ) CASH Cowpuncher 5430 CASH Cowpuncher .22R LH 0.22R 4.5 GRAIN ( .22 BLACK ) 5432 CASH Cowpuncher .25 LH 0.25 4.5 GRAIN ( .25 GREEN ) 5432R CASH Cowpuncher .25R LH... -
Page 4: Product Specification
CASH Cowpuncher ® PRODUCT SPECIFICATION ATTRIBUTE STUNNER MODEL NUMBER 5413R 5414 5414R 5430 5432 5432R Length (mm) Width (mm) (At Widest Point) 2.8kg 2.8kg 2.8kg 4.1kg 4.1kg 4.1kg Weight (kg) * ‘A’ weighted Sound Pressure Level at workstation (dB) ‘A’ weighted Sound Power Level (dB) ‘C’... -
Page 5: Product Diagrams
CASH Cowpuncher ® PRODUCT DIAGRAMS CASH COWPUNCHER NEVER POINT THE MUZZLE END OF THE STUNNING TOOL AT YOURSELF OR ANY OTHER PERSON THE MAXIMUM GRAINS (GRN) AND Fig. 3.01 SERIAL NUMBER OF THE TOOL CAN BE FOUND ENGRAVED ON THE BARREL FIRING PIN CARTRIDGE CHAMBER BREECH... - Page 6 CASH Cowpuncher ® PRODUCT DIAGRAMS CUT-AWAY SECTION MODEL SHOWING BOLT FULLY RETRACTED CARTRIDGE BREECH BOLT FLANGE WASHER RED ‘O’ RINGS (x2) CLAW (x3) - NEVER USE THE TOOLS WITHOUT THE CLAWS RECUPERATOR SLEEVES (x8) BARREL STOP WASHERS (x3) MUZZLE Fig. 3.02 ©2016 Accles &...
- Page 7 CASH Cowpuncher ® PRODUCT DIAGRAMS DIAGRAM SHOWING TOOL IN COCKED AND READY TO FIRE POSITION RED ‘O’ RINGS (x2) RED INDICATOR DOT ON CLAW CLAW (x3) - NEVER USE THE TOOLS WITHOUT THE CLAWS RED INDICATOR DOT ON BARREL WHEN RED DOTS ARE ALIGNED AS SHOWN, TOOL IS COCKED AND READY TO FIRE BARREL...
-
Page 8: Animal Welfare
CASH Cowpuncher ® ANIMAL WELFARE Improving the protection of animals at the time of slaughter contributes to higher meat quality. EU Only - in accordance with EU Council Regulation (EC) Number 1099/2009 on the protection of animals at the time of killing, animals must be spared any avoidable pain, distress or suffering during their killing and related operations. -
Page 9: Effective Stunning & Cartridge Selection
CASH Cowpuncher ® EFFECTIVE STUNNING AND CARTRIDGE SELECTION This section provides a guide to the correct stunning position and direction for certain animals, and helps you to select the correct cartridge for that animal. The cartridge selection information provided within this section of this instruction manual is not categorical and is hence supplied as guidance only. - Page 10 CASH Cowpuncher ® EFFECTIVE STUNNING AND CARTRIDGE SELECTION CORRECT STUNNING POSITION CATTLE Fig. 5.02 Fig. 5.01 S U G G E S T E D T O O L S A N D C A R T R I D G E S .22”...
- Page 11 CASH Cowpuncher ® EFFECTIVE STUNNING AND CARTRIDGE SELECTION CORRECT STUNNING POSITION PIGS Fig. 5.04 Fig. 5.03 S U G G E S T E D T O O L S A N D C A R T R I D G E S .22”...
- Page 12 CASH Cowpuncher ® EFFECTIVE STUNNING AND CARTRIDGE SELECTION OTHER ANIMAL SPECIES Although Accles & Shelvoke CASH Cowpuncher stunning tools are predominantly used for the stunning of cattle and pigs for meat production, we know from our 100 year history that they are also used for other animal species, such as, but not limited to: Mammals such as: Equines...
- Page 13 PURPLE GREEN BLACK CALIBRE CODE 5413R CASH Cowpuncher .22R . 22” 5430 CASH Cowpuncher .22 LH To order your .22” calibre cartridges, please select the appropriate part number from the table below: PART NUMBERS FOR .22” CARTRIDGES BY QUANTITY 50 IN A TIN...
- Page 14 CASH Cowpuncher ® EFFECTIVE STUNNING AND CARTRIDGE SELECTION STUNNING TOOL & CARTRIDGE COMPATABILITY -: .25” CALIBRE 1.25 GRAIN GRAIN GRAIN GRAIN GRAIN GRAIN PRODUCT DESCRIPTION PINK YELLOW BLUE ORANGE BLACK GREEN CALIBRE CODE 5414 CASH Cowpuncher .25 5414R CASH Cowpuncher .25R .25”...
- Page 15 CASH Cowpuncher ® EFFECTIVE STUNNING AND CARTRIDGE SELECTION KEY PARAMETERS FOR CARTRIDGE SELECTION The tables on this page detail the key performance parameters for the CASH Cowpuncher range of tools when used in conjunction with approved Accles & Shelvoke cartridges. This information is issued to satisfy the requirements of EU Council Regulation (EC) Number 1099/2009 on the protection of animals at the time of killing.
-
Page 16: General Safety Precautions
CASH Cowpuncher ® GENERAL SAFETY PRECAUTIONS DANGER ONLY COCK THE TOOL READY FOR FIRING IMMEDIATELY BEFORE USE IF DROPPED WHEN COCKED THIS TOOL COULD CAUSE SERIOUS INJURY OR DEATH DO NOT ATTEMPT TO USE THIS STUNNING TOOL UNTIL YOU HAVE READ AND UNDERSTOOD THESE INSTRUCTIONS. - Page 17 CASH Cowpuncher ® GENERAL SAFETY PRECAUTIONS ALWAYS WEAR THE CORRECT PERSONAL PROTECTIVE EQUIPMENT (PPE) WHENEVER YOU ARE WORKING WITH, CLEANING OR MAINTAINING YOUR COWPUNCHER TOOL. ALWAYS WEAR PROTECTIVE GLASSES AND HEARING PROTECTION. THE CORRECT FOOT PROTECTION MUST BE WORN. THERE IS A RISK THAT IF THE TOOL IS DROPPED, THE BOLT MAY PENETRATE THE FOOT OF THE TOOL USER.
- Page 18 CASH Cowpuncher ® GENERAL SAFETY PRECAUTIONS ALWAYS WEAR THE CORRECT PERSONAL PROTECTIVE EQUIPMENT (PPE) WHENEVER YOU ARE WORKING WITH, CLEANING OR MAINTAINING YOUR COWPUNCHER TOOL. ALWAYS WEAR PROTECTIVE GLASSES AND HEARING PROTECTION. THE CORRECT FOOT PROTECTION MUST BE WORN. THERE IS A RISK THAT IF THE TOOL IS DROPPED, THE BOLT MAY PENETRATE THE FOOT OF THE TOOL USER.
- Page 19 CASH Cowpuncher ® GENERAL SAFETY PRECAUTIONS ALWAYS WEAR THE CORRECT PERSONAL PROTECTIVE EQUIPMENT (PPE) WHENEVER YOU ARE WORKING WITH, CLEANING OR MAINTAINING YOUR COWPUNCHER TOOL. ALWAYS WEAR PROTECTIVE GLASSES AND HEARING PROTECTION. THE CORRECT FOOT PROTECTION MUST BE WORN. THERE IS A RISK THAT IF THE TOOL IS DROPPED, THE BOLT MAY PENETRATE THE FOOT OF THE TOOL USER.
-
Page 20: Safe Operating Instructions
CASH Cowpuncher ® SAFE OPERATING INSTRUCTIONS DO NOT ATTEMPT TO USE THIS STUNNING TOOL UNTIL YOU HAVE READ AND UNDERSTOOD THESE INSTRUCTIONS. ALWAYS WEAR THE CORRECT PERSONAL PROTECTIVE EQUIPMENT (PPE) WHENEVER YOU ARE WORKING WITH, CLEANING OR MAINTAINING YOUR COWPUNCHER TOOL. ALWAYS WEAR PROTECTIVE GLASSES AND HEARING PROTECTION. - Page 21 CASH Cowpuncher ® SAFE OPERATING INSTRUCTIONS LOADING ALWAYS POINT THE TOOL AWAY FROM YOUR BODY AND AWAY FROM ANY OTHER PERSON IN THE VICINITY WHEN HANDLING OR OPERATING THE TOOL Obtain a single cartridge, and load the cartridge into the cartridge chamber crimped end first (Fig 7.04) Keep the muzzle pointing downward when loading to prevent the cartridge falling out of the breech (7.05) NOTE Only load the cartridge immediately before firing...
- Page 22 CASH Cowpuncher ® SAFE OPERATING INSTRUCTIONS MAKE READY FOR FIRING ALWAYS POINT THE TOOL AWAY FROM YOUR BODY AND AWAY FROM ANY OTHER PERSON IN THE VICINITY WHEN HANDLING OR OPERATING THE TOOL With the tool facing away from you and the barrel pointing downward, slot the barrel back into the breech cap (FIG 7.08) Ensure cap is slid fully down onto the barrel (FIG 7.09) Rotate cap through 60°...
- Page 23 CASH Cowpuncher ® SAFE OPERATING INSTRUCTIONS FIRE ALWAYS POINT THE TOOL AWAY FROM YOUR BODY AND AWAY FROM ANY OTHER PERSON IN THE VICINITY WHEN HANDLING OR OPERATING THE TOOL Hold the assembled tool vertically by the cap using only one hand (FIG 7.11) Without touching the animals head align the muzzle of the tool into the correct position above the target animals head When aligned correctly, tap the tool downward onto the animals head - THE TOOL WILL...
- Page 24 CASH Cowpuncher ® SAFE OPERATING INSTRUCTIONS EXTRACTION ALWAYS POINT THE TOOL AWAY FROM YOUR BODY AND AWAY FROM ANY OTHER PERSON IN THE VICINITY WHEN HANDLING OR OPERATING THE TOOL Hold the tool on the barrel, ensure your hand is below the bottom lobes so that the red dots are visible (FIG 7.13) Using other hand rotate cap through 60°...
-
Page 25: Cleaning & General Maintenance
CASH Cowpuncher ® CLEANING & GENERAL MAINTENANCE DO NOT ATTEMPT TO USE THIS STUNNING TOOL UNTIL YOU HAVE READ AND UNDERSTOOD THESE INSTRUCTIONS. ALWAYS WEAR THE CORRECT PERSONAL PROTECTIVE EQUIPMENT (PPE) WHENEVER YOU ARE WORKING WITH, CLEANING OR MAINTAINING YOUR COWPUNCHER TOOL. ALWAYS WEAR PROTECTIVE GLASSES AND HEARING PROTECTION. - Page 26 CASH Cowpuncher ® CLEANING & GENERAL MAINTENANCE ALWAYS POINT THE TOOL AWAY FROM YOUR BODY AND AWAY FROM ANY OTHER PERSON IN THE VICINITY WHEN HANDLING OR OPERATING THE TOOL CLEANING DAILY - CASH Cowpuncher Remove cap from barrel and ensure stunner is not loaded. Unscrew muzzle from barrel - NOTE! If the muzzle is too tight and will not unscrew, grip the barrel around the lugs in a soft jaw vice and unscrew the muzzle with the spanner provided.
-
Page 27: Troubleshooting
CASH Cowpuncher ® TROUBLESHOOTING ONLY PERSONNEL WHO HAVE BEEN AUTHORISED TO DO SO SHOULD CONDUCT ANY RECTIFICATION INDENTIFIED IN THIS TROUBLESHOOTING SECTION ALWAYS WEAR THE CORRECT PERSONAL PROTECTIVE EQUIPMENT (PPE) WHENEVER YOU ARE WORKING WITH, CLEANING OR MAINTAINING YOUR COWPUNCHER TOOL. ALWAYS WEAR PROTECTIVE GLASSES AND HEARING PROTECTION. - Page 28 CASH Cowpuncher ® TROUBLESHOOTING ALWAYS POINT THE TOOL AWAY FROM YOUR BODY AND AWAY FROM ANY OTHER PERSON IN THE VICINITY WHEN HANDLING OR OPERATING THE TOOL SAFE MISFIRE REMOVAL If the cartridge does not fire, follow the procedure below Holding the tool with the muzzle pointing away from you or any other person, do nothing and wait for at least 30 seconds before continuing Turn the cap counter-clockwise to unalign red dots, then pull the barrel away from the cap until the cap parts...
-
Page 29: Servicing
CASH Cowpuncher ® SERVICING DO NOT ATTEMPT TO USE THIS STUNNING TOOL UNTIL YOU HAVE READ AND UNDERSTOOD THESE INSTRUCTIONS. ONLY PERSONNEL WHO HAVE BEEN AUTHORISED TO DO SO SHOULD CONDUCT ANY RECTIFICATION INDENTIFIED IN THIS SECTION ALWAYS WEAR THE CORRECT PERSONAL PROTECTIVE EQUIPMENT (PPE) WHENEVER YOU ARE WORKING WITH, CLEANING OR MAINTAINING YOUR COWPUNCHER TOOL. -
Page 30: Spare Parts List And Diagram
CASH Cowpuncher ® SPARE PARTS LIST AND DIAGRAM ONLY EVER USE GENUINE ACCLES & SHELVOKE REPLACEMENT PARTS. NOT USING GENUINE PARTS MAY LEAD TO PREMATURE COMPONENT AND TOOL FAILURE, WHICH COULD ENDANGER THE OPERATOR AND THOSE IN THE IMMEDIATE VICINITY. IT WILL ALSO INVALIDATE OUR ORIGINAL EQUIPMENT WARRANTY. ACCLES &... -
Page 31: Contact Details, Warranty And Recycling
CASH Dispatch Kit CONTACT DETAILS, WARRANTY AND RECYCLING Contact us today to find out how Accles & Shelvoke can help your current or future stunning requirements. For customers based in Canada and USA:- Accles & Shelvoke, 773 Victory Highway, West Greenwich, Rhode Island 02817, USA. Website: Email: info@accles-shelvoke.com www.accles-shelvoke.com... - Page 32 Product Description LABEL HERE declared under this 5414 CASH Cowpuncher .25 Certificate Number: 5414R CASH Cowpuncher .25R 5430 CASH Cowpuncher .22R LH 5432 CASH Cowpuncher .25 LH NOTE 5432R CASH Cowpuncher .25R LH Serial number: APPLY SERIAL NUMBER LABEL HERE...
