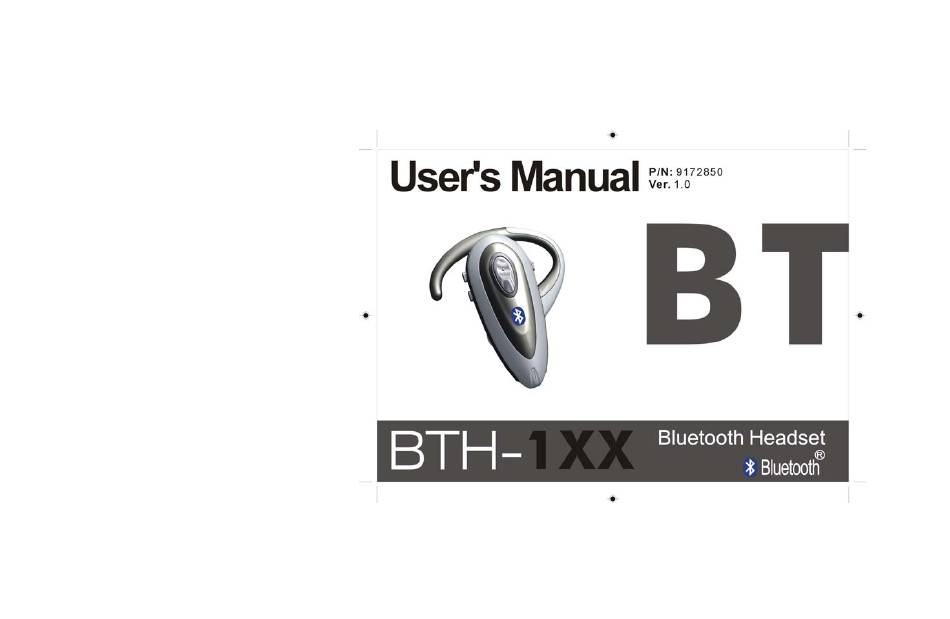

Summary of Contents for G-Tek BTH-1 series
-
Page 2: Table Of Contents
Table of Contents Introduction………………………….…………………………………………………….3 BTH-1XX series Overview…………………….………………………………………….5 Basic Information To Know……….…….……………………………………………..6 Connecting Your BTH-1XX…………..………………………………..………………… 9 Using Your BTH-1XX……………..……………………………………………………. 12 Troubleshooting…..……………………………………………………………………...17 First edition (December 2004) Corrections, changes and improvements to this manual might be made at any time and without notice. Such update will, however, might be incorporated into new edition of this manual. - Page 3 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
-
Page 4: Introduction
A. Introduction Thank you for purchasing the BTH-1XX Family Bluetooth headset. This BTH-1XX model enables convenient cordless communication with mobile phones and Bluetooth devices that are compliant with Bluetooth version 1.1 (or higher) and support the headset profile or hands free profile. Bluetooth technology make wireless link between any compatible mobile and stationary communication devices. - Page 5 What is inside the Box? BTH-1XX headset * 1 Charging Jack adapter *1 ( This jack adapter provides interoperability with AC adapter Models from Nokia listed on your gift box Flannelette Bag * 1 User’s Manual * 1 Quick Start Guide * 1 Switching AC Power Adapter * 1 (Optional) BTH-1XX Headset Flannelette Bag...
-
Page 6: Bth-1Xx Series Overview
B. BTH-1XX Overview Power/Talk/Pairing Receiver Hook bearing Button Line Switch Volume Switch Detachable Swivel Style ear hook LED Indicator (Select L1/L2/L3) “+”Vol up “--“ Vol down Front view Back view Left view Right view Microphone Charging Jack Top view Bottom view... -
Page 7: Basic Information To Know
C. Basic information to know C.1 Specifications of your BTH-1XX Bluetooth Headset ● Bluetooth : Bluetooth V1.1 compliance, Class II ● RF Frequency: ISM Band 2.40G~2.4835GHz ● Profile : Headset Profile 1.1; Hands free profile ● Weight : 15.5 grams ●... - Page 8 C.4 Signals of your BTH-1XX Headset Status LED Indicator Headset Status Signal Tones Power Off Power ON/OFF 2 short beep Battery Low Flashes red every 3 seconds Battery Low 1 short beep tone every 5 min. Standby Mode Flashes blue every 3 seconds Incoming Call Musical ring tone Talk Mode...
- Page 9 C.5 Getting a Prefect Fit C.6.1 Swivel the ear hook to change for wearing on left or right ear Right ear wearing Open the ear hook 90 degree Swivel ear hook 180 degree Close the ear hook to the headset body by rounding hook bearing toward to the body Left ear wearing...
-
Page 10: Connecting Your Bth-1Xx
D. Connecting your BTH-1XX D.1 Turning your headset ON and OFF D.1.1 To turn your BTH-1XX on: Ensure that the AC Adapter is not plugged in. Press the “Talk” button firmly, The LED indicator will flash blue every 3 seconds while the headset is turned on. And if you place the headset near ear, two short beep tones can be heard when headset is on. - Page 11 D.1.2 To turn your BTH-1XX off Press and hold the “Talk” button firmly for at least 3 seconds until the LED indicator light emits a very short burst of flashes. In the meantime, two short beep tones would be heard if headset is placed near ear. Without delay, release the button.
- Page 12 another, it means that you are in pairing mode. Then you can release the button. If you wear the headset, you will hear 3 short beep tones when enter pairing mode After searching for a while, your other under pairing mode device (e.g. mobile phone) should list model name of this headset, e.g.
-
Page 13: Using Your Bth-1Xx
talk button of headset to initialize the link again. 2. If pairing idles a period of time, approximately 120 seconds, headset will go to deep sleep mode. And all previous pairing( if any) in the set Line will be vanished. E. - Page 14 For BTH-1XX, as long as your mobile phone Bluetooth is on and has been stored ID in one of the line of the headset, the phone link of dialing mobile phone and headset will be established no matter which Line switch are selected in the BTH-1XX * If your call is not answered, you must end the call as described in Ending a call *.
- Page 15 recognition with BTH headset. E.2 Ending a call To end a call: Use the key(s) as specified by your phone manufacturer. Or you can press the “talk” button on the headset. The LED indicator light on the headset should now resume to the standby mode.
- Page 16 E.3.2 From Keypad Answer the call by pressing your phone keypad. The according keypads vary by different answering mode and phone model. After your call, end it as described in ending a call. E3.3 First come, first serve If BTH-1XX has been paired with different device in different Line, it will serve the first incoming call while more than one call received on paired device at about same time.
- Page 17 E.5 Transferring sound from phone to headset When place a call with your mobile phone, the call can be transferred to headset by pressing the talk button of headset if headset is on, paired with phone and within radius of each other. Please refer your phone manufacturer’s user documentation for details E.6 Adjust speaker volume and Mute microphone E 6.1 Adjust speaker volume...
-
Page 18: Troubleshooting
To extend battery life, BTH-1XX headset will go to deep sleep mode after idles in standby mode for 2 hours. While in deep sleep mode, you have to press talk button on headset to activate link with phone when receive call. F. - Page 19 of each other without solid objects, such as walls of furniture, in between. *Some mobile phone can support only one Bluetooth headset. Disconnection might happen when there is more than one headset paired with such phone. *Your phone might only look up the last paired headset for phone link. BTH-1XX will go to deep sleep mode after idle in standby mode for 2 After idle for some time, my BTH-1XX does hours.
- Page 20 *Line switch is re-selected during pairing mode. * Record all the voice tags through the headset instead of through your Voice command not working properly phone, to “train” your phone for the voice recognition with the headset. There is an interfering signal nearby. Or you have exceeded the 10 m Cracking noise (30 ft.) wireless range.
- Page 21 Additional safety information -Do not attempt to disassemble your product. The product does not contain consumer serviceable Guidelines for safe and efficient use or replaceable components. Unauthorized disassembly may damage the headset and warranty will Note: Read this information before using your Bluetooth headset be void.
- Page 22 Driving Aircraft Check the law and regulations on the use of mobile phones and hands free equipment in the areas Turn your headset OFF before boarding any aircraft. To prevent interference with where your drive. communication systems, you must not use your Bluetooth while the plane is in the air.
- Page 23 Power supply -The battery can only be charged in a temperature between -10°C(14° F) to 45°C(113° F) -For maximum battery capacity, use the battery in room temperature. The capacity -Connect the AC power adapter only to designated power sources as marked on the product. of battery might be reduced if the battery is used in a low temperature environment.
